Safety Light Curtain
last update: April 1, 2021
Application | Detection
capability |
Beam gap | Operating range | Protective height
(mm) |
Model | |
---|---|---|---|---|---|---|
PNP output | NPN output | |||||
Hand protection | Dia. 25 mm | 20 mm | 0.2 to 7 m | 185 to 1,105 | F3SJ-E[][][][]P25 * | F3SJ-E[][][][]N25 |
Please contact our sales representative.
Model | Number of beams | Protective height [mm] *2 | |
---|---|---|---|
PNP output *1 | NPN output | ||
F3SJ-E0185P25 | F3SJ-E0185N25 | 8 | 185 |
F3SJ-E0225P25 | F3SJ-E0225N25 | 10 | 225 |
F3SJ-E0305P25 | F3SJ-E0305N25 | 14 | 305 |
F3SJ-E0385P25 | F3SJ-E0385N25 | 18 | 385 |
F3SJ-E0465P25 | F3SJ-E0465N25 | 22 | 465 |
F3SJ-E0545P25 | F3SJ-E0545N25 | 26 | 545 |
F3SJ-E0625P25 | F3SJ-E0625N25 | 30 | 625 |
F3SJ-E0705P25 | F3SJ-E0705N25 | 34 | 705 |
F3SJ-E0785P25 | F3SJ-E0785N25 | 38 | 785 |
F3SJ-E0865P25 | F3SJ-E0865N25 | 42 | 865 |
F3SJ-E0945P25 | F3SJ-E0945N25 | 46 | 945 |
F3SJ-E1025P25 | F3SJ-E1025N25 | 50 | 1,025 |
F3SJ-E1105P25 | F3SJ-E1105N25 | 54 | 1,105 |
Type | Appearance | Specifications | Model | Remarks |
---|---|---|---|---|
G7SA Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 4
Contact type: 2A2B Rated switch load: 250 VAC 6A, 30 VDC 6A |
G7SA-2A2B | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 4
Contact type: 3NO+1NC Rated switch load: 250 VAC 6A, 30 VDC 6A |
G7SA-3A1B | |||
G7S-[]-E Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 6
Contact type: 4NO+2NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-4A2B-E | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 6
Contact type: 3NO+3NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-3A3B-E |
Appearance | Output | Model |
---|---|---|
![]() |
Laser Pointer for F3SJ | F39-PTJ |
Appearance | Model |
---|---|
![]() |
F39-HB[][][][] * |
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-PB[][][][] *1 | 2 Light Curtain brackets
4 mounting brackets 0 to 4 intermediate brackets for backside mounting (quantity required for the sensing width) 0 to 4 intermediate brackets for mounting to the sides (quantity required for the sensing width) |
F39-PB[][][][]-S *1 *2 | 1 Light Curtain bracket
2 mounting brackets 0 to 2 intermediate brackets for backside mounting (quantity required for the sensing width) 0 to 2 intermediate brackets for mounting to the sides (quantity required for the sensing width) |
Diameter | Model |
---|---|
14mm dia. | F39-TRD14 |
20mm dia. | F39-TRD20 |
25mm dia. | F39-TRD25 |
30mm dia. | F39-TRD30 |
Appearance | Applicable light curtain | Column height | Model |
---|---|---|---|
F3SJ Series
Safety Light Curtain |
|||
![]() 15% shorter than the rating) |
Protective height up to 0880 | 990 mm | F39-SML0990 |
Protective height up to 1200 | 1,310 mm | F39-SML1310 | |
Protective height up to 1520 | 1,630 mm | F39-SML1630 | |
Protective height up to 1840 | 1,950 mm | F39-SML1950 |
Appearance | Specifications | Model | Application | Remarks |
---|---|---|---|---|
![]() |
Top/bottom
bracket |
F39-LJB1 | Top/bottom bracket for F3SJ-E/B | 2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Intermediate
bracket |
F39-LJB2 *1 *2 | In combination use with top/bottom
bracket for F3SJ-E/B Can be used as free-location bracket. |
1 set with 2 pieces |
![]() |
One-touch
bracket |
F39-LJB3-M6 *1 | One-touch bracket for F3SJ-E/B
Supports M6 slide nut for aluminum frame. |
1 set with 2 pieces |
F39-LJB3-M8 *2 | One-touch bracket for F3SJ-E/B
Supports M8 slide nut for aluminum frame. |
|||
![]() |
One-touch M6
bracket One-touch M8 bracket |
F39-LJB3-M6K *1 | Bracket to mount an intermediate
bracket to the aluminum frame with a single touch. |
Hexagon socket head
cap screws (M6 x 10) are included. |
F39-LJB3-M8K *2 | Hexagon socket head
cap screws (M8 x 14) are included. |
|||
![]() |
Compatible
mounting bracket |
F39-LJB4 | Mounting bracket used when
replacing existing area sensors (F3SJ-A or F3SN) with the F3SJ-E/B. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Contact mount
bracket |
F39-LJB5 | Bracket to closely contact the back
side of the Sensor. |
2 for an emitter,
2 for a receiver, total of 4 per set |
Application | Detection
capability |
Beam gap | Operating
range |
Protective height
(mm) |
Model | |
---|---|---|---|---|---|---|
PNP output | NPN output | |||||
Hand protection | Dia. 25 mm | 20 mm | 0.2 to 7 m | 185 to 2,065 | F3SJ-B[][][][]P25 *1 | F3SJ-B[][][][]N25 |
Hand protection | Dia. 25 mm | 20 mm | 0.2 to 7 m | 185 to 2,065 | F3SJ-B[][][][]P25-01TS *2 | --- |
Environmental resistance | Dia. 25 mm | 20 mm | 0.2 to 6 m | 225 to 1,985 | F3SJ-B[][][][]P25-02TS *2 | --- |
Please contact our sales representative.
Model | Number of beams | Protective height
[mm] * |
|||
---|---|---|---|---|---|
PNP output | NPN output | PNP output | NPN output | ||
F3SJ-B0185P25 | F3SJ-B0185N25 | F3SJ-B0185P25-01TS | - | 8 | 185 |
F3SJ-B0225P25 | F3SJ-B0225N25 | F3SJ-B0225P25-01TS | F3SJ-B0225P25-02TS | 10 | 225 |
F3SJ-B0305P25 | F3SJ-B0305N25 | F3SJ-B0305P25-01TS | F3SJ-B0305P25-02TS | 14 | 305 |
F3SJ-B0385P25 | F3SJ-B0385N25 | F3SJ-B0385P25-01TS | F3SJ-B0385P25-02TS | 18 | 385 |
F3SJ-B0465P25 | F3SJ-B0465N25 | F3SJ-B0465P25-01TS | F3SJ-B0465P25-02TS | 22 | 465 |
F3SJ-B0545P25 | F3SJ-B0545N25 | F3SJ-B0545P25-01TS | F3SJ-B0545P25-02TS | 26 | 545 |
F3SJ-B0625P25 | F3SJ-B0625N25 | F3SJ-B0625P25-01TS | F3SJ-B0625P25-02TS | 30 | 625 |
F3SJ-B0705P25 | F3SJ-B0705N25 | F3SJ-B0705P25-01TS | F3SJ-B0705P25-02TS | 34 | 705 |
F3SJ-B0785P25 | F3SJ-B0785N25 | F3SJ-B0785P25-01TS | F3SJ-B0785P25-02TS | 38 | 785 |
F3SJ-B0865P25 | F3SJ-B0865N25 | F3SJ-B0865P25-01TS | F3SJ-B0865P25-02TS | 42 | 865 |
F3SJ-B0945P25 | F3SJ-B0945N25 | F3SJ-B0945P25-01TS | F3SJ-B0945P25-02TS | 46 | 945 |
F3SJ-B1025P25 | F3SJ-B1025N25 | F3SJ-B1025P25-01TS | F3SJ-B1025P25-02TS | 50 | 1,025 |
F3SJ-B1105P25 | F3SJ-B1105N25 | F3SJ-B1105P25-01TS | F3SJ-B1105P25-02TS | 54 | 1,105 |
F3SJ-B1185P25 | F3SJ-B1185N25 | F3SJ-B1185P25-01TS | F3SJ-B1185P25-02TS | 58 | 1,185 |
F3SJ-B1265P25 | F3SJ-B1265N25 | F3SJ-B1265P25-01TS | F3SJ-B1265P25-02TS | 62 | 1,265 |
F3SJ-B1345P25 | F3SJ-B1345N25 | F3SJ-B1345P25-01TS | F3SJ-B1345P25-02TS | 66 | 1,345 |
F3SJ-B1425P25 | F3SJ-B1425N25 | F3SJ-B1425P25-01TS | F3SJ-B1425P25-02TS | 70 | 1,425 |
F3SJ-B1505P25 | F3SJ-B1505N25 | F3SJ-B1505P25-01TS | F3SJ-B1505P25-02TS | 74 | 1,505 |
F3SJ-B1585P25 | F3SJ-B1585N25 | F3SJ-B1585P25-01TS | F3SJ-B1585P25-02TS | 78 | 1,585 |
F3SJ-B1665P25 | F3SJ-B1665N25 | F3SJ-B1665P25-01TS | F3SJ-B1665P25-02TS | 82 | 1,665 |
F3SJ-B1745P25 | F3SJ-B1745N25 | F3SJ-B1745P25-01TS | F3SJ-B1745P25-02TS | 86 | 1,745 |
F3SJ-B1825P25 | F3SJ-B1825N25 | F3SJ-B1825P25-01TS | F3SJ-B1825P25-02TS | 90 | 1,825 |
F3SJ-B1905P25 | F3SJ-B1905N25 | F3SJ-B1905P25-01TS | F3SJ-B1905P25-02TS | 94 | 1,905 |
F3SJ-B1985P25 | F3SJ-B1985N25 | F3SJ-B1985P25-01TS | F3SJ-B1985P25-02TS | 98 | 1,985 |
F3SJ-B2065P25 | F3SJ-B2065N25 | F3SJ-B2065P25-01TS | - | 102 | 2,065 |
For wiring with safety circuit such as single safety relay, safety relay unit, and safety controller
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
3 m | M12 connector (8-pin) | F39-JD3A |
7 m | F39-JD7A | ||
10 m | F39-JD10A | ||
15 m | F39-JD15A | ||
20 m | F39-JD20A |
Control unit for connection with F3SP-B1P, to extend the length under series connection
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
0.5 m | M12 connector (8-pin) | F39-JDR5B |
1 m | F39-JD1B | ||
3 m | F39-JD3B | ||
5 m | F39-JD5B | ||
7 m | F39-JD7B | ||
10 m | F39-JD10B | ||
15 m | F39-JD15B | ||
20 m | F39-JD20B |
Type | Appearance | Cable length | Model | Application |
---|---|---|---|---|

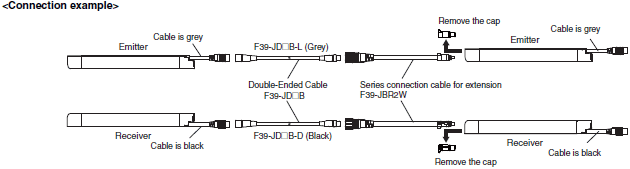

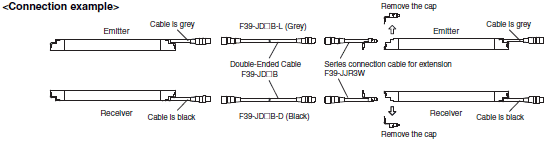

Series connection cable for
extension |
![]() |
0.2 m | F39-JBR2W * | For series connection |
Appearance | Model | Application |
---|---|---|
![]() |
F39-CN5 | To reduce wiring |

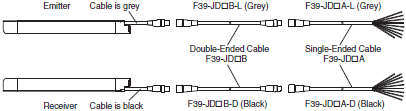

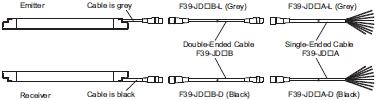

Appearance | Contents | Cable length | Model | |
---|---|---|---|---|
![]() |
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0303BA |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0307BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0310BA | |
Single-Ended Cable | F39-JD10A-D | 10 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0503BA | |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0507BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0510BA | |
Single-Ended Cable | F39-JD10A-D | 10 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1003BA | |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1007BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1010BA | |
Single-Ended Cable | F39-JD10A-D | 10 m |
Type | Appearance | Specifications | Model | Remarks |
---|---|---|---|---|
G7SA Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 4
Contact type: 2NO+2NC Rated switch load: 250 VAC 6A, 30 VDC 6A |
G7SA-2A2B | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 4
Contact type: 3NO+1NC Rated switch load: 250 VAC 6A, 30 VDC 6A |
G7SA-3A1B | |||
G7S-[]-E Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 6
Contact type: 4NO+2NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-4A2B-E | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 6
Contact type: 3NO+3NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-3A3B-E |
Diameter | Model |
---|---|
14mm dia. | F39-TRD14 |
20mm dia. | F39-TRD20 |
25mm dia. | F39-TRD25 |
30mm dia. | F39-TRD30 |
(Dedicated PNP output type)
Appearance | Output | Model | Remarks |
---|---|---|---|
![]() |
Relay, 3NO+1NC | F3SP-B1P * | For connection with F3SJ-B, use a double-ended cable F39-JD[]B. |
* F3SJ for NPN output type cannot be connected.
Type | Appearance | Specifications | Model | Remarks |
---|---|---|---|---|
Connector Terminal Box/
Muting Terminals *2 |
![]() |
Model with PNP Muting
Sensor Output |
F39-TC5P01 | Significantly reduces amount of wiring between
Safety Light Curtains and Muting Sensors. IP67 model for mounting at Sensor installation site. For details, refer to the OMRON's website. |
Model with PNP
Override Input |
F39-TC5P02 | |||
Model with NPN Muting
Sensor Output |
F39-TC5N01 | |||
Model with NPN
Override Input |
F39-TC5N02 | |||
Safety Terminal Relays *2 |
![]() |
PNP output relay,
SPDT-NO |
F3SP-T01 *1 | Significantly reduces amount of wiring between
Safety Light Curtains and Muting Sensors. For details, refer to the OMRON's website. |
*1. F3SJ for NPN output type cannot be connected.
*2. The models with the suffix "-01TS" cannot be connected.
Note: Orders for F39-TC5 Series and F3SP-T01 have been discontinued at the end of May 2020.
Appearance | Output | Model |
---|---|---|
![]() |
Laser Pointer for F3SJ | F39-PTJ * |
* It cannot be mounted to the models with the suffix "-02TS".
Appearance | Model |
---|---|
![]() |
F39-HB[][][][] *1 *2 |
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-PB[][][][] *1 | 2 Light Curtain brackets
4 mounting brackets 0 to 4 intermediate brackets for backside mounting (quantity required for the sensing width) 0 to 4 intermediate brackets for mounting to the sides (quantity required for the sensing width) |
F39-PB[][][][]-S *1 *2 | 1 Light Curtain bracket
2 mounting brackets 0 to 2 intermediate brackets for backside mounting (quantity required for the sensing width) 0 to 2 intermediate brackets for mounting to the sides (quantity required for the sensing width) |
Appearance | Applicable light curtain | Column height | Model |
---|---|---|---|
F3SJ Series
Safety Light Curtain |
|||
![]() 15% shorter than the rating) |
Protective height up to 0880 | 990 mm | F39-SML0990 |
Protective height up to 1200 | 1,310 mm | F39-SML1310 | |
Protective height up to 1520 | 1,630 mm | F39-SML1630 | |
Protective height up to 1840 | 1,950 mm | F39-SML1950 |
Appearance | Specifications | Model | Application | Remarks |
---|---|---|---|---|
![]() |
Top/bottom
bracket |
F39-LJB1 | Top/bottom bracket for F3SJ-E/B | 2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Intermediate
bracket |
F39-LJB2 *1 *2 | In combination use with top/bottom
bracket for F3SJ-E/B Can be used as free-location bracket. |
1 set with 2 pieces |
![]() |
One-touch
bracket |
F39-LJB3-M6 *1 | One-touch bracket for F3SJ-E/B
Supports M6 slide nut for aluminum frame. |
1 set with 2 pieces |
F39-LJB3-M8 *2 | One-touch bracket for F3SJ-E/B
Supports M8 slide nut for aluminum frame. |
|||
![]() |
One-touch M6
bracket One-touch M8 bracket |
F39-LJB3-M6K *1 | Bracket to mount an intermediate
bracket to the aluminum frame with a single touch. |
Hexagon socket head
cap screws (M6 x 10) are included. |
F39-LJB3-M8K *2 | Hexagon socket head
cap screws (M8 x 14) are included. |
|||
![]() |
Compatible
mounting bracket |
F39-LJB4 | Mounting bracket used when
replacing existing area sensors (F3SJ-A or F3SN) with the F3SJ-E/B. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Contact mount
bracket |
F39-LJB5 | Bracket to closely contact the back
side of the Sensor. |
2 for an emitter,
2 for a receiver, total of 4 per set |
*1. Combining F39-LJB2 and F39-LJB3-M6K makes F39-LJB3-M6.
*2. Combining F39-LJB2 and F39-LJB3-M8K makes F39-LJB3-M8.
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-CN11 * | For both emitter and receiver.
The End Cap can be purchased if lost. (Case: Black) |
* This product is for F3SJ-B only.
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-CN10 *1 *2 | A cap to be attached to the main unit to enable muting function.
Attach it to either an emitter or a receiver. (Case: orange) |
*1. This product is for F3SJ-B only.
*2. The models with the suffix "-01TS" cannot be connected.
Application | Detection
capability |
Beam gap | Operating range | Protective height
(mm) |
Model | |
---|---|---|---|---|---|---|
PNP Output | NPN Output | |||||
Finger protection | Dia. 14 mm | 9 mm | 0.2 to 9 m | 245 to 1,271 | F3SJ-A[][][][]P14 *2 | F3SJ-A[][][][]N14 |
Hand protection | Dia. 20 mm | 15 mm | 0.2 to 9 m | 245 to 1,505 | F3SJ-A[][][][]P20 *2 | F3SJ-A[][][][]N20 |
Hand/arm protection | Dia. 30 mm | 25 mm | 0.2 to 9 m | 245 to 1,620 | F3SJ-A[][][][]P30 *1 | F3SJ-A[][][][]N30 |
0.2 to 7 m | 1,745 to 2,495 | |||||
Leg/body protection,
presence detection |
Dia. 55 mm | 50 mm | 0.2 to 9 m | 270 to 1,570 | F3SJ-A[][][][]P55 *1 | F3SJ-A[][][][]N55 |
0.2 to 7 m | 1,670 to 2,470 |
Model | Number
of Beams |
Protective
Height (mm) * |
|
---|---|---|---|
PNP Output | NPN Output | ||
F3SJ-A0245P14 | F3SJ-A0245N14 | 26 | 245 |
F3SJ-A0263P14 | F3SJ-A0263N14 | 28 | 263 |
F3SJ-A0299P14 | F3SJ-A0299N14 | 32 | 299 |
F3SJ-A0317P14 | F3SJ-A0317N14 | 34 | 317 |
F3SJ-A0389P14 | F3SJ-A0389N14 | 42 | 389 |
F3SJ-A0461P14 | F3SJ-A0461N14 | 50 | 461 |
F3SJ-A0551P14 | F3SJ-A0551N14 | 60 | 551 |
F3SJ-A0623P14 | F3SJ-A0623N14 | 68 | 623 |
F3SJ-A0695P14 | F3SJ-A0695N14 | 76 | 695 |
F3SJ-A0731P14 | F3SJ-A0731N14 | 80 | 731 |
F3SJ-A0803P14 | F3SJ-A0803N14 | 88 | 803 |
F3SJ-A0875P14 | F3SJ-A0875N14 | 96 | 875 |
F3SJ-A0983P14 | F3SJ-A0983N14 | 108 | 983 |
F3SJ-A1055P14 | F3SJ-A1055N14 | 116 | 1,055 |
F3SJ-A1127P14 | F3SJ-A1127N14 | 124 | 1,127 |
F3SJ-A1199P14 | F3SJ-A1199N14 | 132 | 1,199 |
F3SJ-A1271P14 | F3SJ-A1271N14 | 140 | 1,271 |
* Protective Height (mm) = Total sensor length
Model | Number
of Beams |
Protective
Height (mm) * |
|
---|---|---|---|
PNP Output | NPN Output | ||
F3SJ-A0245P20 | F3SJ-A0245N20 | 16 | 245 |
F3SJ-A0275P20 | F3SJ-A0275N20 | 18 | 275 |
F3SJ-A0305P20 | F3SJ-A0305N20 | 20 | 305 |
F3SJ-A0395P20 | F3SJ-A0395N20 | 26 | 395 |
F3SJ-A0455P20 | F3SJ-A0455N20 | 30 | 455 |
F3SJ-A0545P20 | F3SJ-A0545N20 | 36 | 545 |
F3SJ-A0605P20 | F3SJ-A0605N20 | 40 | 605 |
F3SJ-A0635P20 | F3SJ-A0635N20 | 42 | 635 |
F3SJ-A0695P20 | F3SJ-A0695N20 | 46 | 695 |
F3SJ-A0785P20 | F3SJ-A0785N20 | 52 | 785 |
F3SJ-A0815P20 | F3SJ-A0815N20 | 54 | 815 |
F3SJ-A0875P20 | F3SJ-A0875N20 | 58 | 875 |
F3SJ-A0935P20 | F3SJ-A0935N20 | 62 | 935 |
F3SJ-A1025P20 | F3SJ-A1025N20 | 68 | 1,025 |
F3SJ-A1115P20 | F3SJ-A1115N20 | 74 | 1,115 |
F3SJ-A1205P20 | F3SJ-A1205N20 | 80 | 1,205 |
F3SJ-A1265P20 | F3SJ-A1265N20 | 84 | 1,265 |
F3SJ-A1445P20 | F3SJ-A1445N20 | 96 | 1,445 |
F3SJ-A1505P20 | F3SJ-A1505N20 | 100 | 1,505 |
* Protective Height (mm) = Total sensor length
Model | Number
of Beams |
Protective
Height (mm) * |
|
---|---|---|---|
PNP Output | NPN Output | ||
F3SJ-A0245P30 | F3SJ-A0245N30 | 10 | 245 |
F3SJ-A0295P30 | F3SJ-A0295N30 | 12 | 295 |
F3SJ-A0395P30 | F3SJ-A0395N30 | 16 | 395 |
F3SJ-A0470P30 | F3SJ-A0470N30 | 19 | 470 |
F3SJ-A0520P30 | F3SJ-A0520N30 | 21 | 520 |
F3SJ-A0545P30 | F3SJ-A0545N30 | 22 | 545 |
F3SJ-A0570P30 | F3SJ-A0570N30 | 23 | 570 |
F3SJ-A0620P30 | F3SJ-A0620N30 | 25 | 620 |
F3SJ-A0720P30 | F3SJ-A0720N30 | 29 | 720 |
F3SJ-A0795P30 | F3SJ-A0795N30 | 32 | 795 |
F3SJ-A0870P30 | F3SJ-A0870N30 | 35 | 870 |
F3SJ-A0920P30 | F3SJ-A0920N30 | 37 | 920 |
F3SJ-A0945P30 | F3SJ-A0945N30 | 38 | 945 |
F3SJ-A0995P30 | F3SJ-A0995N30 | 40 | 995 |
F3SJ-A1020P30 | F3SJ-A1020N30 | 41 | 1,020 |
F3SJ-A1095P30 | F3SJ-A1095N30 | 44 | 1,095 |
F3SJ-A1120P30 | F3SJ-A1120N30 | 45 | 1,120 |
F3SJ-A1195P30 | F3SJ-A1195N30 | 48 | 1,195 |
F3SJ-A1270P30 | F3SJ-A1270N30 | 51 | 1,270 |
F3SJ-A1395P30 | F3SJ-A1395N30 | 56 | 1,395 |
F3SJ-A1620P30 | F3SJ-A1620N30 | 65 | 1,620 |
F3SJ-A1745P30 | F3SJ-A1745N30 | 70 | 1,745 |
F3SJ-A1870P30 | F3SJ-A1870N30 | 75 | 1,870 |
F3SJ-A1995P30 | F3SJ-A1995N30 | 80 | 1,995 |
F3SJ-A2245P30 | F3SJ-A2245N30 | 90 | 2,245 |
F3SJ-A2370P30 | F3SJ-A2370N30 | 95 | 2,370 |
F3SJ-A2495P30 | F3SJ-A2495N30 | 100 | 2,495 |
* Protective Height (mm) = Total sensor length
Model | Number
of Beams |
Protective
Height (mm) * |
|
---|---|---|---|
PNP Output | NPN Output | ||
F3SJ-A0270P55 | F3SJ-A0270N55 | 6 | 270 |
F3SJ-A0320P55 | F3SJ-A0320N55 | 7 | 320 |
F3SJ-A0370P55 | F3SJ-A0370N55 | 8 | 370 |
F3SJ-A0470P55 | F3SJ-A0470N55 | 10 | 470 |
F3SJ-A0570P55 | F3SJ-A0570N55 | 12 | 570 |
F3SJ-A0620P55 | F3SJ-A0620N55 | 13 | 620 |
F3SJ-A0720P55 | F3SJ-A0720N55 | 15 | 720 |
F3SJ-A0770P55 | F3SJ-A0770N55 | 16 | 770 |
F3SJ-A0870P55 | F3SJ-A0870N55 | 18 | 870 |
F3SJ-A0920P55 | F3SJ-A0920N55 | 19 | 920 |
F3SJ-A0970P55 | F3SJ-A0970N55 | 20 | 970 |
F3SJ-A1020P55 | F3SJ-A1020N55 | 21 | 1,020 |
F3SJ-A1120P55 | F3SJ-A1120N55 | 23 | 1,120 |
F3SJ-A1170P55 | F3SJ-A1170N55 | 24 | 1,170 |
F3SJ-A1270P55 | F3SJ-A1270N55 | 26 | 1,270 |
F3SJ-A1320P55 | F3SJ-A1320N55 | 27 | 1,320 |
F3SJ-A1420P55 | F3SJ-A1420N55 | 29 | 1,420 |
F3SJ-A1570P55 | F3SJ-A1570N55 | 32 | 1,570 |
F3SJ-A1770P55 | F3SJ-A1770N55 | 36 | 1,770 |
F3SJ-A1920P55 | F3SJ-A1920N55 | 39 | 1,920 |
F3SJ-A2070P55 | F3SJ-A2070N55 | 42 | 2,070 |
F3SJ-A2220P55 | F3SJ-A2220N55 | 45 | 2,220 |
F3SJ-A2370P55 | F3SJ-A2370N55 | 48 | 2,370 |
F3SJ-A2470P55 | F3SJ-A2470N55 | 50 | 2,470 |
* Protective Height (mm) = Total sensor length
For wiring with safety circuit such as single safety relay, safety relay unit, and safety controller
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
3 m | M12 connector (8-pin) | F39-JD3A |
7 m | F39-JD7A | ||
10 m | F39-JD10A | ||
15 m | F39-JD15A | ||
20 m | F39-JD20A |
Control unit for connection with F3SP-B1P, to extend the length under series connection (*)
Appearance | Cable length | Specifications | Model |
---|---|---|---|
![]() |
0.5 m | M12 connector (8-pin) | F39-JDR5B |
1 m | F39-JD1B | ||
3 m | F39-JD3B | ||
5 m | F39-JD5B | ||
7 m | F39-JD7B | ||
10 m | F39-JD10B | ||
15 m | F39-JD15B | ||
20 m | F39-JD20B |
Appearance | Cable Length | Model |
---|---|---|
![]() |
0.3 m | F39-JJR3K |
Note: This product is for F3SJ-A only.
Type | Appearance | Cable Length | Model | Application |
---|---|---|---|---|
Series connection
cable |
![]() |
0.3 m | F39-JJR3W *1 | For series connection *2
When using the Water-resistant Case. *3 |
Side-by-side Series
connection cable |
![]() |
0.06 m | F39-JJR06L *1 | Dedicated cable to materialize series
connection with minimum length without connector cable of the main sensor unit |
0.15 m | F39-JJR15L *1 |
Appearance | Model | Application |
---|---|---|
![]() |
F39-CN5 | To reduce wiring |
Appearance | Contents | Cable length | Model | |
---|---|---|---|---|
![]() |
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0303BA |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0307BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD3B-L | 3 m | F39-JD0310BA | |
Single-Ended Cable | F39-JD10A-D | 10 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0503BA | |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0507BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD5B-L | 5 m | F39-JD0510BA | |
Single-Ended Cable | F39-JD10A-D | 10 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1003BA | |
Single-Ended Cable | F39-JD3A-D | 3 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1007BA | |
Single-Ended Cable | F39-JD7A-D | 7 m | ||
Double-Ended Cable | F39-JD10B-L | 10 m | F39-JD1010BA | |
Single-Ended Cable | F39-JD10A-D | 10 m |
Type | Appearance | Specifications | Model | Remarks |
---|---|---|---|---|
G7SA Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 4
Contact type: 2A2B Rated switch load: 250 VAC 6 A, 30 VDC 6 A |
G7SA-2A2B | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 4
Contact type: 3NO+1NC Rated switch load: 250 VAC 6 A, 30 VDC 6 A |
G7SA-3A1B | |||
G7S-[]-E Relays with
Forcibly Guided Contacts |
![]() |
Nodes: 6
Contact type: 4NO+2NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-4A2B-E | For details on other models or socket models,
refer to the OMRON's website. |
Nodes: 6
Contact type: 3NO+3NC Rated switch load: 250 VAC 10 A, 30 VDC 10 A |
G7S-3A3B-E |
(Dedicated PNP output type) *
Appearance | Output | Model | Remarks |
---|---|---|---|
![]() |
Relay, 3NO+1NC | F3SP-B1P * | For connection with F3SJ-A, use a double-ended cable F39-JD[]B. |
* F3SJ for NPN output type cannot be connected.
Type | Appearance | Specifications | Model | Remarks |
---|---|---|---|---|
Connector Terminal
Box/Muting Terminals |
![]() |
Model with PNP Muting Sensor Output | F39-TC5P01 | Significantly reduces amount of wiring
between Safety Light Curtains and Muting Sensors. IP67 model for mounting at Sensor installation site. For details, refer to the OMRON's website. |
Model with PNP Override Input | F39-TC5P02 | |||
Model with NPN Muting Sensor Output | F39-TC5N01 | |||
Model with NPN Override Input | F39-TC5N02 | |||
Safety Terminal
Relays |
![]() |
PNP output relay, SPDT-NO | F3SP-T01 * | Significantly reduces amount of wiring
between Safety Light Curtains and Muting Sensors. For details, refer to the OMRON's website. |
* F3SJ for NPN output type cannot be connected.
Note: Orders for F39-TC5 Series and F3SP-T01 have been discontinued at the end of May 2020.
Appearance | Output | Model |
---|---|---|
![]() |
Laser Pointer for F3SJ | F39-PTJ |
Appearance | Color | Model | Remarks |
---|---|---|---|
![]() |
Red | F39-A01PR-PAC | Indicator (red), mounting bracket 1 set, and dedicated connection cable (0.1 m) |
Green | F39-A01PG-PAC | Indicator (green), mounting bracket 1 set, and dedicated connection cable (0.1 m) | |
Yellow | F39-A01PY-PAC | Indicator (yellow), mounting bracket 1 set, and dedicated connection cable (0.1 m) |
Appearance | Cable Length | Specifications | Model |
---|---|---|---|
![]() |
3 m | Cable to connect top of the main unit and an off-the-shelf external indicator (2-wire) | F39-JJ3N * |
* This product is for F3SJ-A only.
Appearance | Model |
---|---|
![]() |
F39-HJ[][][][] *1 *2 |
Appearance | Applicable light curtain | Column height | Model |
---|---|---|---|
F3SJ Series
Safety Light Curtain |
|||
![]() 15% shorter than the rating) |
Protective height up to 0880 | 990 mm | F39-SML0990 |
Protective height up to 1200 | 1,310 mm | F39-SML1310 | |
Protective height up to 1520 | 1,630 mm | F39-SML1630 | |
Protective height up to 1840 | 1,950 mm | F39-SML1950 |
Diameter | Model |
---|---|
14mm dia. | F39-TRD14 |
20mm dia. | F39-TRD20 |
25mm dia. | F39-TRD25 |
30mm dia. | F39-TRD30 |
Appearance | Specifications | Model | Application | Remarks |
---|---|---|---|---|
![]() |
Standard mounting
bracket (for top/bottom) |
F39-LJ1 | (provided with the F3SJ) | 2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Flat side mounting
bracket |
F39-LJ2 | Use these small-sized brackets when
performing side mounting with standard mounting brackets, so that they do not protrude from the detection surface. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Free-location mounting
bracket (also used as standard intermediate bracket) |
F39-LJ3 | Use these brackets for mounting on any
place without using standard bracket. |
Two brackets per set
(For details about the number of required brackets, refer to Data Sheet.) |
![]() |
F3SN Intermediate
Bracket Replacement Spacers |
F39-LJ3-SN | When replacing the F3SN with the F3SJ,
the mounting hole pitches in the Intermediate Brackets are not the same. This Spacer is placed between the mounting holes to mount the F3SJ. |
1 set with 2 pieces |
![]() |
Top/bottom bracket B
(Mounting hole pitch 19 mm) |
F39-LJ4 | Mounting bracket used when replacing
existing area sensors (other than F3SN or F3WN) with the F3SJ. For front mounting. Suitable for mounting hole pitch of 18 to 20 mm. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Bracket for replacing
short-length F3SN |
F39-LJ5 | Mounting bracket used when an F3SN with
protective height of 300 mm or less is replaced by an F3SJ. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Space-saving mounting
bracket |
F39-LJ8 | Use these brackets to mount facing inward.
Length is 12 mm shorter than the standard F39-LJ1 bracket. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Mounting bracket used
when replacing an F3W-C. |
F39-LJ9 | Mounting bracket used when replacing
existing F3W-C series area sensors with the F3SJ. For front mounting or side mounting. Mounting hole pitch 16 mm. |
2 for an emitter,
2 for a receiver, total of 4 per set |
![]() |
Top/bottom bracket C
(mounting hole pitch 13 mm) |
F39-LJ11 | Mounting bracket used when replacing
existing area sensors having a mounting pitch of 13 mm with the F3SJ. |
2 for an emitter,
2 for a receiver, total of 4 per set |
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-CN9 * | For both emitter and receiver.
The End Cap can be purchased if lost. (Case: Black) |
* This product is for F3SJ-A only.
Appearance | Model | Remarks |
---|---|---|
![]() |
F39-CN6 * | A cap to be attached to the main unit to enable muting function.
Attach it to either an emitter or a receiver. (Case: orange) |
* This product is for F3SJ-A only.
Type | Appearance | Model | Remarks |
---|---|---|---|
"SD Manager" Setting Support
Software for the F3SJ |
![]() |
F39-GWUM *2 | Accessories:
SD Manager CD-ROM (1), F39-CN1 Branch Connector (1), Connector Cap (1), 2-m Dedicated Cable (1), 0.3-m Dedicated Cable with Plug (1), Instruction Manual |
Setting Console |
![]() |
F39-MC21 *3 | Accessories:
F39-CN1 Branch Connector (1), Connector Cap (1), 2-m Dedicated Cable (1), 0.3-m Dedicated Cable with Plug (1), Instruction Manual |
Type | Appearance | Model | Remarks |
---|---|---|---|
Protective Bar |
![]() |
F39-PJ[][][][]-S *3 | Main unit bracket (1),
rear mounting brackets (2), including intermediate brackets to match protective height (0 to 2). |
Intermediate brackets
for side mounting |
![]() |
F39-PJ-MS | For side mounting, order to suit the desired protective height.
Protective height of up to 1,000 mm: 0 intermediate brackets Protective height of 1,001 to 2,000 mm: 1 intermediate bracket Protective height of 2,001 mm or more: 2 intermediate brackets |
Appearance | Specifications | Model | Remarks |
---|---|---|---|
![]() |
For emitter | F39-EJ[][][][]-L *4 | Includes gray cable for emitter. |
For receiver | F39-EJ[][][][]-D *4 | Includes black cable for receiver. | |
![]() |
Rear Mounting Brackets | F39-EJ-R *5 | Top/bottom 1 each, total of 2 |
![]() |
Side Mounting Brackets | F39-EJ-S *5 | Top/bottom 1 each, total of 2 |
--- | Series connection cable (for emitter) | F39-JJR3WE-L | Purchase additionally for series connection when
using the Water-resistant Case. |
Series connection cable (for receiver) | F39-JJR3WE-D |
last update: April 1, 2021
