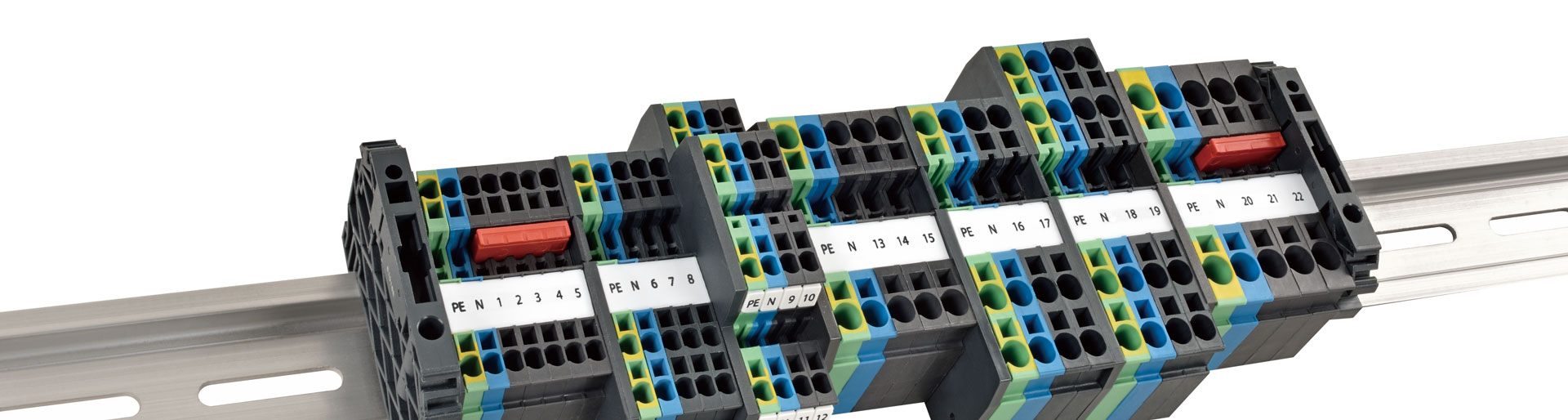

XW5T Terminal Blocks

DIN Track Terminal Blocks

Making Wiring A Breeze

For Panel Builders and Electrical Engineers

Did you know? Wiring takes up majority time in building control panels, impacting production lead time. With conventional screw-type terminal blocks, wiring can be tedious and time-consuming.

Efficient control panel production starts with innovative terminal blocks design solution. Introducing OMRON Push-In Plus Terminal Blocks, boost operational efficiency at work and make wiring a breeze for electrical engineers.

Increase Productivity

With Efficient Wiring

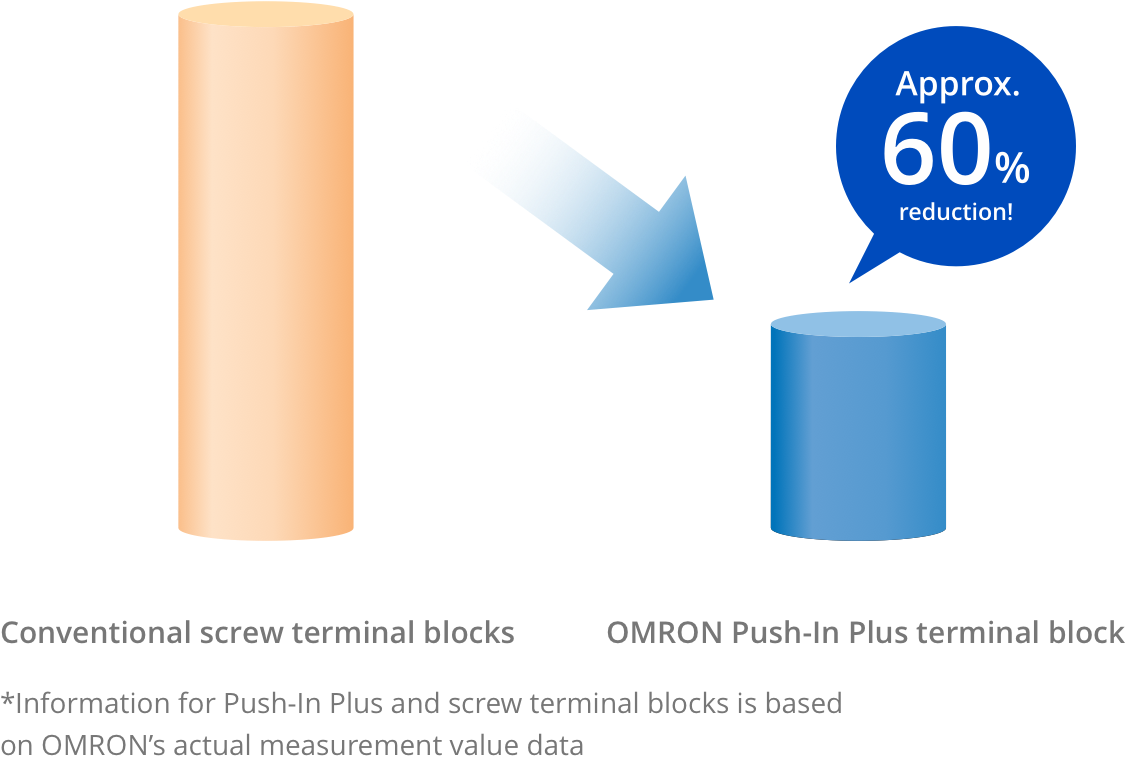

Wiring can be a time consuming process with screw-type wiring. The more time required for wiring, the higher the labour cost.

Ease Wiring Effort

With Easy Wiring

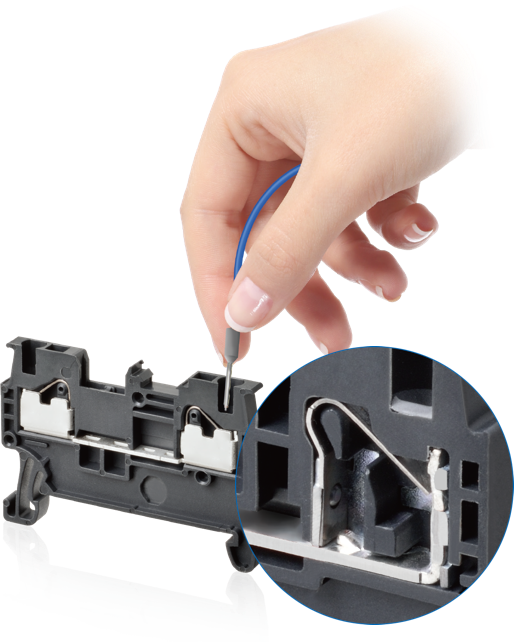

Wiring can be a tedious process for electrical engineers. With a low insertion force, OMRON Push-in Plus Terminal Blocks simplify and reduce wiring effort with easy connection.
Insertion Force
Earphone JackPush-In Plus Terminal Block
10N8N

Reliable and Secure Wiring

With Advanced Wiring Technology

During machine vibration or transportation, wires may loosen and fall out with regular push-in or screw-type terminal blocks.

With a high pull-out force, OMRON robust mechanism design and advanced manufacturing technology ensures a strong and secure wiring connection.

Pull-Out Force
IEC Standard (cable diameter)Push-In Plus Terminal BlockScrew Terminal Block
20N min.
(AWG20, 0.5mm)
125N112N

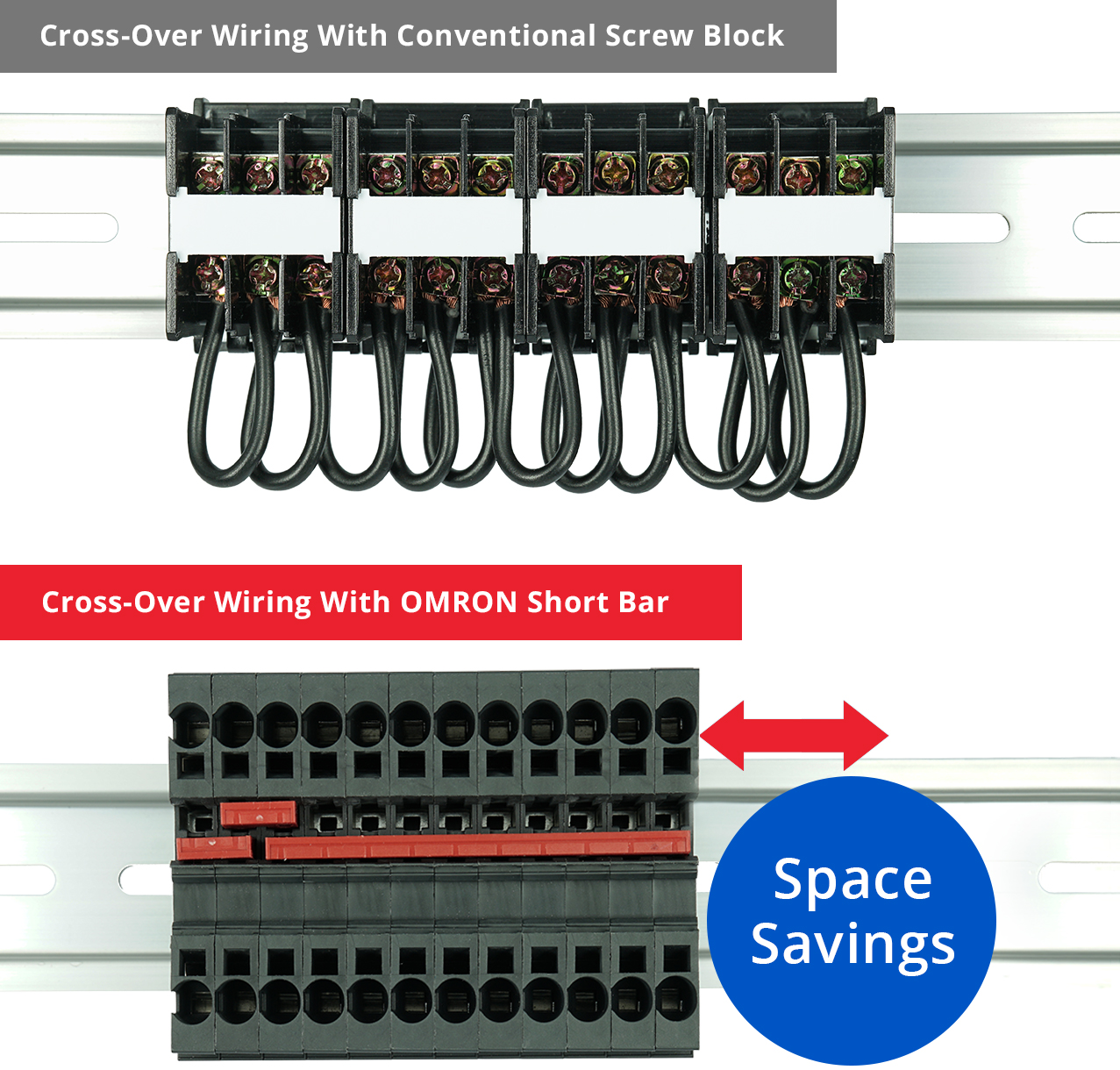

Space Savings

with Compact Terminal Blocks

Manufacturers are continuously looking to downsize facilities or equipments due to limited factory space or future expansion requirements.

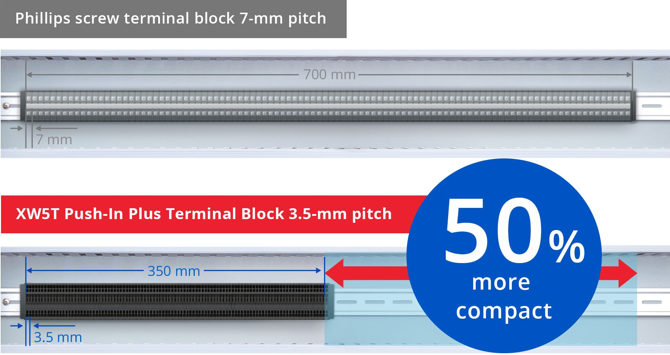

To optimise space usage, our Push-In Plus Terminal Blocks are made compact and slimmer in size, with a minimum width of 3.5mm. This allows considerable space-saving and downsizing of your control panels, while facilitating future expansion plans.

*According to OMRON investigation in March 2017, OMRON has achieved the top class in the industry for downsizing.

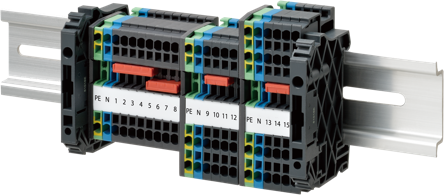

XW5T Series Lineup

Discover our extensive product lineup with Push-In Plus Terminals Blocks to help you build control panel efficiently.
Standard terminals Multi conductor terminals Multi tiers terminals
Appearance and internal wiring 1 tier 1:1 1 tier 1:2 1 tier 2:2 2 tier 1:1
Available wire sizes 1.5, 2.5, 4.0, 6.0 mm2 (AWG 14, 12, 10)
Colours
Dark gray
Blue
Green/Yellow stripes (for ground)
Standards
Appearance and internal wiring

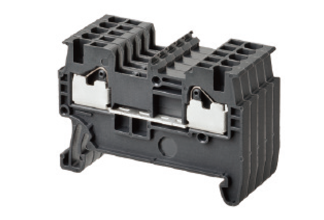

Standard terminals 1 tier 1:1

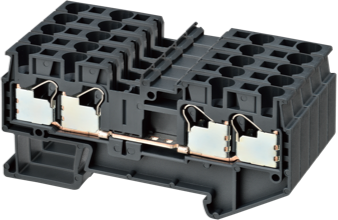

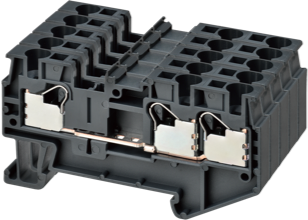

Multi conductor terminals 1 tier 1:2
1 tier 2:2

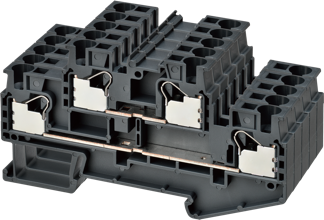

Multi tiers terminals 2 tier 1:1
Available wire sizes
1.5, 2.5, 4.0, 6.0 mm2 (AWG 14, 12, 10)
Colours
Dark gray
Blue
Green/Yellow stripes (for ground)
Standards
Identify the Terminal Block most suitable for your needs with our Product Selector.
