Discontinued On Dec. 2014

S8VT

Switch Mode Power Supply (120/240/480/960 W Models)

S8VT

Natural Cooling Three-phase Power Supply Range from 5A up to 40A with Output Voltage of 24VDC

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: February 3, 2014

(Unit: mm)

S8VT-F12024E

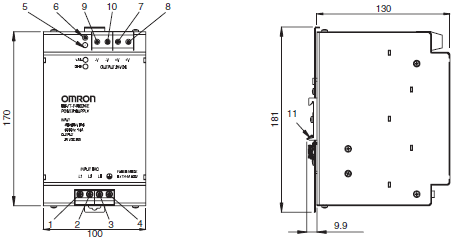

S8VT-F24024E

S8VT-F48024E

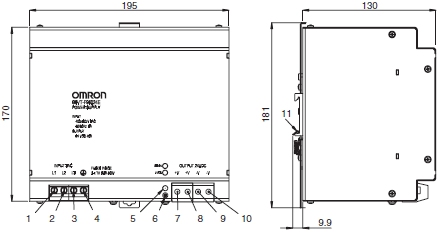

S8VT-F96024E

1. AC input L1 5. LED Vout ok 9. Vout -
2. AC input L2 6. Vadj. Trim 10.Vout -
3. AC input L3 7. Vout + 11.DIN-rail clip
4. P.E. (Protective Earth) 8. Vout +
