3G3MX2-V1

Multi-function Compact Inverter

3G3MX2-V1

Born to drive machines　　　

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Related Contents

last update: March 4, 2024

Performance Specifications

Inverter MX2-series V1 type

3-phase 200 V Class

Function name 3-phase 200 V
Model name (3G3MX2-) A2001-V1 A2002-V1 A2004-V1 A2007-V1 A2015-V1 A2022-V1
Applicable
motor
capacity		 kW CT 0.1 0.2 0.4 0.75 1.5 2.2
VT 0.2 0.4 0.75 1.1 2.2 3.0
HP CT 1/8 1/4 1/2 1 2 3
VT 1/4 1/2 1 1 1/2 3 4
Rated output
capacity
[kVA]		 200 V CT 0.2 0.5 1.0 1.7 2.7 3.8
VT 0.4 0.6 1.2 2.0 3.3 4.1
240 V CT 0.3 0.6 1.2 2.0 3.3 4.5
VT 0.4 0.7 1.4 2.4 3.9 4.9
Rated input voltage 3-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 1.0 1.6 3.3 6 9 12.7
VT 1.2 1.9 3.9 7.2 10.8 13.9
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 1.0 1.6 3.0 5.0 8.0 11.0
VT 1.2 1.9 3.5 6.0 9.6 12.0
Short-time deceleration braking
torque (%)
(Discharge Resistor not connected)		 50 50 50 50 50 20
Braking
Resistor
circuit *		 Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]		 100 100 100 50 50 35
Weight [kg] 1.0 1.0 1.1 1.2 1.6 1.8
Dimensions (width × height) [mm] 68 × 128 108 × 128
Dimensions (depth) [mm] 109 122.5 145.5 170.5

Function name 3-phase 200 V
Model name (3G3MX2-) A2037-V1 A2055-V1 A2075-V1 A2110-V1 A2150-V1
Applicable
motor capacity		 kW CT 3.7 5.5 7.5 11 15
VT 5.5 7.5 11 15 18.5
HP CT 5 7 1/2 10 15 20
VT 7 1/2 10 15 20 25
Rated output
capacity [kVA]		 200 V CT 6.0 8.6 11.4 16.2 20.7
VT 6.7 10.3 13.8 19.3 23.9
240 V CT 7.2 10.3 13.7 19.5 24.9
VT 8.1 12.4 16.6 23.2 28.6
Rated input voltage 3-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 20.5 30.8 39.6 57.1 62.6
VT 23.0 37.0 48.0 68.0 72.0
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 17.5 25.0 33.0 47.0 60.0
VT 19.6 30.0 40.0 56.0 69.0
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)		 20 20 20 10 10
Braking Resistor
circuit *		 Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]		 35 20 17 17 10
Weight [kg] 2.0 3.3 3.4 5.1 7.4
Dimensions (width × height) [mm] 140 × 128 140 × 260 180 × 296 220 × 350
Dimensions (depth) [mm] 170.5 155 175

* The BRD usage is 10%.

3-phase 400 V Class

Function name 3-phase 400 V
Model name (3G3MX2-) A4004-V1 A4007-V1 A4015-V1 A4022-V1 A4030-V1
Applicable
motor capacity		 kW CT 0.4 0.75 1.5 2.2 3.0
VT 0.75 1.5 2.2 3.0 4.0
HP CT 1/2 1 2 3 4
VT 1 2 3 4 5
Rated output
capacity [kVA]		 380 V CT 1.1 2.2 3.1 3.6 4.7
VT 1.3 2.6 3.5 4.5 5.7
480 V CT 1.4 2.8 3.9 4.5 5.9
VT 1.7 3.4 4.4 5.7 7.3
Rated input voltage 3-phase 380 V - 15% to 480 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 1.8 3.6 5.2 6.5 7.7
VT 2.1 4.3 5.9 8.1 9.4
Rated output voltage 3-phase 380 to 480 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 1.8 3.4 4.8 5.5 7.2
VT 2.1 4.1 5.4 6.9 8.8
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)		 50 50 50 20 20
Braking Resistor
circuit *		 Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]		 180 180 180 100 100
Weight [kg] 1.5 1.6 1.8 1.9 1.9
Dimensions (width × height) [mm] 108 × 128
Dimensions (depth) [mm] 143.5 170.5

Function name 3-phase 400 V
Model name (3G3MX2-) A4040-V1 A4055-V1 A4075-V1 A4110-V1 A4150-V1
Applicable
motor capacity		 kW CT 4.0 5.5 7.5 11 15
VT 5.5 7.5 11 15 18.5
HP CT 5 7 1/2 10 15 20
VT 7 1/2 10 15 20 25
Rated output
capacity [kVA]		 380 V CT 6.0 9.7 11.8 15.7 20.4
VT 7.3 11.5 15.1 20.4 25.0
480 V CT 7.6 12.3 14.9 19.9 25.7
VT 9.2 14.5 19.1 25.7 31.5
Rated input voltage 3-phase 380 V - 15% to 480 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 11.0 16.9 18.8 29.4 35.9
VT 13.3 20.0 24.0 38.0 44.0
Rated output voltage 3-phase 380 to 480 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 9.2 14.8 18.0 24.0 31.0
VT 11.1 17.5 23.0 31.0 38.0
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)		 20 20 20 10 10
Braking Resistor
circuit *		 Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]		 100 70 70 70 35
Weight [kg] 2.1 3.5 3.5 4.7 5.2
Dimensions (width × height) [mm] 140 × 128 140 × 260 180 × 296
Dimensions (depth) [mm] 170.5 155 175

* The BRD usage is 10%.

1-phase 200 V Class

Function name 1-phase 200 V
Model name (3G3MX2-) AB001-V1 AB002-V1 AB004-V1 AB007-V1 AB015-V1 AB022-V1
Applicable
motor
capacity		 kW CT 0.1 0.2 0.4 0.75 1.5 2.2
VT 0.2 0.4 0.55 1.1 2.2 3.0
HP CT 1/8 1/4 1/2 1 2 3
VT 1/4 1/2 3/4 1 1/2 3 4
Rated output
capacity
[kVA]		 200 V CT 0.2 0.5 1.0 1.7 2.7 3.8
VT 0.4 0.6 1.2 2.0 3.3 4.1
240 V CT 0.3 0.6 1.2 2.0 3.3 4.5
VT 0.4 0.7 1.4 2.4 3.9 4.9
Rated input voltage 1-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A] CT 1.3 3.0 6.3 11.5 16.8 22.0
VT 2.0 3.6 7.3 13.8 20.2 24.0
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A] CT 1.0 1.6 3.0 5.0 8.0 11.0
VT 1.2 1.9 3.5 6.0 9.6 12.0
Short-time deceleration braking
torque (%)
(Discharge Resistor not connected)		 50 50 50 50 50 20
Braking
Resistor
circuit *		 Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [ Ω ]		 100 100 100 50 50 35
Weight [kg] 1.0 1.0 1.1 1.6 1.8 1.8
Dimensions (width × height) [mm] 68 × 128 108 × 128
Dimensions (depth) [mm] 109 122.5 170.5

* The BRD usage is 10%.

Function Specifications

Function name Specifications
Enclosure ratings *1 Open type (IP20)
Control Control method Phase-to-phase sinusoidal modulation PWM
Output frequency
range *2		 0.10 to 400 Hz (or 580 Hz in the high-frequency mode; restrictions apply)
Frequency precision *3 Digital command: ±0.01% of the max. frequency, Analog command: ±0.2% of
the max. frequency (25±10 °C)
Frequency setting
resolution		 Digital setting: 0.01 Hz, Analog setting: One-thousandth of the maximum
frequency
Voltage/Frequency
characteristics		 V/f characteristics (constant/reduced torque)
Sensorless vector control, V/f control with speed feedback
Overload current
rating		 Heavy load rating (CT): 150%/60 s
Light load rating (VT): 120%/60 s
Instantaneous
overcurrent protection		 200% of the value of heavy load rating (CT)
Acceleration/
Deceleration time		 0.01 to 3600 s (linear/curve selection), acceleration/deceleration 2 setting
vailable
Carrier frequency
adjustment range		 2 to 15 kHz (with derating)
Starting torque 200%/0.5 Hz (sensorless vector control)
External DC injection
braking		 Starts at a frequency lower than that in deceleration via the STOP command,
at a value set lower than that during operation, or via an external input. (Level
and time settable).
Protective functions Overcurrent, overvoltage, undervoltage, electronic thermal, temperature error,
ground fault overcurrent at power-on status, rush current prevention circuit,
overload limit, incoming overvoltage, external trip, memory error, CPU error, USP
error, communication error, overvoltage suppression during deceleration,
protection upon momentary power outage, emergency cutoff, etc.
Input
signal		 Frequency settings Digital Operator
External analog input signal: 0 to 10 VDC/4 to 20 mA, Modbus communication
(Modbus-RTU)
RUN/STOP command Digital Operator
External digital input signal (3-wire input supported), Modbus communication
(Modbus-RTU)
Multi-function input *4 7 points (Functions can be selected from among 68)
Analog input *5 2 points (Voltage FV terminal: 10 bits/0 to 10 V, Current FI terminal: 10 bits/4 to
20 mA)
Pulse input 1 point (RP terminal: 32 kHz max., 5 to 24 VDC)
Output
signal		 Multi-function output *4 2 points (P1 and P2, Functions can be selected from among 47)
Relay output *4 1 point (SPDT contact (MC, MA, MB), Functions can be selected from among 47)
Analog output
(Frequency monitor) *6		 1 point (AM terminal: Voltage 10 bits/0 to 10 V) (Frequency, current selectable)
Pulse output 1 point (MP terminal: 32 kHz max., 0 to 10 V)
Communi-
cations		 RS-422 RJ45 connector (for Digital Operator)
RS-485 Control circuit terminal block, Modbus communication (Modbus-RTU)
USB USB1.1, mini-B connector
Other functions AVR function, V/f characteristics switching, upper/lower limit, 16-step speeds,
starting frequency adjustment, jogging operation, carrier frequency adjustment,
PID control, frequency jump, analog gain/bias adjustment, S shape
acceleration/deceleration, electronic thermal characteristics, level adjustment,
restart function, torque boost function, fault monitor, soft lock function, frequency
conversion display, USP function, motor 2 control function, UP/DWN,
overcurrent control function, etc.
Operating
environ-
ment		 Ambient operating
temperature *7		 -10 to 50 °C (However, derating is required).
Ambient storage
temperature		 -20 °C to 65 °C
Ambient operating
humidity		 20% to 90% RH (with no condensation)
Vibration resistance 5.9 m/s2 (0.6G), 10 to 55 Hz
Application
environment		 At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Options EtherCAT
Communication Unit		 3G3AX-MX2-ECT
CompoNet
Communication Unit		 3G3AX-MX2-CRT-E
DeviceNet
Communication Unit		 3G3AX-MX2-DRT-E
Other option DC reactor, AC reactor, radio noise filter, input noise filter, output noise filter,
regenerative braking unit, Braking Resistor, etc.
Interna-
tional
standard		 EU Directives
and
UK legislation		 Machinery EN ISO 13849-1: 2008 Pld
EN 61800-5-2
EN 60204-1
EMC EN 61800-3: 2004
Low-voltage EN 61800-5-1: 2007
UL/cUL UL508C

*1 Protection method complies with JEM 1030.
*2 To operate the motor at over 50/60 Hz, contact the motor manufacturer to find out the maximum allowable speed of
    revolution.
*3 For the stable control of the motor, the output frequency may exceed the maximum frequency set in A004 (A204) by
    2 Hz max.
*4 In the VT (light load) mode and the PM motor mode, the available functions are limited compared with the CV (heavy
     load) mode. For some parameters, the default data and setting range also differ.
*5 By default, the maximum frequency is adjusted to 9.8 V for a voltage input of 0 to 10 VDC and to 19.8 mA for a current
     input of 4 to 20 mA, respectively. If necessary, adjust the default parameter settings.
*6 The analog voltage and current values for the multi-function monitor output terminals show values that can only be
     used as a guide for analog meter connection. The maximum output value may differ from 10 V or 20 mA due to the
     variability of the analog output circuit. If necessary, adjust the default parameter settings.
*7 Derating of the rated output current of the inverter may be required depending on the heavy/light load mode selection,
     operating ambient temperature, side-by-side installation, and carrier frequency setting. Use the inverter in an
     appropriate environment according to USER’S MANUAL (Cat.No.I585).
Note: 1. The applicable motor is a 3-phase standard motor. For using any other type, be sure that the rated current does
              not exceed that of the Inverter.
         2. Output voltage decreases according to the level of the power supply voltage.
         3. The braking torque at the time of capacitor feedback is an average deceleration torque at the shortest
             deceleration (when it stops from 50 Hz). It is not a continuous regeneration torque. Also, the average
             deceleration torque varies depending on the motor loss. The value is reduced in operation over 50 Hz.

Communication Unit

MX2-Series EtherCAT Communication Unit 3G3AX-MX2-ECT

This is the communication unit to connect the Multi-function Compact Inverter MX2 to EtherCAT network.
This communication unit passed the conformance test of EtherCAT.

Common Specifications

Item Specifications
Power supply Supplied from the inverter
Protective structure Open type (IP20)
Ambient operating temperature - 10 to +50 °C
Ambient storage temperature - 20 to +65 °C
Ambient operating humidity 20% to 90% RH (with no condensation)
Vibration resistance 5.9 m/s2 (0.6 G), 10 to 55 Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Weight 100 g max.
International standard UL/cUL UL508C
EU Directives
and
UK legislation		 EMC:EN61800-3: 2004
Low Voltage:EN61800-5-1: 2003

EtherCAT Communications Specifications

Item Specifications
Communications standard IEC 61158 Type12, IEC 61800-7 CiA 402 drive profile
Physical layer 100BASE-TX (IEEE802.3)
Connector RJ45 × 2 (shielded type)
ECAT IN: EtherCAT input
ECAT OUT: EtherCAT output
Communications media Category 5 or higher (cable with double, aluminum tape and braided shielding) is
recommended.
Communications distance Distance between nodes: 100 m max.
Process data Fixed PDO mapping
PDO mapping
Mailbox (CoE) Emergency messages, SDO, SDO responses, and information
Distributed clock FreeRun mode (asynchronous)
LED display L/A IN (Link/Activity IN) × 1
L/A OUT (Link/Activity OUT) × 1
RUN × 1
ERR × 1
CiA402 drive profile Velocity mode

MX2-Series CompoNet Communication Unit 3G3AX-MX2-CRT-E

This is the communication unit to connect the Multi-function Compact Inverter MX2 to CompoNet network.

Common Specification

Item Specification
Power supply Supplied from the inverter
Protective structure IP20
Ambient operating temperature - 10 to 50 °C
Ambient storage temperature - 20 to 65 °C
Ambient operating humidity 20 to 90%RH (with no condensation)
Vibration resistance 5.9m/s2 (0.6G), 10 to 55Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation resistance 500VAC (between isolated circuits)
Weight Approx. 170g
International standard UL/cUL UL508
EU Directives
and
UK legislation		 EN61800-3: 2004 (2004/108/EC) Second environment, Category C3
EN61800-5-1: 2007 (2006/95/EC) SELV

CompoNet Communications Specifications

Item Specification
Slave type Word Slave Unit (Mixed)
Certification CompoNet Conformance Tested
CompoNet Profile AC Drive (0x02)
Node Address 0 to 63, set with inverter parameter P190 or the rotary switches.
Communication power supply - (External power not required)
Baud rates supported 4 Mbps, 3 Mbps, 1.5 Mbps, 93.75 kbps. Automatically detecting baud rate of Master Unit
Default Connection path Supported, set with inverter parameter P046
Supported Assemblies Basic Remote IO (Output assembly 20, Input assembly 70)
Extended Speed IO (21, 71)
Extended Speed and Torque Control (123, 173)
Special IO (100, 150)
Extended Control IO (101, 151)
Extended Control IO and Multi function IO monitor (101, 153)
Flexible Format (139, 159)
Extended Speed and Acceleration Control (110, 111)
EDS file Depending on the MX2 inverter model

MX2-Series DeviceNet Communication Unit 3G3AX-MX2-DRT-E

This is the communication unit to connect the Multi-function Compact Inverter MX2 to DeviceNet network.

Common Specification

Item Specification
Power supply Supplied from the inverter
Protective structure IP20
Ambient operating temperature - 10 to 50 °C
Ambient storage temperature - 20 to 65 °C
Ambient operating humidity 20 to 90%RH (with no condensation)
Vibration resistance 5.9m/s2 (0.6G), 10 to 55Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation resistance 500VAC (between isolated circuits)
Weight Approx. 170g
International standard UL/cUL UL508
EU Directives
and
UK legislation		 EN61800-3: 2004 (2004/108/EC) Second environment, Category C3
EN61800-5-1: 2007 (2006/95/EC) SELV

DeviceNet Communications Specifications

Item Specification
Certification DeviceNet Conformance Tested
DeviceNet Profile AC Drive (0x02)
Supported connections Remote I/O: Master-Slave connection
Poll
Bit-Strobe
COS
Cyclic
Explicit Messages
Conform to DeviceNet specifications
Communication power supply 11 to 25VDC (MAX 50 mA, type 20 mA)
Unit device address range MAC ID 0 to 63, set with inverter parameter P192
Baud rates supported 125, 250, or 500kbps. Automatically detects baud rate of Master Unit.
Default Connection path Supported, set with inverter parameter P046
Supported Assemblies Basic Remote IO (Output assembly 20, Input assembly 70)
Extended Speed IO (21, 71)
Extended Speed and Torque Control (123, 173)
Special IO (100, 150)
Extended Control IO (101, 151)
Extended Control IO and Multi function IO monitor (101, 153)
Flexible Format (139, 159)
Extended Speed and Acceleration Control (110, 111)
In case the DeviceNet master is configured using user allocation, only the input/
output pairs can be configured.
EDS file Depending on the MX2 Inverter model

Options

Regenerative Braking Unit 3G3AX-RBU[][]

Used with a Braking Resistor when the deceleration time of the motor is needed to be reduced in the MX2.

Built-in Resistance Type (3G3AX-RBU21/-RBU22/-RBU41)

Class 3-phase 200-V class 3-phase 400-V class
Model name (3G3AX-) RBU21 RBU22 RBU41 *1
Connection resistance 17 Ω min. 17 Ω min. 34 Ω min.
Operating voltage
ON/OFF		 ON: 362.5 ± 5 V
OFF: 355 ± 5 V
(-5% or -10% setting available)		 ON: 725 ± 5 V
OFF: 710 ± 5 V
(-5% or -10% setting
available)
Operation indication LED ON (Lit)
Parallel interlocking operation
function *2		 5 units max.
Built-in
resistor		 Internal
resistance		 120 W, 180 W 120 W, 20 W 120 W, 180 W × 2 in series
Allowable
consecutive ON
time		 10 s max. 0.5 s max. 10 s max.
Allowable
operation cycle		 Cycle 1/10
(ON for 10 s, OFF for 90 s)		 Cycle 1/80
(ON for 0.5 s, OFF for 40 s)		 Cycle 1/10
(ON for 10 s, OFF for 90 s)
Power
consumption		 Instantaneous 0.73 kW
Short-time rating 120 W		 Instantaneous 6.6 kW
Short-time rating 120 W		 Instantaneous 1.46 kW
Short-time rating 240 W
Protective
function		 Built-in resistor
overheat
protection		 • Cooling fin temperatureRelay operates at approximately 200°C or higher.
Recovers at approximately 170°C or lower.
• Built-in temperature fuse (recovery impossible) *3
• Rating of contact250 V AC 200mA (R load)
12 V DC 500mA (R load)
42 V DC 200mA (R load)
• Minimum load1mA (R load)
Operating
environ-
ment		 Ambient
temperature		 -10 to 50°C
Ambient storage
temperature		 -20 to 65°C
Ambient operating
humidity		 20% to 90% (with no condensation)
Vibration 5.9 m/s2 (0.6G) 10 to 55 Hz
Location At a maximum altitude of 1,000 m (without corrosive gases or dust)
Paint color Munselle 5Y7/1 (cooling fan: aluminum ground color)

*1 To use the braking resistor (Model: 3G3AX-RAB/RBB/RBC) for the 400-V class regenerative braking unit, be sure to
      remove the built-in resistor and connect two resistors of the same model in series. Using a 400-V class regenerative
      braking unit with only a single braking resistor connected may cause damage to the braking resistor.
*2 Use DIP switches to set the number of connected units.
*3 The built-in resistor has a thermal fuse. If the alarm terminals are not connected, the fuse may blow out in order to
      prevent the resistor from burning due to overheating. If the fuse blows out, the built-in resistor must be replaced.

Braking Resistor 3G3AX-RBA/-RBB/-RBC[][][][]

Consumes the regenerative motor energy with a resistor to reduce deceleration time.

Model Compact type
(3G3AX-RBA[][][][])		 Standard type
(3G3AX-RBB[][][][])		 Medium capacity type
(3G3AX-RBC[][][][])
1201 1202 1203 1204 2001 2002 3001 4001 4001 6001 12001
Resistance Capacity 120 W 200 W 300 W 400 W 400 W 600 W 1200 W
Resistance
(Ω)		 180 100 50 35 180 100 50 35 50 35 17
Allowable
brakingfrequency (%)		 5 2.5 1.5 1.0 10 7.5 7.5 7.5 10
Allowable
continuousbraking time (s)		 20 12 5 3 30 20 10
Weight (kg) 0.27 0.97 1.68 2.85 2.5 3.6 6.5
Fault detection function Built-in thermal (Contact capacity: 240 V AC 2 A max.)
Minimum current: 5 mA,
Normally ON (NC contact)
Built-in temperature fuse (recovery impossible) *		 Built-in temperature
relay,
Normally ON (NC
contact)
Contact capacity:
240 V AC 3 A (R load),
0.2 A (L load),
36 V DC 2 A (R load)
General
specifi-
cations		 Ambient
operating
temperature		 -10 to 50°C
Ambient
storage
temperature		 -20 to 65°C
Ambient
operating
humidity		 20% to 90% (RH) with no condensation
Vibration 5.9 m/s (0.6 G) 10 to 55 Hz Complies with JISC0911
Location At a maximum altitude of 1,000 m (without corrosive gases or dust)
Cooling
method		 Self-cooling

* Built-in resistors are equipped with thermal fuses. If the alarm is not connected, the fuse may blow to prevent burnout
   due to overheating. If the fuse blows, the built-in resistor will need to be replaced.

Radio Noise Filter 3G3AX-ZCL[]

Connected to the inverter input/output cables to reduce noise coming into the inverter from the power supply line and noise flowing from the inverter into the power supply line.

3G3AX-ZCL1

3G3MX2-V1 Specifications 31

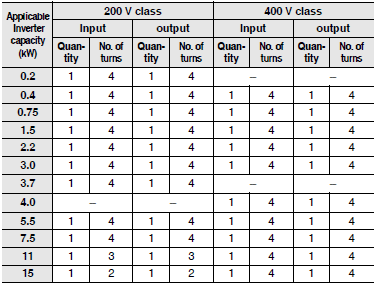

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

3G3AX-ZCL2

3G3MX2-V1 Specifications 33

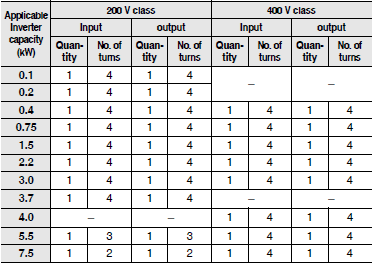

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

Input Noise Filter 3G3AX-NFI[][]

Reduces noise coming into the inverter from the power supply line and noise flowing from the inverter into the power supply line. Connect as close to the Inverter as possible.

Inverter Input noise filter specifications
Voltage class Max. applicable motor capacity [kW] Model Heavy/
Light load mode		 Max. applicable motor capacity [kW] Rated input current [A] Model Max. input voltage Rated input current (at 50°C) Heat generation [W] Leakage current (at 60 Hz)
3-phase 200-V Class 0.1 3G3MX2-A2001-V1 Heavy load 0.1 1.0 3G3AX-NFI21 250 VAC
+10%		 6 A 3 1.5 mA max.
(250 VAC)
Light load 0.2 1.2
0.2 3G3MX2-A2002-V1 Heavy load 0.2 1.6
Light load 0.4 1.9
0.4 3G3MX2-A2004-V1 Heavy load 0.4 3.3
Light load 0.75 3.9
0.75 3G3MX2-A2007-V1 Heavy load 0.75 6.0 3G3AX-NFI22 10 A 4
Light load 1.1 7.2
1.5 3G3MX2-A2015-V1 Heavy load 1.5 9.0
Light load 2.2 10.8 3G3AX-NFI23 20 A 6
2.2 3G3MX2-A2022-V1 Heavy load 2.2 12.7
Light load 3.0 13.9
3.7 3G3MX2-A2037-V1 Heavy load 3.7 20.5 3G3AX-NFI24 30 A 9
Light load 5.5 23.0
5.5 3G3MX2-A2055-V1 Heavy load 5.5 30.8 3G3AX-NFI25 40 A 11
Light load 7.5 37.0
7.5 3G3MX2-A2075-V1 Heavy load 7.5 39.6
Light load 11 48.0 3G3AX-NFI26 60 A 17
11 3G3MX2-A2110-V1 Heavy load 11 57.1
Light load 15 68.0 3G3AX-NFI27 80 A 21
15 3G3MX2-A2150-V1 Heavy load 15 62.6
Light load 18.5 72.0
Single- phase 200-V Class 0.1 3G3MX2-AB001-V1 Heavy load 0.1 1.3 3G3AX-NFI21 250 VAC
+10%		 6 A 3 1.5 mA max.
(250 VAC)
Light load 0.2 2.0
0.2 3G3MX2-AB002-V1 Heavy load 0.2 3.0
Light load 0.4 3.6
0.4 3G3MX2-AB004-V1 Heavy load 0.4 6.3 3G3AX-NFI22 10 A 4
Light load 0.55 7.3
0.75 3G3MX2-AB007-V1 Heavy load 0.75 11.5 3G3AX-NFI23 20 A 6
Light load 1.1 13.8
1.5 3G3MX2-AB015-V1 Heavy load 1.5 16.8
Light load 2.2 20.2 3G3AX-NFI24 30 A 9
2.2 3G3MX2-AB022-V1 Heavy load 2.2 22.0
Light load 3.0 24.0
3-phase 400-V class 0.4 3G3MX2-A4004-V1 Heavy load 0.4 1.8 3G3AX-NFI41 480 VAC
+10%		 7 A 2 7.5 mA max.
(480 VAC)
Light load 0.75 2.1
0.75 3G3MX2-A4007-V1 Heavy load 0.75 3.6
Light load 1.5 4.3
1.5 3G3MX2-A4015-V1 Heavy load 1.5 5.2
Light load 2.2 5.9
2.2 3G3MX2-A4022-V1 Heavy load 2.2 6.5
Light load 3.0 8.1 3G3AX-NFI42 10 A 4
3.0 3G3MX2-A4030-V1 Heavy load 3.0 7.7
Light load 4.0 9.4
4.0 3G3MX2-A4040-V1 Heavy load 4.0 11.0 3G3AX-NFI43 20 A 6
Light load 5.5 13.3
5.5 3G3MX2-A4055-V1 Heavy load 5.5 16.9
Light load 7.5 20.0
7.5 3G3MX2-A4075-V1 Heavy load 7.5 18.8
Light load 11 24.0 3G3AX-NFI44 30 A 9
11 3G3MX2-A4110-V1 Heavy load 11 29.4
Light load 15 38.0 3G3AX-NFI45 40 A 11
15 3G3MX2-A4150-V1 Heavy load 15 35.9
Light load 18.5 44.0 3G3AX-
NFI46		 50 A 12

Model Case enclosure rating Terminal size Wire dia. Weight (kg)
3G3AX-NFI21 Plastic, IP00 M4 1.25 mm2 0.5
3G3AX-NFI22 Plastic, IP00 M4 2 mm2 0.6
3G3AX-NFI23 Plastic, IP00 M4 2 mm2, 3.5 mm2 0.7
3G3AX-NFI24 Plastic, IP00 M4 5.5 mm2 0.8
3G3AX-NFI25 Plastic, IP00 M5 8 mm2 1.4
3G3AX-NFI26 Plastic, IP00 M5 14 mm2 1.8
3G3AX-NFI27 Metal, IP00 M6 22 mm2 3.6
3G3AX-NFI41 Plastic, IP00 M4 1.25 mm2, 2 mm2 0.7
3G3AX-NFI42 Plastic, IP00 M4 2 mm2 0.7
3G3AX-NFI43 Plastic, IP00 M4 2 mm2, 3.5 mm2 0.7
3G3AX-NFI44 Plastic, IP00 M4 5.5 mm2 0.8
3G3AX-NFI45 Plastic, IP00 M5 8 mm2 1.4
3G3AX-NFI46 Plastic, IP00 M5 14 mm2 1.6

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

Output Noise Filter 3G3AX-NFO[][]

Reduces noise generated by the Inverter. Connect as close to the Inverter as possible.

Inverter Output noise filter specifications
Voltage class Max. applicable motor capacity [kW] Model Heavy/ Light load mode Max. applicable motor capacity [kW] Rated output current [A] Model Rated voltage Rated input current [A] Weight [kg]
3-phase 200-V
class		 0.1 3G3MX2-A2001-V1 Heavy load 0.1 1.0 3G3AX-NFO01 500 VAC 6 0.7
Light load 0.2 1.2
0.2 3G3MX2-A2002-V1 Heavy load 0.2 1.6
Light load 0.4 1.9
0.4 3G3MX2-A2004-V1 Heavy load 0.4 3.0
Light load 0.75 3.5
0.75 3G3MX2-A2007-V1 Heavy load 0.75 5.0
Light load 1.1 6.0 3G3AX-NFO02 12 0.9
1.5 3G3MX2-A2015-V1 Heavy load 1.5 8.0
Light load 2.2 9.6
2.2 3G3MX2-A2022-V1 Heavy load 2.2 11.0
Light load 3.0 12.0 3G3AX-NFO03 25 2.1
3.7 3G3MX2-A2037-V1 Heavy load 3.7 17.5
Light load 5.5 19.6
5.5 3G3MX2-A2055-V1 Heavy load 5.5 25.0
Light load 7.5 30.0 3G3AX-NFO04 50 3.7
7.5 3G3MX2-A2075-V1 Heavy load 7.5 33.0
Light load 11 40.0
11 3G3MX2-A2110-V1 Heavy load 11 47.0
Light load 15 56.0 3G3AX-NFO05 75 5.7
15 3G3MX2-A2150-V1 Heavy load 15 60.0
Light load 18.5 69.0
Single- phase 200-V
class		 0.1 3G3MX2-AB001-V1 Heavy load 0.1 1.0 3G3AX-NFO01 500 VAC 6 0.7
Light load 0.2 1.2
0.2 3G3MX2-AB002-V1 Heavy load 0.2 1.6
Light load 0.4 1.9
0.4 3G3MX2-AB004-V1 Heavy load 0.4 3.0
Light load 0.55 3.5
0.75 3G3MX2-AB007-V1 Heavy load 0.75 5.0
Light load 1.1 6.0 3G3AX-NFO02 12 0.9
1.5 3G3MX2-AB015-V1 Heavy load 1.5 8.0
Light load 2.2 9.6
2.2 3G3MX2-AB022-V1 Heavy load 2.2 11.0
Light load 3.0 12.0 3G3AX-NFO03 25 2.1
3-phase 400-V
class		 0.4 3G3MX2-A4004-V1 Heavy load 0.4 1.8 3G3AX-NFO01 500 VAC 6 0.7
Light load 0.75 2.1
0.75 3G3MX2-A4007-V1 Heavy load 0.75 3.4
Light load 1.5 4.1
1.5 3G3MX2-A4015-V1 Heavy load 1.5 4.8
Light load 2.2 5.4
2.2 3G3MX2-A4022-V1 Heavy load 2.2 5.5
Light load 3.0 6.9 3G3AX-NFO02 12 0.9
3.0 3G3MX2-A4030-V1 Heavy load 3.0 7.2
Light load 4.0 8.8
4.0 3G3MX2-A4040-V1 Heavy load 4.0 9.2
Light load 5.5 11.1 3G3AX-NFO03 25 2.1
5.5 3G3MX2-A4055-V1 Heavy load 5.5 14.8
Light load 7.5 17.5
7.5 3G3MX2-A4075-V1 Heavy load 7.5 18.0
Light load 11 23.0
11 3G3MX2-A4110-V1 Heavy load 11 24.0
Light load 15 31.0 3G3AX-NFO04 50 3.7
15 3G3MX2-A4150-V1 Heavy load 15 31.0
Light load 18.5 38.0

Note: The maximum frequency for the Output Noise Filter is 400 Hz.

DC Reactor 3G3AX-DL[][][][]

Used to suppress harmonic current generated from the Inverter.
Suppresses harmonic current better than the AC Reactor and can be used with the AC Reactor.

Inverter DC reactor specifications
Voltage
class		 Max.
applicable
motor
capacity
(kW)		 Model Heavy
load:
CT,
Light
load:
VT
mode		 Max.
appli-cable
motor
capacity
(kW)		 Rated
input
current
(A)		 Model Induc-tance
(mH)		 Heat
gene-ration
(W)		 Operating
ambient
temperature/
humidity		 Location
3-phase
200-V
class		 0.1 3G3MX2-
A2001-V1		 Heavy
load *		 0.1 1.0 3G3AX-
DL2002		 21.4 8 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.2 1.2
0.2 3G3MX2-
A2002-V1		 Heavy
load *		 0.2 1.6
Light
load		 0.4 1.9 3G3AX-
DL2004		 10.7
0.4 3G3MX2-
A2004-V1		 Heavy
load *		 0.4 3.3
Light
load		 0.75 3.9 3G3AX-
DL2007		 6.75 10
0.75 3G3MX2-
A2007-V1		 Heavy
load *		 0.75 6.0
Light
load		 1.1 7.2 3G3AX-
DL2015		 3.51
1.5 3G3MX2-
A2015-V1		 Heavy
load *		 1.5 9.0
Light
load		 2.2 10.8 3G3AX-
DL2022		 2.51 13
2.2 3G3MX2-
A2022-V1		 Heavy
load *		 2.2 12.7
Light
load		 3.0 13.9 3G3AX-
DL2037		 1.60 20
3.7 3G3MX2-
A2037-V1		 Heavy
load *		 3.7 20.5
Light
load		 5.5 23.0 3G3AX-
DL2055		 1.11 26
5.5 3G3MX2-
A2055-V1		 Heavy
load *		 5.5 30.8 3G3AX-
DL2075		 0.84 36
Light
load		 7.5 37.0
7.5 3G3MX2-
A2075-V1		 Heavy
load *		 7.5 39.6
Light
load		 11 48.0 3G3AX-
DL2110		 0.59 52
11 3G3MX2-
A2110-V1		 Heavy
load *		 11 57.1
Light
load		 15 68.0 3G3AX-
DL2150		 0.44 60
15 3G3MX2-
A2150-V1		 Heavy
load *		 15 62.6
Light
load		 18.5 72.0 3G3AX-
DL2220		 0.30 63
Single-phase
200-V
Class		 0.1 3G3MX2-
AB001-V1		 Heavy
load *		 0.1 1.3 3G3AX-
DL2002		 21.4 8 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.2 2.0
0.2 3G3MX2-
AB002-V1		 Heavy
load *		 0.2 3.0
Light
load		 0.4 3.6 3G3AX-
DL2004		 10.7
0.4 3G3MX2-
AB004-V1		 Heavy
load *		 0.4 6.3
Light
load		 0.55 7.3 3G3AX-
DL2007		 6.75 10
0.75 3G3MX2-
AB007-V1		 Heavy
load *		 0.75 11.5
Light
load		 1.1 13.8 3G3AX-
DL2015		 3.51
1.5 3G3MX2-
AB015-V1		 Heavy
load *		 1.5 16.8
Light
load		 2.2 20.2 3G3AX-
DL2022		 2.51 13
2.2 3G3MX2-
AB022-V1		 Heavy
load *		 2.2 22.0
Light
load		 3.0 24.0 3G3AX-
DL2037		 1.60 20
3-phase
400-V
class		 0.4 3G3MX2-
A4004-V1		 Heavy
load *		 0.4 1.8 3G3AX-
DL4004		 43.0 10 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.75 2.1 3G3AX-
DL4007		 27.0
0.75 3G3MX2-
A4007-V1		 Heavy
load *		 0.75 3.6
Light
load		 1.5 4.3 3G3AX-
DL4015		 14.0
1.5 3G3MX2-
A4015-V1		 Heavy
load *		 1.5 5.2
Light
load		 2.2 5.9 3G3AX-
DL4022		 10.1 13
2.2 3G3MX2-
A4022-V1		 Heavy
load *		 2.2 6.5
Light
load		 3.0 8.1 3G3AX-
DL4037		 6.4 20
3.0 3G3MX2-
A4030-V1		 Heavy
load *		 3.0 7.7
Light
load		 4.0 9.4
4.0 3G3MX2-
A4040-V1		 Heavy
load *		 4.0 11.0
Light
load		 5.5 13.3 3G3AX-
DL4055		 4.41 26
5.5 3G3MX2-
A4055-V1		 Heavy
load *		 5.5 16.9
Light
load		 7.5 20.0 3G3AX-
DL4075		 3.35 36
7.5 3G3MX2-
A4075-V1		 Heavy
load *		 7.5 18.8
Light
load		 11 24.0 3G3AX-
DL4110		 2.33 52
11 3G3MX2-
A4110-V1		 Heavy
load *		 11 29.4
Light
load		 15 38.0 3G3AX-
DL4150		 1.75 60
15 3G3MX2-
A4150-V1		 Heavy
load *		 15 35.9
Light
load		 18.5 44.0 3G3AX-
DL4220		 1.2 67

* The DC reactor model for the heavy-load mode is selected with reference to the rated current value of a general-purpose motor, which is 85% of the rated output current of the inverter. If you intend to constantly drive a motor whose rated current value exceeds 85% of the rated output current of the inverter, use the DC reactor model selected for the light-load mode.

AC Reactor 3G3AX-AL[][][][]

Connect the AC Reactor if the capacity of the power supply is much larger than that of the Inverter or the power factor is required to be improved.

Inverter DC reactor specifications
Voltage
class		 Max.
applicable
motor
capacity
(kW)		 Model Heavy
load:
CT,
Light
load:
VT
mode		 Max.
appli-cable
motor
capacity
(kW)		 Rated
input
current
(A)		 Model Induc-tance
(mH)		 Heat
gene-ration
(W)		 Operating
ambient
temperature/
humidity		 Location
3-phase
200-V
class		 0.1 3G3MX2-
A2001-V1		 Heavy
load		 0.1 1.0 3G3AX-
AL2025		 2.8 12 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.2 1.2
0.2 3G3MX2-
A2002-V1		 Heavy
load		 0.2 1.6
Light
load		 0.4 1.9
0.4 3G3MX2-
A2004-V1		 Heavy
load		 0.4 3.3
Light
load		 0.75 3.9
0.75 3G3MX2-
A2007-V1		 Heavy
load		 0.75 6.0
Light
load		 1.1 7.2
1.5 3G3MX2-
A2015-V1		 Heavy
load		 1.5 9.0
Light
load		 2.2 10.8 3G3AX-
AL2055		 0.88 25
2.2 3G3MX2-
A2022-V1		 Heavy
load		 2.2 12.7
Light
load		 3.0 13.9
3.7 3G3MX2-
A2037-V1		 Heavy
load		 3.7 20.5 3G3AX-
AL2110		 0.35 50
Light
load		 5.5 23.0
5.5 3G3MX2-
A2055-V1		 Heavy
load		 5.5 30.8
Light
load		 7.5 37.0
7.5 3G3MX2-
A2075-V1		 Heavy
load		 7.5 39.6 3G3AX-
AL2220		 0.18 50
Light
load		 11 48.0
11 3G3MX2-
A2110-V1		 Heavy
load		 11 57.1
Light
load		 15 68.0
15 3G3MX2-
A2150-V1		 Heavy
load		 15 62.6
Light
load		 18.5 72.0 3G3AX-
AL2330		 0.09 85
Single-
phase
200-V
Class		 0.1 3G3MX2-
AB001-V1		 Heavy
load		 0.1 1.3 3G3AX-
AL2025		 2.8 12 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.2 2.0
0.2 3G3MX2-
AB002-V1		 Heavy
load		 0.2 3.0
Light
load		 0.4 3.6
0.4 3G3MX2-
AB004-V1		 Heavy
load		 0.4 6.3
Light
load		 0.55 7.3
0.75 3G3MX2-
AB007-V1		 Heavy
load		 0.75 11.5 3G3AX-
AL2055		 0.88 25
Light
load		 1.1 13.8
1.5 3G3MX2-
AB015-V1		 Heavy
load		 1.5 16.8
Light
load		 2.2 20.2 3G3AX-
AL2110		 0.35 50
2.2 3G3MX2-
AB022-V1		 Heavy
load		 2.2 22.0
Light
load		 3.0 24.0
3-phase
400-V
class		 0.4 3G3MX2-
A4004-V1		 Heavy
load		 0.4 1.8 3G3AX-
AL4025		 7.7 12 -10 to 50°C
20% to 90%		 At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load		 0.75 2.1
0.75 3G3MX2-
A4007-V1		 Heavy
load		 0.75 3.6
Light
load		 1.5 4.3
1.5 3G3MX2-
A4015-V1		 Heavy
load		 1.5 5.2
Light
load		 2.2 5.9
2.2 3G3MX2-
A4022-V1		 Heavy
load		 2.2 6.5 3G3AX-
AL4055		 3.5 25
Light
load		 3.0 8.1
3.0 3G3MX2-
A4030-V1		 Heavy
load		 3.0 7.7
Light
load		 4.0 9.4
4.0 3G3MX2-
A4040-V1		 Heavy
load		 4.0 11.0 3G3AX-
AL4110		 1.3 50
Light
load		 5.5 13.3
5.5 3G3MX2-
A4055-V1		 Heavy
load		 5.5 16.9
Light
load		 7.5 20.0
7.5 3G3MX2-
A4075-V1		 Heavy
load		 7.5 18.8
Light
load		 11 24.0 3G3AX-
AL4220		 0.74 60
11 3G3MX2-
A4110-V1		 Heavy
load		 11 29.4
Light
load		 15 38.0 3G3AX-
AL4330		 0.36 90
15 3G3MX2-
A4150-V1		 Heavy
load		 15 35.9
Light
load		 18.5 44.0

last update: March 4, 2024

Product Category

Products

About Us

Solutions

Privacy

Services

Resources

Omron Automation is an industrial automation partner that creates, sells and services fully integrated automation solutions that include sensing, control, safety, vision, motion, robotics and more.

Follow Us

Youtube Facebook Linkedin
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
