Connector-Terminal Block Conversion Units for General-purpose Devices

XW2R (General-purpose devices)

Many Variations in Connectors and Number of Poles

last update: April 1, 2024

(Unit: mm)

With power supply terminals

e-CON Type

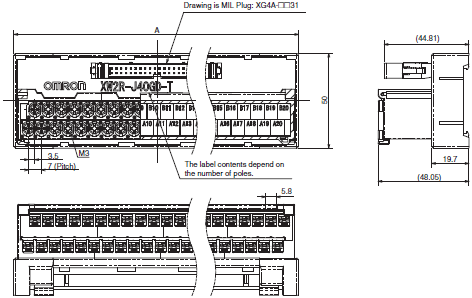

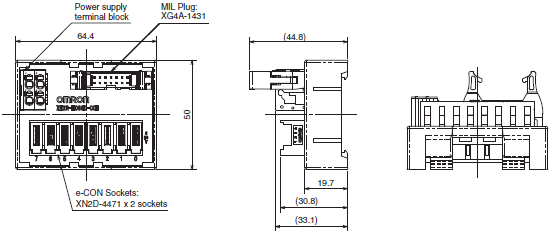

XW2R (General-purpose devices) Dimensions 2

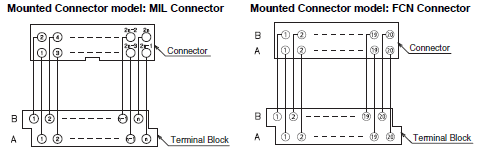

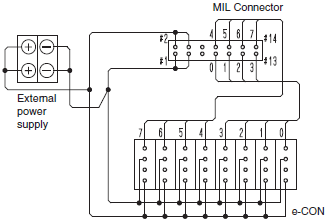

Wiring Diagram

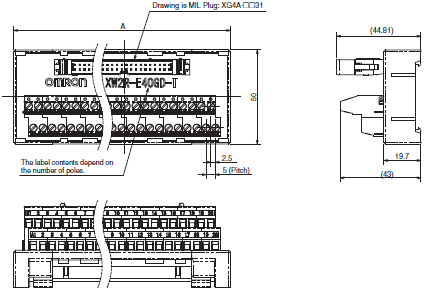

XW2R (General-purpose devices) Dimensions 3

Without power supply terminals

Phillips screw

XW2R (General-purpose devices) Dimensions 5

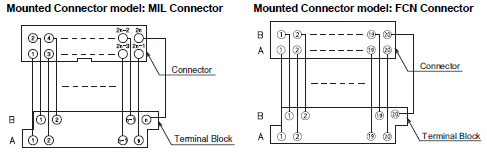

Wiring Diagram

XW2R (General-purpose devices) Dimensions 6

Slotted screw (rise up)

XW2R (General-purpose devices) Dimensions 7

Wiring Diagram

XW2R (General-purpose devices) Dimensions 8
