Industrial Automation

CJ1W-CLK

CJ-series Controller Link Units

CJ1W-CLK

New Controller Link Units, Now with 4,000 Send Words

last update: July 8, 2024

International Standards

The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, CE: EC Directives, and KC: KC Registration.
Contact your OMRON representative for further details and applicable conditions for these standards.

Controller Link Units

Unit clas- sifi- cation	Product name	Specifications				No. of unit num- bers allo- cated	Current consump- tion (A)		Model	Stand- ards
Unit clas- sifi- cation	Product name	Communi- cations cable	Communi- cations type	Duplex sup- port	Max. Units mountable per CPU Unit	No. of unit num- bers allo- cated	5 V DC	24 V DC	Model	Stand- ards
CJ1 CPU Bus Unit	Controller Link Unit	Wired shielded twisted-pair cable *	Data links and message service	No	8	1	0.35	---	CJ1W-CLK23	UC1, N, L, CE

Note: This unit cannot be used with the Machine Automation Controller NJ-series.
* Use the following special cable for shielded, twisted-pair cable.
• ESVC0.5×2C-13262 (Bando Electric Wire: Japanese Company)
• ESNC0.5×2C-99-087B (JMACS Japan Co., Ltd.: Japanese Company)
• ESPC 1P×0.5mm² (Nagaoka Electric Wire Co.,Ltd.: Japanese Company)
• Li2Y-FCY2×0.56qmm (Kromberg & Schubert, Komtec Department: German Company)
• 1×2×AWG-20PE+Tr.CUSN+PVC (Draka Cables Industrial: Spanish Company)
• #9207 (Belden: US Company)

Accessories

There is no accessory for the CJ series Controller Link Unit.

Controller Link Support Boards (No longer available to order)

Product name	Specifications		Accessories	Model	Stand- ards
Product name	Communica- tions cable	Communica- tions type	Accessories	Model	Stand- ards
Controller Link Support Board for PCI Bus	Wired shielded twisted-pair cable	Data links and message service	• CD-ROM ×1 * • INSTALLATION GUIDE (W467) ×1 • Communications connector ×1	3G8F7-CLK23-E	CE, KC

* The CD-ROM contains the following software.
• Controller Link (PCI) Driver
• FinsGateway Version 2003 (PCI-CLK Edition)
• FinsGateway Version 3 (PCI-CLK Edition)
• Setup Diagnostic Utility
• C Library

Repeater Units

Name	Specifications	Model	Standards
Controller Link Repeater Unit	Wire-to-Wire Model	CS1W-RPT01	UC1, CE
	Wire-to-Optical (H-PCF) Model *1	CS1W-RPT02
	Wire-to-Optical (GI) Model *2	CS1W-RPT03

Using Repeater Units enables T-branches and long-distance wiring for Wired Controller Link networks, 62-node configurations, and converting part of the network to optical cable.
*1. When using wire-to-optical (H-PCF) cable, use a H-PCF cable (for both Controller Link and SYSMAC LINK) or a H-PCF
optical fiber cable with connector.
*2. When using wire-to-optical (GI) cable, use a GI optical cable (for Controller Link).

Relay Terminal Block

Name	Specifications	Model	Standards
Relay Terminal Block for Wired Controller Link Units	Used for Wired Controller Link Units (set of 5)	CJ1W-TB101	---

Controller Link Units can be replaced without stopping the communications of the entire network if a Relay Terminal Block is installed in advance on the Unit in a Wired Controller Link network. Relay Terminal Blocks cannot be used on Controller Link Support Boards.

H-PCF Cables and Optical Connectors

Name	Application/construction		Specifications		Model	Standards
Optical Fiber Cables	Controller Link, SYSMAC LINK, SYSBUS	1. Optical fiber single-core cord 2. Tension member (plastic-sheathed wire) 3. Filler (plastic) 4. Filler surrounding signal wires (plastic, yarn, or fiber) 5. Holding tape (plastic) 6. Heat-resistant PV sheath	Two-core optical cable with tension member	Black *1 10 m	S3200-HCCB101	---
				Black *1 50 m	S3200-HCCB501
				Black *1 100 m	S3200-HCCB102
				Black *1 500 m	S3200-HCCB502
				Black *1 1000 m	S3200-HCCB103
Optical Connectors (Crimp-cut)	CS1W-RPT02		Half lock		S3200-COCF2571
Optical Connectors (Crimp-cut)	CS1W-RPT02		Full lock		S3200-COCF2071

*1. Orange specifications are Discontinuation.

H-PCF Optical Fiber Cables with Connectors (Black Composite Cables with Two-Optical Lines and Two Power Supply Lines)

Application	Appearance	Model	Standards
Controller Link, SYSMAC LINK		S3200-CN[][][]-20-20	---
		S3200-CN[][][]-20-25
		S3200-CN[][][]-25-25

Optical connectors for H-PCF Optical Cables with Connectors are adhesive polished.

Cable Length

The following cable lengths are available: 2 m, 5 m, 15 m, 20 m. For lengths of 21 m or more, contact your OMRON sales representative.

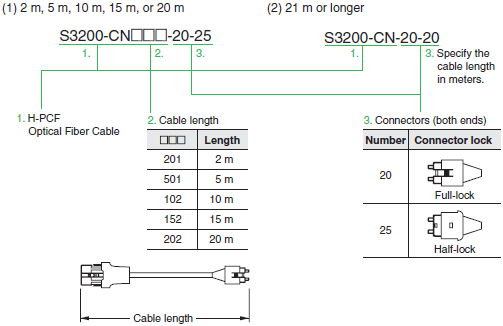

Model Numbers

Optical Connector Assembly Tool

Name	Applicable Unit	Model	Manufacturer	Standards
Optical Fiber Assembly Tool *	This tool is used on site for mounting crimp-cut connectors and hard plastic-clad silica optical fiber for optical transmission systems of SYSMAC C-series SYSBUS, SYSMAC LINK, and Controller Link.	CAK-0057	Sumitomo Electric Industries, Ltd.	---

* There is a risk of quality problems when using cables assembled by typical users, so we recommend purchasing
cables with preattached connectors or having a qualified technician assemble the cables.

last update: July 8, 2024
