G3F / G3FD
Solid State Relays G3[]-VD
Solid State Relays Featuring the Same Profile as MY Power Relays
Related Contents
Application Solutions
last update: April 3, 2023
Model Number Structure

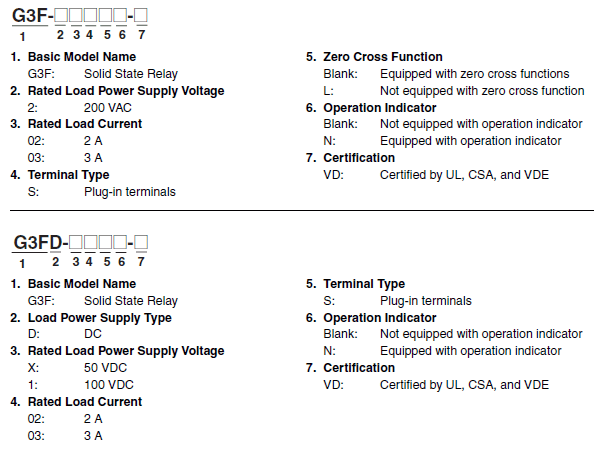

Model Number Legend
Ordering Information
List of Models
| Isolation | Zero cross
function |
Indicator | Rated output load | Rated input
voltage |
Model |
|---|---|---|---|---|---|
| Photocoupler | Yes | Yes | 3 A at 100 to 240 VAC *1 | 5 to 24 VDC | G3F-203SN-VD DC5-24 |
| 2 A at 100 to 240 VAC *1 | 100/110 VAC | G3F-202SN-VD AC100/110 | |||
| 200/220 VAC | G3F-202SN-VD AC200/220 | ||||
| Phototriac
coupler |
No | 3 A at 100 to 240 VAC *1 | 5 VDC | G3F-203SLN-VD DC5 | |
| 12 VDC | G3F-203SLN-VD DC12 | ||||
| 24 VDC | G3F-203SLN-VD DC24 | ||||
| Photocoupler | - | 3 A at 4 to 48 VDC *2 | 5 to 24 VDC | G3FD-X03SN-VD DC5-24 | |
| 2 A at 5 to 110 VDC *3 | 100/110 VAC | G3FD-102SN-VD DC5-24 | |||
| 200/220 VAC | G3FD-102SN-VD AC100/110 | ||||
| 5 to 24 VDC | G3FD-102SN-VD AC200/220 | ||||
| Photocoupler | Yes | No | 3 A at 100 to 240 VAC *1 | 4 to 24 VDC | G3F-203S-VD DC4-24 |
| Phototriac
coupler |
No | 5 VDC | G3F-203SL-VD DC5 | ||
| 12 VDC | G3F-203SL-VD DC12 | ||||
| 24 VDC | G3F-203SL-VD DC24 | ||||
| Photocoupler | - | 3 A at 4 to 48 VDC *2 | 4 to 24 VDC | G3FD-X03S-VD DC4-24 | |
| 2 A at 5 to 110 VDC *3 | G3FD-102S-VD DC4-24 |
Note: 1. Product is labelled “240 VAC”.
2. Product is labelled “48 VDC”.
3. Product is labelled “110 VDC”.
4. When ordering, specify the rated input voltage.
2. Product is labelled “48 VDC”.
3. Product is labelled “110 VDC”.
4. When ordering, specify the rated input voltage.
Accessories (Order Separately)
Connection Sockets
| Classification | Terminal type | Appearance | Model |
|---|---|---|---|
| Front-mounting | Screw terminals
(Terminal cover structure) * |
 |
PYFZ-08 |
| Screw terminals
(finger protection structure) |
 |
PYFZ-08-E | |
| Screw terminals
(finger protection structure) |
 |
PYF08A-N | |
| Push-In Plus terminal blocks
(Socket combination) |
 |
PYF-08-PU | |
| Back-mounting | Relays with PCB Terminals |  |
PY08-02 |
* Terminal cover type is PYCZ-C08. (Order Separately) For details, refer to the "Terminal Covers".
Refer to Common Socket and DIN Track Products for details on Connection Sockets and DIN Track products (sold separately) of your OMRON website.
Refer to PYF[][]-PU/P2RF-[][]-PU for details on A Push-In Plus Terminal Block Socket of your OMRON website.
Hold-down Clips
| Applicable Socket | Hold-down Clips | ||
|---|---|---|---|
| Classification | Terminal type | Model | Model |
| For front-mounting | Screw terminals | PYFZ-08 | PYC-A1 * |
| Screw terminals (finger protection structure) | PYFZ-08-E | ||
| Screw terminals (finger protection structure) | PYF08A-N | ||
| For back-mounting | Relays with PCB Terminals | PY08-02 | PYC-P |
* PYC-A1 is provided with two clips.
Terminal Covers
| Applicable Socket | Terminal Covers | |
|---|---|---|
| Model | Appearance | Model |
| PYFZ-08 |  |
PYCZ-C08
(2 pcs/set) |
Note: Use these covers in a combination with PYFZ-08.
DIN Track Mounting Parts
| Classification/division | Type | Appearance | Model | |
|---|---|---|---|---|
| For front-mounting | DIN Tracks | Shallow type, total length: 1 m |  |
PFP-100N |
| Shallow type, total length: 0.5 m | PFP-50N | |||
| Deep type, total length: 1 m |  |
PFP-100N2 | ||
| End Plate |  |
PFP-M | ||
| Spacer |  |
PFP-S | ||
