TL-LP / LY
Long-distance Proximity Sensor
Long-distance Model with a Sensing distance of 50 mm.
Related Contents
Application Solutions
last update: November 12, 2012

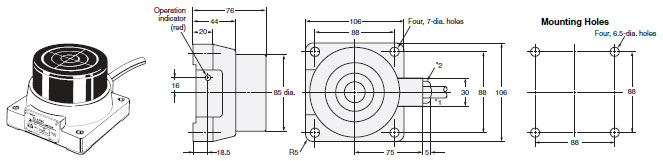

(Unit: mm)
Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.
TL-LP50
TL-LY50
*1. Vinyl cabtire cable: TL-LP50: 9.4-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.75 mm2, Insulator diameter: 2.8 mm), Standard length: 1 m
TL-LY50: 9.0-dia. vinyl-insulated round cable with 2 conductors
(Conductor cross section: 0.75 mm2, Insulator diameter: 2.8 mm), Standard length: 1 m
*2. Remove the hexagon nut if a PF1/2 cable protective tube is applied.
(Conductor cross section: 0.75 mm2, Insulator diameter: 2.8 mm), Standard length: 1 m
TL-LY50: 9.0-dia. vinyl-insulated round cable with 2 conductors
(Conductor cross section: 0.75 mm2, Insulator diameter: 2.8 mm), Standard length: 1 m
*2. Remove the hexagon nut if a PF1/2 cable protective tube is applied.
