Unlock reliability with NYE Basic Panel PC built to last

last update: January 5, 2026

Performance Specifications

Item			NYE[]-[]-15WR[]
Main system	CPU	CPU type	Intel Atom® x5-E3940
		Cores/Threads	4/4
		CPU base frequency	1.60 GHz
		Maximum turbo frequency	1.80 GHz
		Cache	2 MB
		Cooling details	Passive cooling (fanless)
		Intel CPU category	Industrial (100% operation minimal 10yr)
	Memory	Memory size	4 GB
		Memory type	DDR3L Non-ECC
		Speed grade	1866 MT/s
		CAS latency	CL13
	Graphics controller		Intel® HD Graphics 500
Operating system	Windows OS		Windows 10 IoT Enterprise 2021 LTSC - 64 bit
Storage devices	CFast		128 GB, CFast 3DTLC
Connectors	Power connector		24 VDC
	RS-232C		Standard SUBD9 connector (Isolated)
	Ethernet connectors	Number of ports	2 × RJ45 Gb Ethernet interface connectors
		Physical layer	10BASE-T, 100BASE-TX, 1000BASE-T
		Maximum transmission distance between Ethernet switch and node	100 m
	USB2.0 Type-A	Number of ports	2
		Maximum current	500 mA at 5 VDC
		Maximum cable length	5 m
	USB3.0 Type-A	Number of ports	1
		Maximum current	900 mA at 5 VDC
		Maximum cable length	3 m
Battery	Model		CJ1W-BAT01
Battery	Service life		Service life: 5 years at 25°C
LED			PWR, ERR

Display

Item		Specifications
Item		NYE[]-[]-15WR[]	NYE[]-[]-12WR[]	NYE[]-[]-09WR[]	NYE[]-[]-07WR[]
*Display panel 1**	Display device	TFT LCD
	Screen size	15.4 inches	12.1 inches	9.0 inches	7.0 inches
	Resolution (horizontal × vertical)	1,280 × 800 pixels at 60 Hz		800 × 480 pixels at 60 Hz
	Colors	16,770,000 colors (24 bit full colors)
	Effective display area	331 × 207 mm (horizontal × vertical)	261 × 163 mm (horizontal × vertical)	197 × 118 mm (horizontal × vertical)	152 × 91 mm (horizontal × vertical)
	View angles	Left: 60°, Right: 60°, Top: 60°, Bottom: 60°
Touch	Technology	Resistive
	Touch resolution	16,384 × 16,384
	Life	1,000,000 operations minimum
	Single touch	Yes
Backlight	Life	50,000 hours min. *2
	*Brightness adjustment 3**	100 levels
	Type	LED
Display layer	Status LED	Status of the Panel PC. Lit green: Normal operation, Lit red: Error

*1. There may be some defective pixels in the display. This is not a fault as long as the number of defective light and dark pixels fall within the following standard range: light and dark pixels 10 or less. There must not be 3 adjacent light/dark pixels.
*2. This is the estimated time before brightness is reduced by half at room temperature.
The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very low, it causes flickering, or the screen will be too dark to use.

Electrical Specifications

Item	Specifications
Item	NYE[]-[]-15WR[]	NYE[]-[]-12WR[]	NYE[]-[]-09WR[]	NYE[]-[]-07WR[]
Rated power supply voltage	24 VDC
Allowable power supply voltage range	20.4 to 28.8 VDC
Power supply standard	SELV
Grounding method	Ground to less than 100 Ω
Inrush current	0.25 A/1 s max, electronically controlled
Overvoltage category	JIS B3502 and IEC 61131-2: Category II
EMC immunity level	IEC 61131-2: Zone B
RTC accuracy	At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life	100,000 operations
Power consumption	34 W	38 W	30 W	28 W

Environmental Specifications

Item		Specifications
Operation environment	Ambient operating temperature	0 to 50°C *1
	Ambient storage temperature	-20 to +60°C *1
	Ambient operating humidity	10% to 90% (with no condensation) *1
	Ambient storage humidity	10% to 90% (with no condensation) *1
	Operating atmosphere	No corrosive gases
	Altitude	2,000 m max.
	Noise resistance (During operation)	Conforms to IEC 61000-4-4, 2kV (power lines)
	Vibration resistance (During operation)	The vibration resistance depends on the storage device(s): • For a Panel PC with a CFast storage devices: 5 to 8.4Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s² for 100 minutes each in X, Y and Z directions. Conforms to IEC 60068-2-6.
	Shock resistance (During operation)	Conforms to IEC 60068-2-27 147 m/s², 3 times each in X, Y and Z directions
	Installation method	Mount on panel
	Material finish	NYE[][]-[][][][][]-[][]WR1200 Housing black aluminium, Frontsheet black
	Degree of protection	Front of Monitor: IP65 or the equivalent. The Panel PC may not operate properly in locations subjected to oil splashes for extended periods of time.
	Pollution degree	JIS B3502 and IEC 61131-2: 2 or less and IEC 61010-2-201: 2 or less.
*International standards 2**		UL61010-2-201/CSA C22.2 NO.61010-2-201:14 3 EMC Directive (2004/108/EC) EN 61131-2:2007 IP65 oil-proof, UL Type 4X 4 (front panel Only)

*1. The maximum ambient operating temperature and ambient humidity are specified per storage device type.
The following graphs provide ambient temperature and humidity details per storage device type and the conditions for storage.

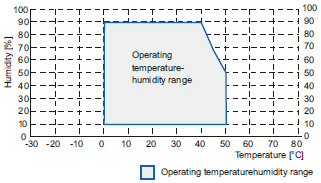

• Operate the Panel PC with a CFast card within the ambient temperature and humidity ranges as shown in the following graph.

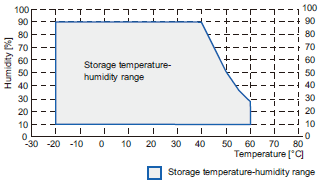

• Store the Panel PC within the ambient temperature and humidity ranges as shown in the following graph.

Ambient operating temperature specifications for model NYE2A-[]0.
This Panel PC has an Intel® Atom® x5-E3940 CPU.

Product Orientation	Mounting Angle	Storage device type
Product Orientation	Mounting Angle	CFast Card
Landscape	0° to 45°	0 to 40°C
	45° to 85°	0 to 45°C
	90° ±5°	0 to 50°C
	95° to 135°	0 to 45°C

*2. Check with your OMRON representative or refer to the following OMRON website for the latest information on the applicable standards for each model.
*3. Use power supply Class 2 to conform to UL Standards.
*4. Use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately) to conform to UL Type 4X.
