SCARA Robot

i4L

New i4L robot for precision machining, assembly, and material handling

ACE software is available to download from the Omron US website.

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: March 2, 2026

(Unit: mm)

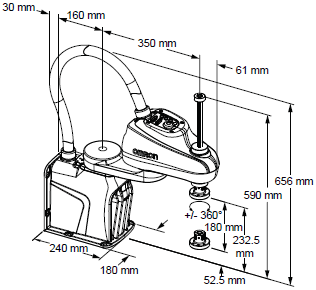

Robot Dimensions

i4-350L

i4-450L

i4-550L

i4-550L (350 mm Z)

Note:1. There must be at least 183 mm of clearance from the Primary Interface Panel connectors to provide adequate space for cables.
2. The z-axis quill has a hollow shaft design and can be utilized for routing cables and pneumatic lines to an end-effector.
The inner diameter of this hollow shaft is 11 mm.
