Industrial Automation

MX-Z2000H-V1 Series

Fiber Laser Marker

MX-Z2000H-V1 Series

Great for either deep or shallow engraving in metals, marking on plastics/resins or plastic films, and for fine processing. Mark anything from electronic parts to automotive parts.

last update: July 12, 2021

(1) Fiber Laser Marker

Marking area	Working distance	Model
90 × 90 mm	170 ±10 mm	MX-Z2000H-V1
160 × 160 mm	220 ±10 mm	MX-Z2050H-V1
160 × 160 mm	220 ±10 mm	MX-Z2055H-V1 *

* Faster marking for resins and plastics films (It is a specification with a thicker marking line width)

Optional Products (Sold Separately)

An activation key is required to use EE mode (Energy Enhanced Mode)

Description	Model
Energy Enhanced mode (License)	MX-9230

(2) Controller power supply cable

Appearance	Item	Length	Model
	(PSE, UL) plug type B	2.9 m	MX-9301
	(VDE, AS) plug type F	2.9 m	MX-9302

Note: The MX-9301 can be used as a PSE (Japan) or UL (USA)/CSA (Canada) compliant cable.
The MX-9302 can be used as a VDE (Germany) or AS (Australia) compliant cable.
When using this product in a country or region that cannot use the MX-9301/MX-9302 prepare the appropriate cable
suitable for use in your country or region according to country/regional regulations.

(3) Peripherals used in the basic system configuration

The following peripherals are used in the basic system configuration. Prepare them as necessary.

Item name	Specification
Monitor	• DVI-D input specification • VGA input specification (15-pin, 3 rows) Number of pixels: 1,024 × 768 pixels or more (Recommended)
Keyboard	USB connector specification (standard-A connector in rear face of controller)
Mouse	USB connector specification (standard-A connector in rear face of controller)

(4) External control cable

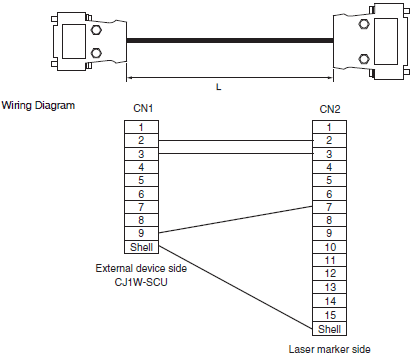

RS-232C cable (connected to CJ series)

A cable that connects to the controller RS-232C / RS-422A serial port (D-sub-15-pin connector).

Appearance	Length (L)	Model
	5 m	MX-9160-5M

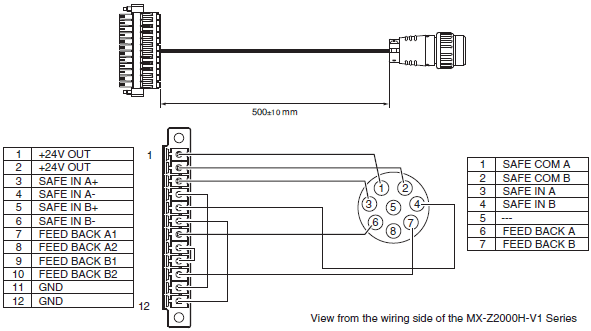

Interlock conversion cable for MX-Z2000H series

By using MX-9161 for the MX-Z2000H series interlock connector, it is possible to make it compatible with the MX-Z2000H-V1 connector.

Appearance	Model
	MX-9161

Replacement and maintenance parts

Appearance	Item	Model
	Air filter for controller	MX-9011
	For MX-Z2000H series fan for marker head	MX-9022
	For MX-Z2000H series fan for marker controller	MX-9023
	For MX-Z2000H series cover glass bracket (W)	MX-9034
	Cover glass	MX-9031
	Bracket releaser	MX-9032
	Marker head power supply cable	MX-9410
	Marker head control cable	MX-9411

Note: 1. These are dedicated parts for the MX-Z2000H-V1 series and MX-Z2000H series.
2. For parts replacement, refer to Fiber Laser Marker MX-Z2000H Series Setup Manual (Man. No. Z415).
3. Be sure to use replacement parts meeting the above specifications. Use of a part not meeting the applicable
specification may cause the system to fail. If you have any question, contact OMRON.

Finder function option equipment

Please refer to Finder Option catalogue (Cat. No. Q255) to select image processing system.

Item	Description	Model
Camera attachment	For MX-Z2000	MX-9150
Camera attachment	For MX-Z2050/Z2055	MX-9151
Camera mount	For FQ2 camera	MX-915A-FQ2
	For FZ/FH camera	MX-915A-FZ
	For FZ/FH camera (500 M pixels)	MX-915A-S5M2

Masking set

This product is to be used according to the built-in form when incorporating laser marker MX-Z2000H series into equipment compatible with machine instructions (2006/42/EC) EN60204-1.

Description	Model
Button operation part (white) x 2, light-shielding tape, control stop button cover	MX-9190

Protective Goggles

Use protective goggles with an optical density (OD value) of 6 or more for a wavelength of 1064 nm and which can be used to confirm laser radiation warnings.
