R88M-1A[] / R88D-1SAN[]-ECT

AC Servo System 1S-series with Safety Functionality

R88M-1A[] / R88D-1SAN[]-ECT

Safer environment and higher productivity

(Unit: mm)

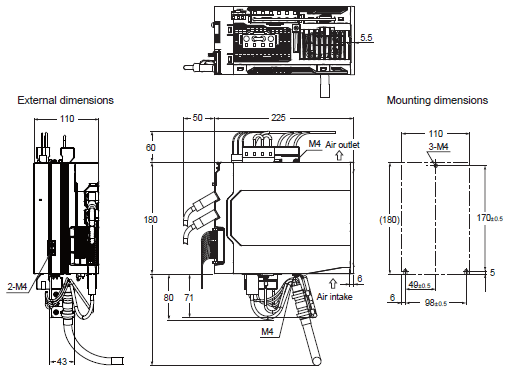

AC Servo Drives with Built-in EtherCAT Communications [1S-series with Safety Functionality]

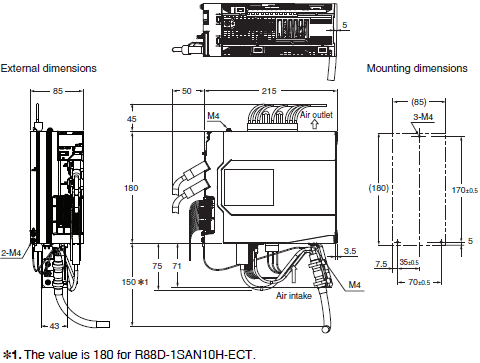

Single-phase/3-phase 200 VAC: R88D-1SAN02H-ECT/-1SAN04H-ECT/-1SAN08H-ECT (200 to 750 W)
3-phase 200 VAC: R88D-1SAN10H-ECT (1 kW)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 2

Single-phase/3-phase 200 VAC: R88D-1SAN15H-ECT (1.5 kW)
3-phase 200 VAC: R88D-1SAN20H-ECT/-1SAN30H-ECT (2 to 3 kW)
3-phase 400 VAC: R88D-1SAN10F-ECT/-1SAN15F-ECT/-1SAN20F-ECT/-1SAN30F-ECT (1 to 3 kW)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 3

AC Servomotors [1S-series with Safety Functionality]

3,000-r/min Servomotors (200 V)

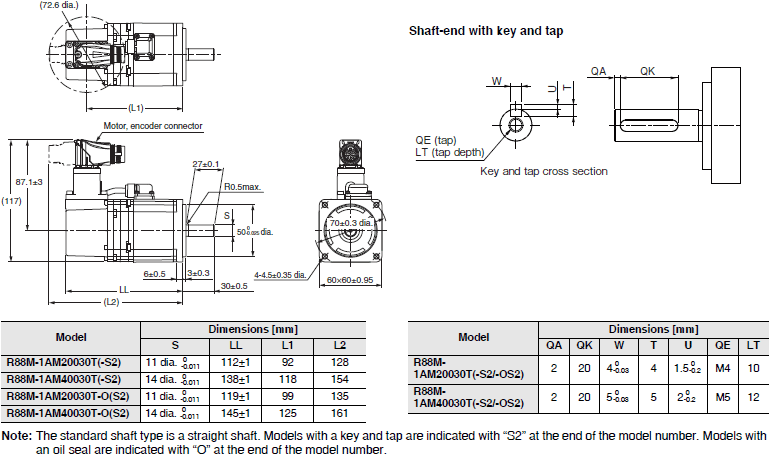

200 W/400 W (without Brake)
R88M-1AM20030T(-O/-S2/-OS2), R88M-1AM40030T(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 6

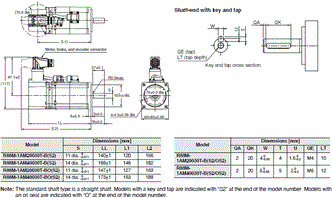

200 W/400 W (with Brake)
R88M-1AM20030T-B(O/S2/OS2), R88M-1AM40030T-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 7

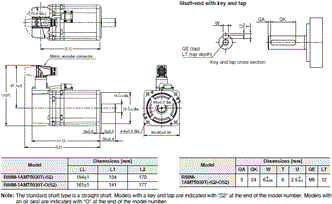

750 W (without Brake)
R88M-1AM75030T(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 8

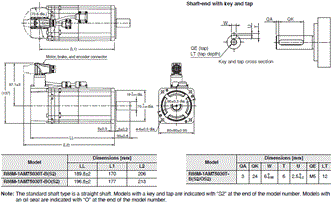

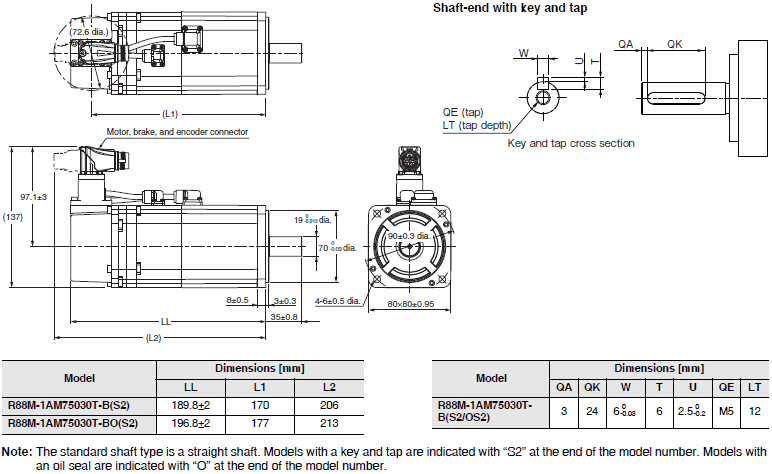

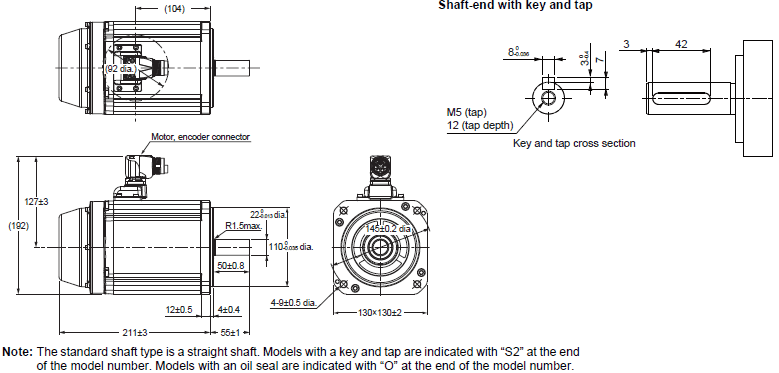

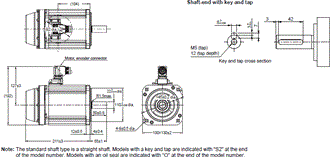

750 W (with Brake)
R88M-1AM75030T-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 9

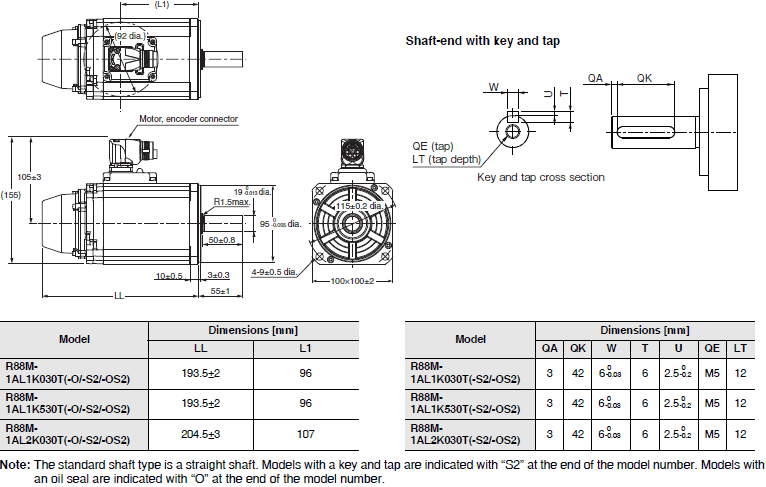

1 kW/1.5 kW/2 kW (without Brake)
R88M-1AL1K030T(-O/-S2/-OS2), R88M-1AL1K530T(-O/-S2/-OS2), R88M-1AL2K030T(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 10

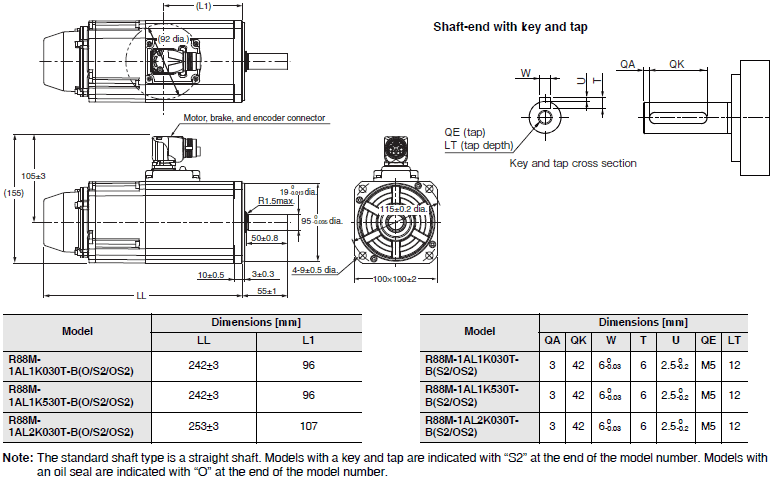

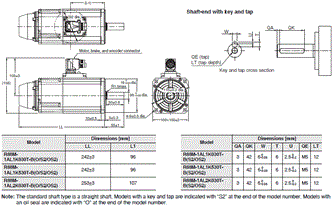

1 kW/1.5 kW/2 kW (with Brake)
R88M-1AL1K030T-B(O/S2/OS2), R88M-1AL1K530T-B(O/S2/OS2), R88M-1AL2K030T-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 11

2.6 kW (without Brake)
R88M-1AL2K630T(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 12

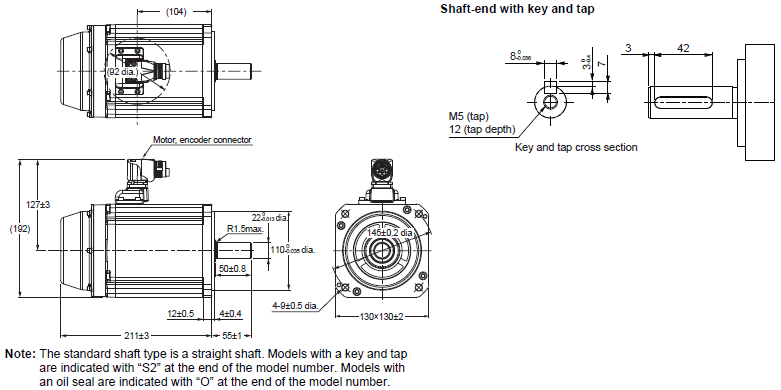

2.6 kW (with Brake)
R88M-1AL2K630T-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 13

3,000-r/min Servomotors (400 V)

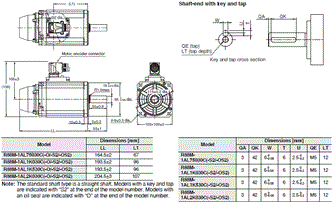

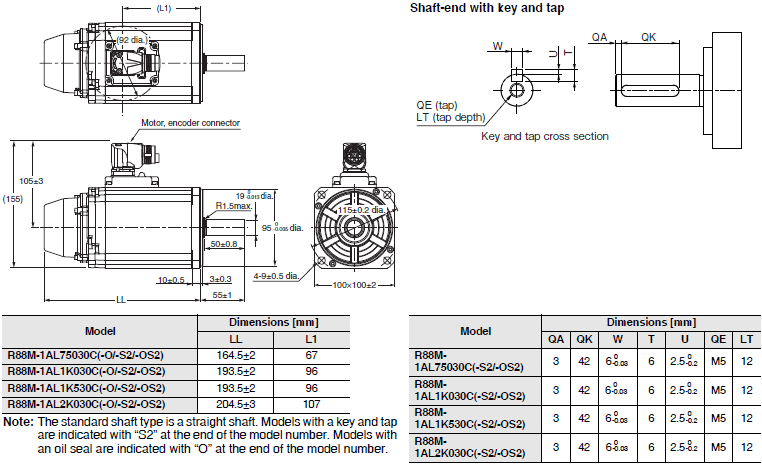

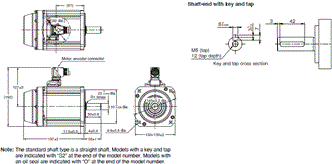

750 W/1 kW/1.5 kW/2 kW (without Brake)
R88M-1AL75030C(-O/ -S2/ -OS2), R88M-1AL1K030C(-O/ -S2/ -OS2)
R88M-1AL1K530C(-O/ -S2/ -OS2), R88M-1AL2K030C(-O/ -S2/ -OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 15

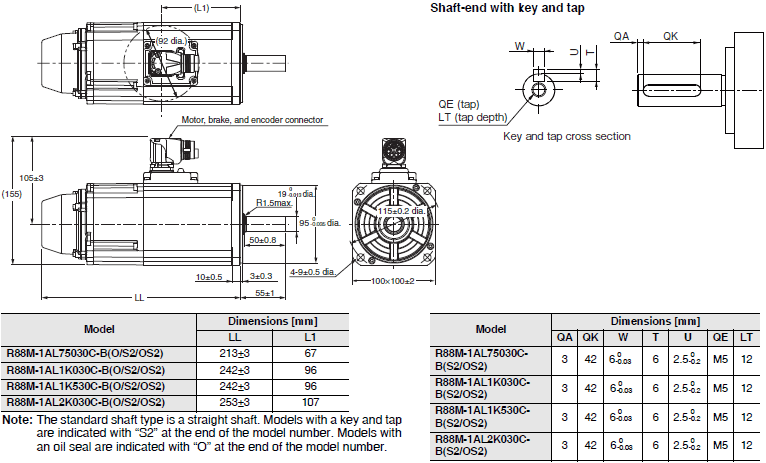

750 W/1 kW/1.5 kW/2 kW (with Brake)
R88M-1AL75030C-B(O/S2/OS2), R88M-1AL1K030C-B(O/S2/OS2)
R88M-1AL1K530C-B(O/S2/OS2), R88M-1AL2K030C-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 16

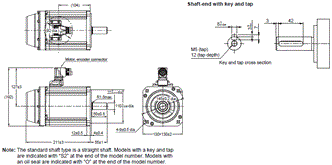

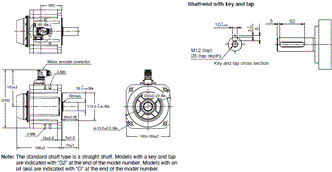

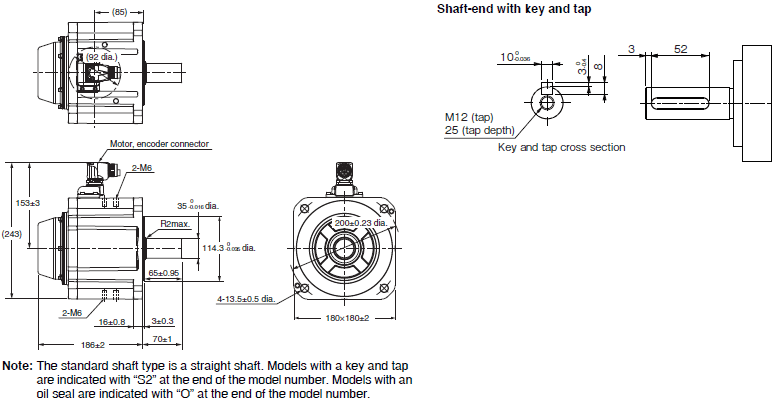

3 kW (without Brake)
R88M-1AL3K030C(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 17

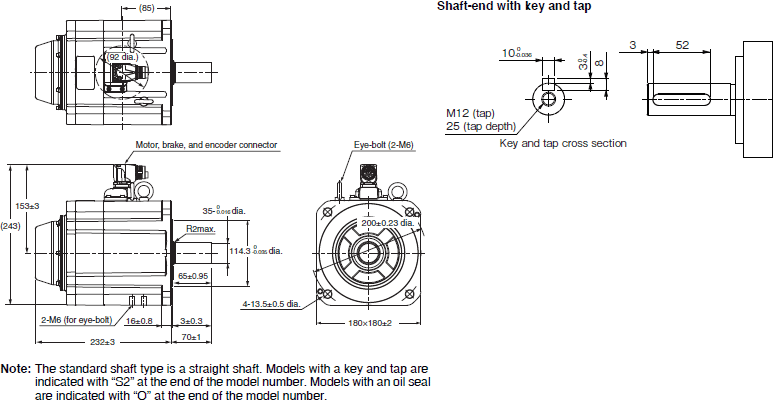

3 kW (with Brake)
R88M-1AL3K030C-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 18

1,500-r/min Servomotors (200 V/400 V)

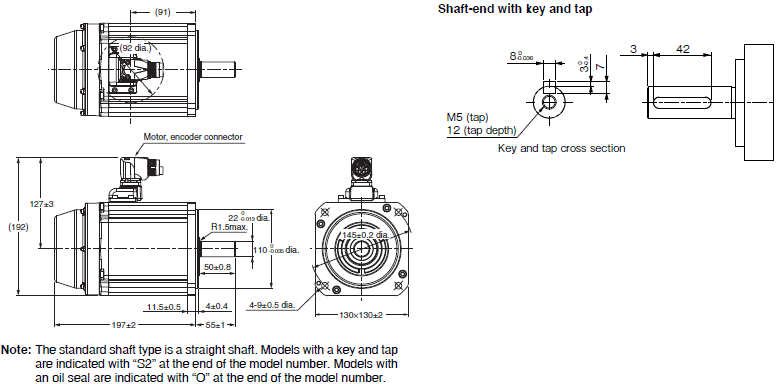

1.5 kW (without Brake)
R88M-1AM1K515T(-O/-S2/-OS2)
R88M-1AM1K515C(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 20

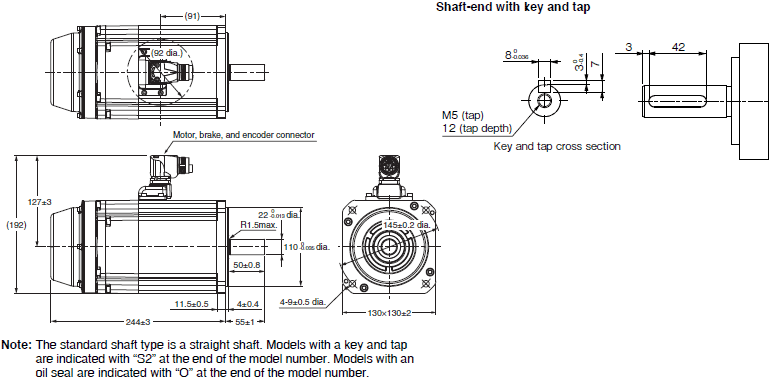

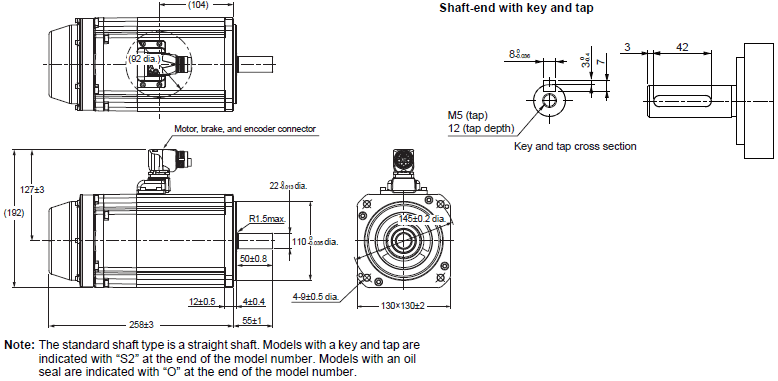

1.5 kW (with Brake)
R88M-1AM1K515T-B(O/S2/OS2)
R88M-1AM1K515C-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 21

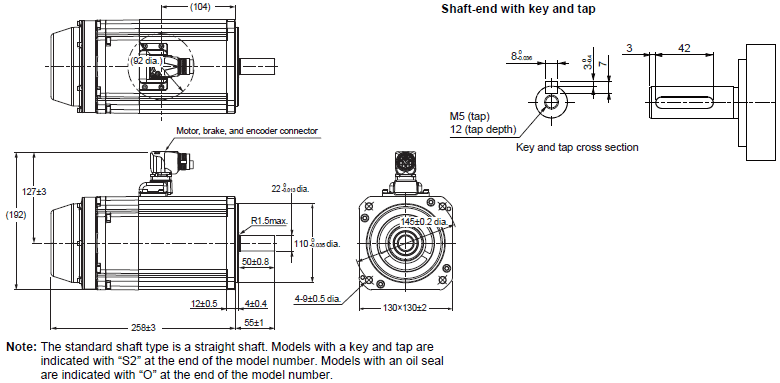

2.7 kW (without Brake) R88M-1AM2K715T(-O/-S2/-OS2)
3 kW (without Brake) R88M-1AM3K015C(-O/-S2/-OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 22

2.7 kW (with Brake) R88M-1AM2K715T-B(O/S2/OS2)
3 kW (with Brake) R88M-1AM3K015C-B(O/S2/OS2)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 23

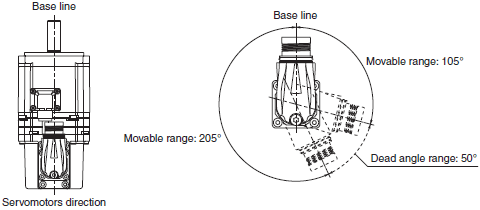

Cable Outlet Direction of Integrated Connector

The cable outlet direction of the servomotor for connector type M17 or M23 can be selected. The below shows the selectable range.
The change of the cable outlet direction shall be up to five times. For a procedure of the change of the cable outlet direction, refer to the AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications and Safety Functionality User’s Manual (I621).

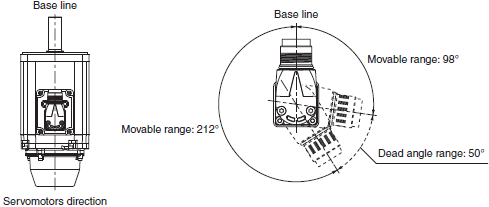

Cable Outlet Direction of Connector Type M17

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 25

Cable Outlet Direction of Connector Type M23

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 26

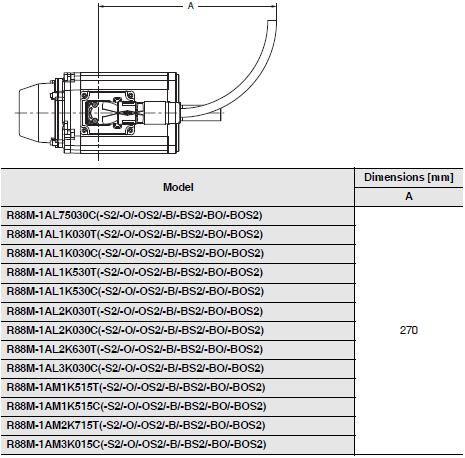

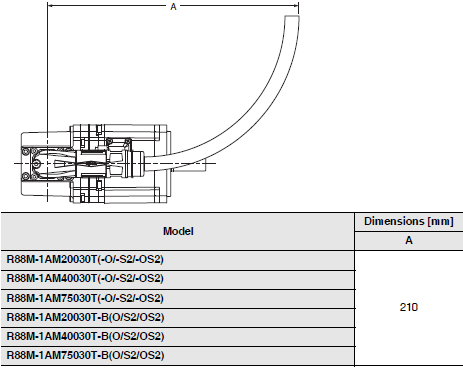

Cable Wiring Dimension for a Case of Servo Motor Installing

The Integrated cable wiring dimensions are shown below the table according to connector type for Servomotors.
The dimensions from the rotation center of the Integrated connector to the Integrated cable surrounding are indicated as A.

Servo Motor for Connector Type M17

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 28

Servo Motor for Connector Type M23

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 29

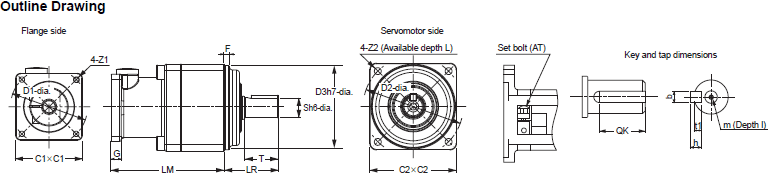

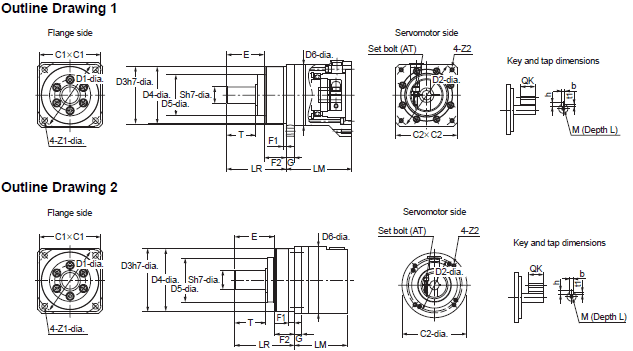

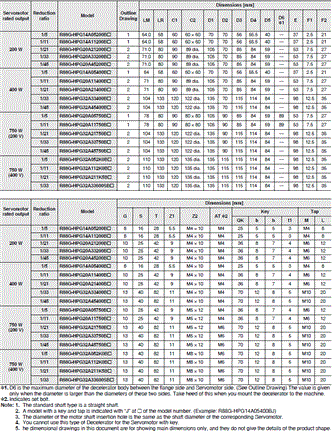

Decelerator AC Servo System [1S-series with Safety Functionality]

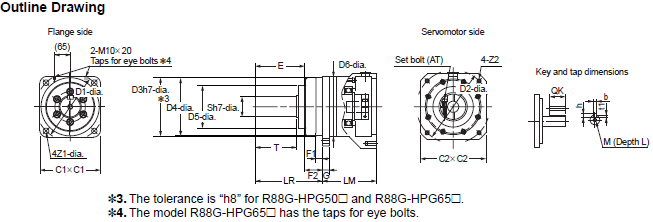

Backlash: 3 Arcminutes Max.

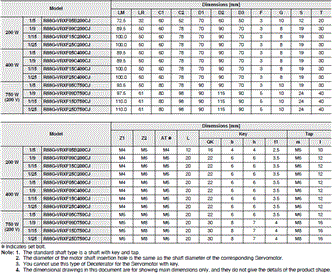

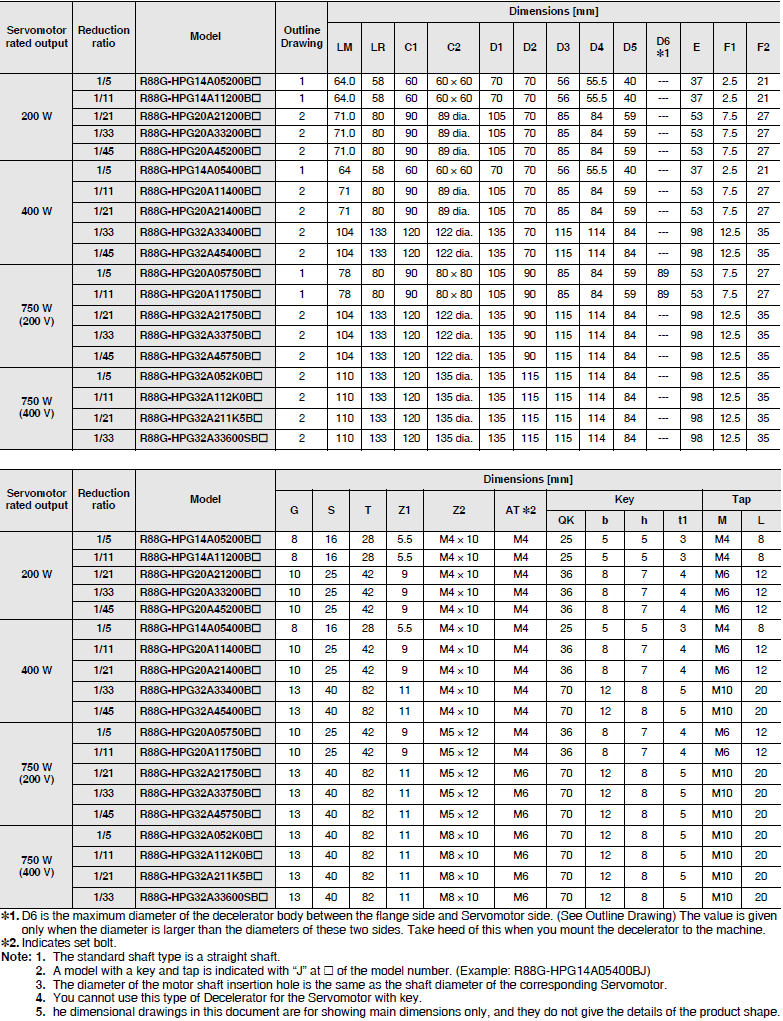

For 3,000-r/min Servomotors (200 to 750 W)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 32
R88M-1A[] / R88D-1SAN[]-ECT Dimensions 33

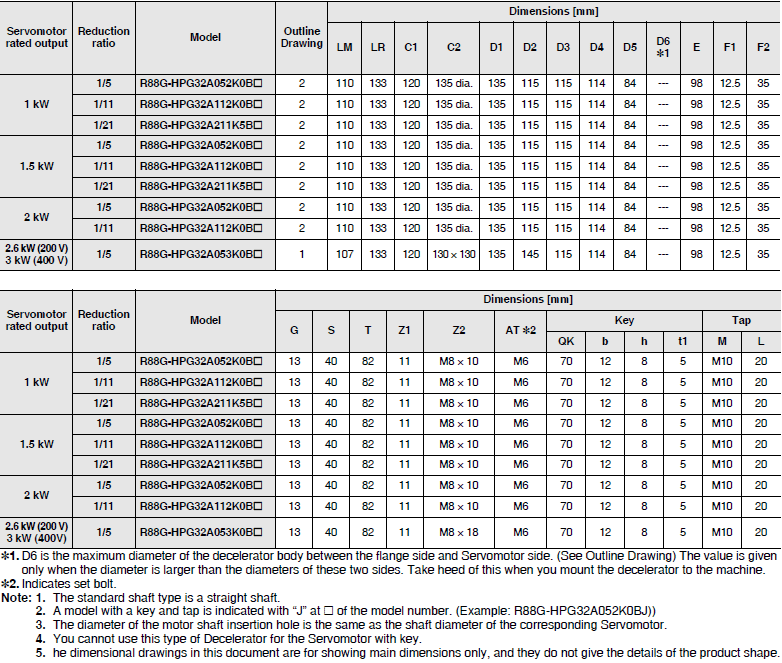

For 3,000-r/min Servomotors (1 to 3 kW)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 34
R88M-1A[] / R88D-1SAN[]-ECT Dimensions 35

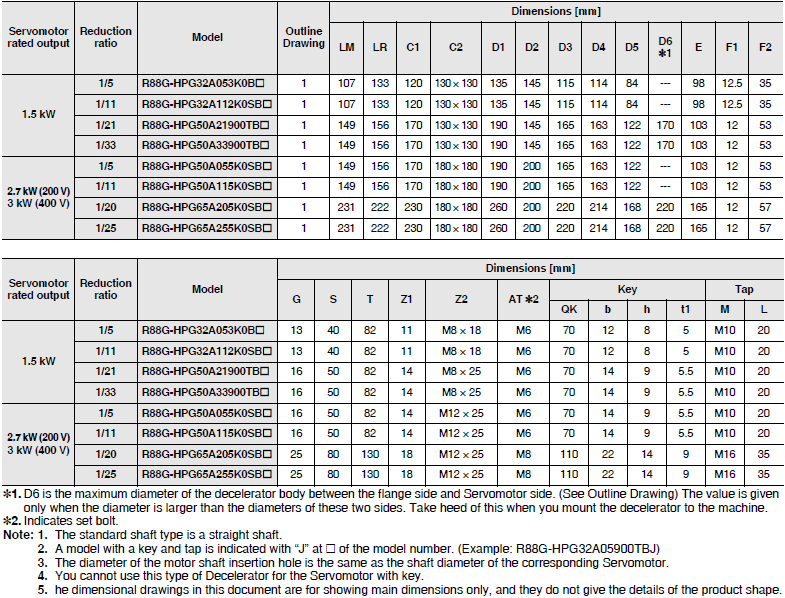

For 1,500-r/min Servomotors (1.5 to 3 kW)

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 36
R88M-1A[] / R88D-1SAN[]-ECT Dimensions 37

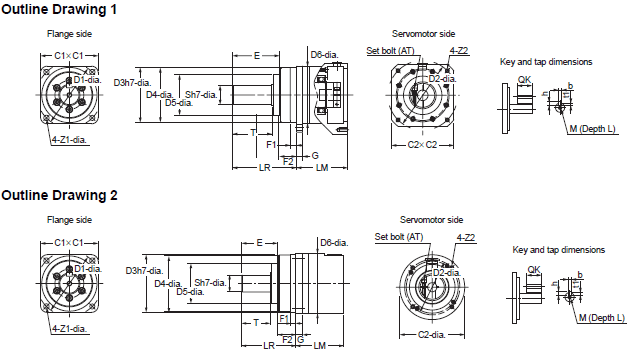

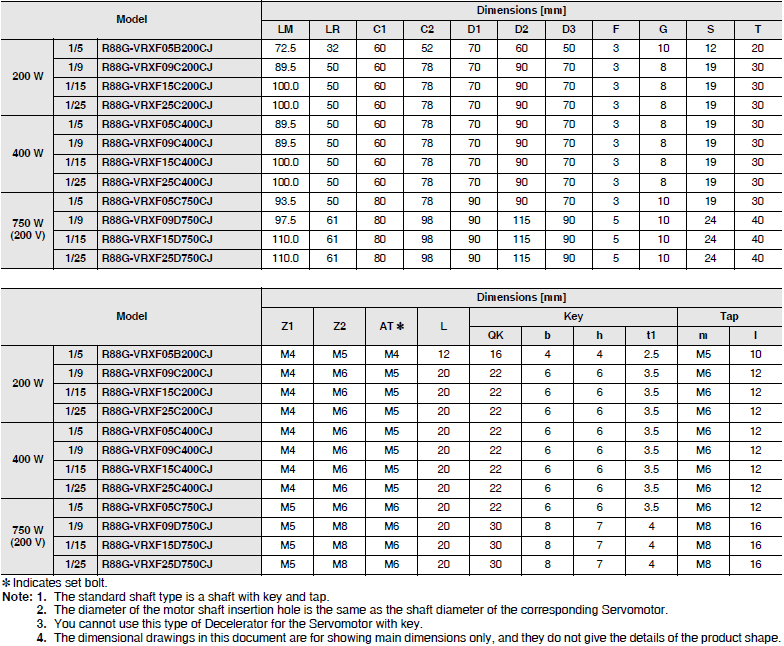

Backlash: 15 Arcminutes Max.

For 3,000-r/min Servomotors

R88M-1A[] / R88D-1SAN[]-ECT Dimensions 39
R88M-1A[] / R88D-1SAN[]-ECT Dimensions 40
