S8FS-G

Switch Mode Power Supply (15/30/50/100/150/300/600-W Models)

S8FS-G

Superior Basic Performance That Ensures Reliability. Wide Range of Standards Certification and Greater Usability.

last update: June 17, 2024

Specifications

Power rating			15 W
Output voltage (VDC)			5 V	12 V	15 V	24 V
*Efficiency 1**		100 VAC input	80% typ.	84% typ.	84% typ.	85% typ.
		200 VAC input	80% typ.	84% typ.	84% typ.	86% typ.
		230 VAC input	80% typ.	84% typ.	84% typ.	86% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 80 to 370 VDC
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	*Current 1**	100 VAC input	0.32 A typ.
	*Current 1**	200 VAC input	0.2 A typ.
	*Power factor 1**		---
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		3 A	1.3 A	1 A	0.65 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	40 mVp-p max.	40 mVp-p max.	40 mVp-p max.	60 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	15 ms typ.	14 ms typ.	15 ms typ.	15 ms typ.
	*Hold time 1**	200 VAC input	75 ms typ.	70 ms typ.	75 ms typ.	70 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		No
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		No
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature.) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		250 g
	Cooling fan		No
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with connector option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with connector option) CSA C22.2 No.62368-1 (excluding models with connector option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating			30 W
Output voltage (VDC)			5 V	12 V	15 V	24 V
*Efficiency 1**		100 VAC input	81% typ.	84% typ.	86% typ.	86% typ.
		200 VAC input	81% typ.	86% typ.	88% typ.	88% typ.
		230 VAC input	81% typ.	86% typ.	88% typ.	89% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 80 to 370 VDC
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	*Current 1**	100 VAC input	0.72 A typ.
	*Current 1**	200 VAC input	0.43 A typ.
	*Power factor 1**		---
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		6 A	3 A	2.4 A	1.5 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	50 mVp-p max.	60 mVp-p max.	50 mVp-p max.	60 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	11 ms typ.	10 ms typ.	11 ms typ.	10 ms typ.
	*Hold time 1**	200 VAC input	60 ms typ.	50 ms typ.	50 ms typ.	55 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		No
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		No
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature.) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		250 g
	Cooling fan		No
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with connector option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with connector option) CSA C22.2 No.62368-1 (excluding models with connector option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating			50 W
Output voltage (VDC)			5 V	12 V	15 V	24 V
*Efficiency 1**		100 VAC input	81% typ.	84% typ.	86% typ.	86% typ.
		200 VAC input	82% typ.	86% typ.	88% typ.	89% typ.
		230 VAC input	82% typ.	86% typ.	88% typ.	89% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 80 to 370 VDC
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	*Current 1**	100 VAC input	1.1 A typ.
	*Current 1**	200 VAC input	0.62 A typ.
	*Power factor 1**		---
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		8 A	4.3 A	3.5 A	2.2A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	40 mVp-p max.	40 mVp-p max.	40 mVp-p max.	60 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	14 ms typ.	11 ms typ.	10 ms typ.	10 ms typ.
	*Hold time 1**	200 VAC input	75 ms typ.	60 ms typ.	60 ms typ.	55 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		No
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		No
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
			500 VAC for 1 min. (between all output terminals and RC terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature.) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		300 g
	Cooling fan		No
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with connector option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with connector option) CSA C22.2 No.62368-1 (excluding models with connector option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating			100 W
Output voltage (VDC)			5 V	12 V	15 V	24 V
*Efficiency 1**		100 VAC input	79% typ.	84% typ.	85% typ.	87% typ.
		200 VAC input	81% typ.	86% typ.	87% typ.	89% typ.
		230 VAC input	81% typ.	86% typ.	87% typ.	89% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 80 to 370 VDC
	*Frequency 1**		50/60 Hz (47 to 450 Hz)
	*Current 1**	100 VAC input	2.1 A typ.
	*Current 1**	200 VAC input	1.2 A typ.
	*Power factor 1**		---
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		16 A	8.5 A	7 A	4.5 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	70 mVp-p max.	90 mVp-p max.	100 mVp-p max.	80 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	12 ms typ.	11 ms typ.	11 ms typ.	10 ms typ.
	*Hold time 1**	200 VAC input	70 ms typ.	55 ms typ.	55 ms typ.	55 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		No
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		Yes (Only for models with remote control option)
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
			Only Remote control 500 VAC for 1 min. (between all output terminals and RC terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		400 g
	Cooling fan		No
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with connector option or remote control option) UL 508 (Recognition, models with remote control option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with connector option or remote control option) CSA C22.2 No.62368-1 (excluding models with connector option or remote control option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4)
	Marine Standards		No
	SEMI		SEMI Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.

Power rating			150 W
Output voltage (VDC)			5 V	12 V	15 V	24 V	48 V
*Efficiency 1**		100 VAC input	78% typ.	84% typ.	85% typ.	87% typ.	85% typ.
		200 VAC input	81% typ.	87% typ.	88% typ.	89% typ.	88% typ.
		230 VAC input	81% typ.	87% typ.	88% typ.	90% typ.	88% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 80 to 370 VDC
	*Frequency 1**		50 /60 Hz (47 to 450 Hz)
	*Current 1**	100 VAC input	3 A typ.
	*Current 1**	200 VAC input	1.8 A typ.
	*Power factor 1**		---
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		21 A	13 A	10 A	6.5 A	3.3 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	100 mVp-p max.	110 mVp-p max.	80 mVp-p max.	110 mVp-p max.	120 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	14 ms typ.	10 ms typ.	10 ms typ.	10 ms typ.	11 ms typ.
	*Hold time 1**	200 VAC input	80 ms typ.	55 ms typ.	55 ms typ.	55 ms typ.	55 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		No
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		Yes (Only for models with remote control option)
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min.(between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min.(between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min.(between all output terminals and PE terminals) current cutoff 20 mA
			Only Remote control 500 VAC for 1 min.(between all output terminals and RC terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min.(between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions on page 22.
	Weight		500 g
	Cooling fan		No
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2 (Applicable at 80% or less of the rated load.)
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with connector option or remote control option) UL 508 (Recognition, models with remote control option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with connector option or remote control option) CSA C22.2 No.62368-1 (excluding models with connector option or remote control option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4) BIS: IS 13252 (Part1) *3 (Output voltage 24 V type only. However, excluding S8FS-G15024C-500 and S8FS-G15024CD-500.)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

*1. Refer to Ratings, Characteristics, and Functions below.
*2. Refer to Standard Compliance below.
*3. This BIS Standard is an Indian standard that has been in effect for this product since April 2021, and certification has been acquired for some models to enable individual product export to India. For details, refer to List of Models with Bureau of Indian Standards (BIS) Certification below.

Power rating			300 W
Output voltage (VDC)			12 V	15 V	24 V	48 V
*Efficiency 1**		100 VAC input	81% typ.	81% typ.	82% typ.	82% typ.
		200 VAC input	85% typ.	85% typ.	87% typ.	87% typ.
		230 VAC input	85% typ.	86% typ.	87% typ.	87% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 120 to 370 VDC
	*Frequency 1**		50/60 Hz (47 to 63 Hz)
	*Current 1**	100 VAC input	4.2 A typ.
	*Current 1**	200 VAC input	2.1 A typ.
	*Power factor 1**		0.9 min.
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		25 A	20 A	14 A	7 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	140 mVp-p max.	270 mVp-p max.	150 mVp-p max.	330 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	30 ms typ.	30 ms typ.	30 ms typ. 40 ms typ. (Extended hold time type)	30 ms typ.
	*Hold time 1**	200 VAC input	30 ms typ.	25 ms typ.	30 ms typ. 40 ms typ. (Extended hold time type)	30 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		Yes, power shut off (shut off the input voltage and turn on the input again)
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		No (However, backup operation is possible, external diodes are required.)
	Remote sensing		No
	Remote control		Yes (Only for models with remote control option)
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
			Only Remote control 500 VAC for 1 min. (between all output terminals and RC terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature.) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		700 g
	Cooling fan		Yes
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with remote control option) UL 508 (Recognition, models with remote control option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with remote control option) CSA C22.2 No.62368-1 (excluding models with remote control option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4) BIS: IS 13252 (Part1) *3 (Output voltage 24 V type only. However, excluding S8FS-G30024C-500 and S8FS-G30024CD-500.)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

Power rating			600 W
Output voltage (VDC)			12 V	15 V	24 V	48 V
*Efficiency 1**		100 VAC input	84% typ.	84% typ.	85% typ.	88% typ.
		200 VAC input	88% typ.	88% typ.	89% typ.	92% typ.
		230 VAC input	88% typ.	88% typ.	90% typ.	92% typ.
Input	*Voltage range 1**		Single phase, 85 to 264 VAC, 120 to 350 VDC
	*Frequency 1**		50/60 Hz (47 to 63 Hz)
	*Current 1**	100 VAC input	7.7 A typ.
	*Current 1**	200 VAC input	3.8 A typ.
	*Power factor 1**		0.9 min.
	Leakage current *1	100 VAC input	0.5 mA max.
	Leakage current *1	200 VAC input	1 mA max.
	Inrush current *1 (for a cold start at 25°C)	100 VAC input	14 A typ.
	Inrush current *1 (for a cold start at 25°C)	200 VAC input	28 A typ.
Output	Rated Output Current		50 A	40 A	27 A	13 A
	*Voltage adjustment range 1**		-10% to 15% (with V.ADJ)
	Ripple & Noise voltage *1	100 to 240 VAC input	170 mVp-p max.	170 mVp-p max.	280 mVp-p max.	340 mVp-p max.
	*Input variation influence 1**		0.5% max.
	*Load variation influence 1**		1.0% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	*Startup time 1**	100 VAC input	1,000 ms max.
	*Startup time 1**	200 VAC input	1,000 ms max.
	*Hold time 1**	100 VAC input	30 ms typ.	25 ms typ.	30 ms typ. 40 ms typ. (Extended hold time type)	30 ms typ.
	*Hold time 1**	200 VAC input	30 ms typ.	25 ms typ.	30 ms typ. 40 ms typ. (Extended hold time type)	30 ms typ.
Additional functions	Overload protection		Yes, automatic reset
	*Overvoltage protection 1**		Yes, 120% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
	Overheat protection		Yes, power shut off (shut off the input voltage and turn on the input again)
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		Yes (up to five Power Supplies, S8FS-G60024 (models with parallel operation option) only).
	Remote sensing		No
	Remote control		Yes (Only Remote control)
	Output indicator		Yes (LED: Green)
Insulation	Withstand voltage		3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA
			2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA
			1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA
			Only Remote control 500 VAC for 1 min. (between all output terminals and RC terminals) current cutoff 20 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature		-20 to 70°C (Derating is required according to the temperature.) (with no condensation or icing)
	Storage temperature		-25 to 75°C (with no condensation or icing)
	Ambient operating humidity		90% max. (Storage humidity: 90% max.)
	Vibration resistance		10 to 55 Hz, 4.5 G max., 0.375-mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF		135,000 hrs min.
Reliability	*Life expectancy 1**		10 years min.
Con- struction	Dimensions (W×H×D)		Refer to Dimensions.
	Weight		1,050 g
	Cooling fan		Yes
	Degree of protection		---
Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	*EMI 1**	Conducted Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	*EMI 1**	Radiated Emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety Standards 2**		UL 508 (Listing, excluding models with remote control option) UL 508 (Recognition, models with remote control option) UL 62368-1 (Recognition, OVCII [≤ 3,000 m], Pol2) CSA C22.2 No.107.1 (excluding models with remote control option) CSA C22.2 No.62368-1 (excluding models with remote control option) EN 62477-1 (OVCIII [≤ 2,000 m], OVCII [> 2,000 m and ≤ 3,000 m], Pol2) EN/IEC 62368-1 (OVCII [≤ 3,000 m], Pol2) Conforms to EN/IEC 61558-2-16 Conforms to PELV (EN/IEC 60204-1) RCM (EN61000-6-4) BIS: IS 13252 (Part1) *3 (Output voltage 24 V type only. However, excluding S8FS-G60024C-500 and S8FS-G60024CD-500.)
	Marine Standards		No
	SEMI		Conforms to F47-0706 (200 VAC input)

Ratings, Characteristics, and Functions

	Frequency
Efficiency			The value is when both rated output voltage and rated output current are satisfied.
Input	Voltage range		Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
	Current		The value is when both rated output voltage and rated output current are satisfied.
	Power factor		The value is when both rated output voltage and rated output current are satisfied.
	Leakage current		The values are determined according to the Act on Power Supply Safety of Electrical Appliances and Materials.
	Inrush current (for a cold start at 25°C)		For a cold start at 25°C. Refer to the following figure.
Output	Voltage adjustment range		If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.

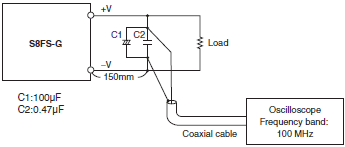

	Ripple & Noise voltage		The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient operating temperature is 25°C.
	Input variation influence		This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
	Load variation influence		This is the value when the output current is changed from 0 A to the rated output current while the input voltage is within the allowable input voltage.

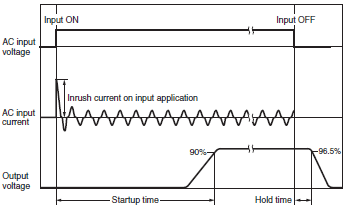

	Startup time		The value is when both rated output voltage and rated output current are satisfied. For a cold start at 25°C. Refer to the following figure.
	Hold time		The value is when both rated output voltage and rated output current are satisfied. At 25°C. Refer to the following figure.
Additional functions	Overvoltage protection		Refer to Overvoltage Protection on Data Sheet for the time when input voltage shuts off and input turns on again.
Reliability	Life expectancy		Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Data Sheet for details.
Standards	EMI	Conducted Emissions	The 150-W and higher models conform to Class B when an aluminum plate is set under the Power Supply.
Standards	EMI	Radiated Emissions

Standard Compliance

• The input voltage range for compliance with EC Directives and other safety standards (UL, EN, etc.) is 90 to 264 VAC.
• EN/IEC 61558-2-16
To comply with EN/IEC 60204-1 (Machine Safety), a transformer is required in the control circuit. If, however, a Power Supply that has a built-in transformer that complies with EN/IEC 6155-8-2-16 is used, an external transformer is not required.
• Safety standard targets during a DC input *
During a DC input, UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN 62477-1, EN/IEC 61558-2-16, and EN/IEC 60204-1 are safety standard targets. (However, the input voltage range is 120 to 320 VDC. The safety standards during DC input are not acquired for the S8FS-G60048[].)
It is possible to comply with the safety standards by connecting a UL-authenticated fuse. Select a UL-authenticated fuse that satisfies the following conditions:
S8FS-G015[][]/030[][] (320 VDC or above, 3 A)
S8FS-G050[][] (320 VDC or above, 4 A)
S8FS-G100[][] (320 VDC or above, 8 A)
S8FS-G150[][] (320 VDC or above, 10 A)
S8FS-G300[][] (320 VDC or above, 12 A)
S8FS-G600[][] (320 VDC or above, 20 A)
• To comply with the PELV output of the EN/IEC 60204-1, ground the output negative side (-V) to PE. *
* Applicable to products produced from May 2018

List of Models with Bureau of Indian Standards (BIS) Certification

S8FS-G15024C	S8FS-G30024C	S8FS-G60024C-R
S8FS-G15024C-R	S8FS-G30024C-H	S8FS-G60024C-W
S8FS-G15024CD	S8FS-G30024C-R	S8FS-G60024C-WR
S8FS-G15024CD-R	S8FS-G30024CD	S8FS-G60024CD
S8FS-G15024CDE	S8FS-G30024CD-H	S8FS-G60024CD-H
S8FS-G15024CDE-R	S8FS-G30024CD-R	S8FS-G60024CD-R
S8FS-G15024CE	S8FS-G60024C	S8FS-G60024CD-W
S8FS-G15024CE-R	S8FS-G60024C-H	S8FS-G60024CD-WR

Note: Ask your OMRON sales representative about models not contained in the list above.

Inrush Current, Startup Time, Output Hold Time

Note:
The total inrush current of all of the Power Supplies will flow for parallel operation or backup operation.
Sufficiently check the fusing characteristics of fuses and the operating characteristics of breakers and select fuses and breakers so that external fuses will not burn out or breakers will not operate due to inrush current.

Ripple Noise Voltage

The specified standard for the ripple voltage noise was measured with a measurement circuit that is based on JEITA standard RC-9131A.

last update: June 17, 2024

Product Category

Power Supplies / In Addition
- Power Supplies
  - Switch mode power supplies
    - S8VK-WA
    - S8VK-WB
    - S8VK-X
    - S8VK-S
    - S8FS-G
    - S8FS-C
    - S8VK-G
    - S8VK-T
    - S8VS
    - S8JX-P
    - S8AS
    - S8VK-C

Top of page
