Industrial PC Platform NY-series Industrial Box PC
Powerful. Tough. Future-Proof.
Related Contents
Application Solutions
last update: April 1, 2025

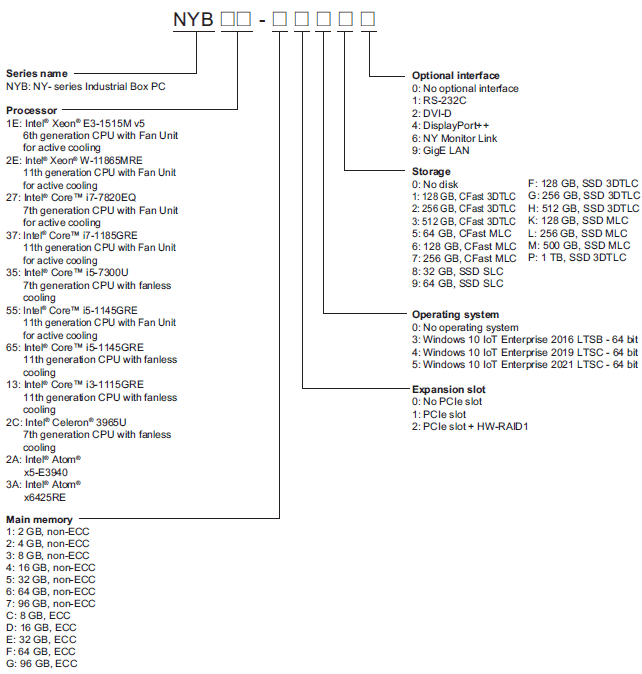

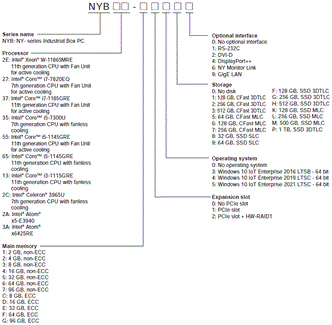

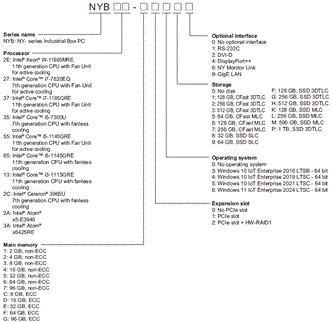

Model Number Structure
The purpose of this model number legend is to provide understanding of the meaning of specifications from the model number.
Models are not available for all combinations of code numbers.
Ordering Information
NY-series Industrial PC Platform
Recommended models
The industrial Box PC has extended configuration possibilities to meet your requirements, below an overview of the most used and recommended models. Selecting one of the models below will bring the benefit of faster delivery times.
In case your preferred model is not listed below, please contact your Omron representative to discuss the possibilities.
| Product
name |
Specifications | Model | |||||
|---|---|---|---|---|---|---|---|
| Operating
system |
CPU type | RAM
memory |
Storage
size |
Interface
option |
PCIe-
slot |
||
| Industrial
Box PC |
Windows
10 IoT Enterprise 2016 LTSB - 64 bit |
Intel® Xeon®
E3-1515M v5 |
8GB
(non-ECC type) |
128 GB SSD type
(MLC) |
RS-232C | Yes | NYB1E-313K1 |
| 8GB
(ECC type) |
Yes | NYB1E-C13K1 | |||||
| Intel® Core™
i5-7300U |
8 GB
(non-ECC type) |
256 GB CFast type
(MLC) |
No | No | NYB35-30370 | ||
| 128 GB SSD type
(MLC) |
RS-232C | Yes | NYB35-313K1 | ||||
| Intel®
Celeron™ 3965U |
8 GB
(non-ECC type) |
256 GB CFast type
(MLC) |
No | No | NYB2C-30370 | ||
| 128 GB SSD type
(MLC) |
RS-232C | Yes | NYB2C-313K1 | ||||
| Windows
10 IoT Enterprise 2019 LTSC - 64bit |
Intel® Atom®
x5-E3940 |
4 GB
(non-ECC type) |
128 GB CFast type
(MLC) |
No | No | NYB2A-20460 | |
| 8 GB
(non-ECC type) |
256 GB CFast type
(MLC) |
No | No | NYB2A-30470 | |||
| Intel® Core™
i7-7820EQ |
8 GB
(non-ECC type) |
128 GB CFast type
(MLC) |
No | No | NYB27-30460 | ||
| 500 GB SSD type
(MLC) |
RS-232C | Yes | NYB27-314M1 | ||||
| 500 GB SSD type
(MLC) Hard RAID |
RS-232C | Yes | NYB27-324M1 | ||||
| 1 TB SSD type
(3DTLC) |
RS-232C | Yes | NYB27-314P1 | ||||
| Windows
10 IoT Enterprise 2021 LTSC - 64 bit |
Intel® Xeon®
W-11865MRE |
32 GB
(non-ECC type) |
1 TB SSD type
(3DTLC) |
Ethernet | Yes | NYB2E-515P9 | |
| 32 GB
(ECC type) |
NYB2E-E15P9 | ||||||
| Intel® Core™
i7-1185GRE |
16 GB
(non-ECC type) |
512 GB CFast type
(3DTLC) |
None | No | NYB37-40530 | ||
| 512 GB SSD type
(3DTLC) |
Ethernet | Yes | NYB37-415H9 | ||||
| Intel® Core™
i5-1145GRE |
16 GB
(non-ECC type) |
256 GB CFast type
(3DTLC) |
None | No | NYB55-40520 | ||
| 256 GB SSD type
(3DTLC) |
Ethernet | Yes | NYB55-415G9 | ||||
Accessories
Optional Hardware
| Product name | Specifications | Model |
|---|---|---|
| Mounting Brackets *1 | Book mount | NY000-AB00 |
| NY000-AB02 | ||
| NY000-AB04 | ||
| NY000-AB05 | ||
| Wall mount | NY000-AB01 | |
| SD Memory Cards | Card type: SD Card
Capacity: 2 GB Format: FAT16 |
HMC-SD292 |
| Card type: SDHC Card
Capacity: 4 GB Format: FAT32 |
HMC-SD492 | |
| Card type: SDHC Card
Capacity: 16 GB Format: FAT32 |
HMC-SD1A2 | |
| USB Flash Drives | Capacity: 2 GB | FZ-MEM2G |
| Capacity: 16 GB | FZ-MEM16G | |
| Storage Devices | Storage type: SSD SLC, Capacity: 32 GB | NY000-AS00 |
| Storage type: SSD SLC (Apacer), Capacity: 64 GB | NY000-AS01 | |
| Storage type: SSD SLC (Hagiwara), Capacity: 64 GB | NY000-AS03 | |
| Storage type: SSD MLC (Innodisk), Capacity: 128 GB | NY000-AS04 | |
| Storage type: SSD MLC, Capacity: 500 GB | NY000-AS05 | |
| Storage type: SSD 3DTLC, Capacity: 1 TB | NY000-AS07 | |
| Storage type: SSD MLC (Innodisk), Capacity: 256 GB | NY000-AS08 | |
| Storage type: SSD 3DTLC (Acon), Capacity: 128 GB | NY000-AS09 | |
| Storage type: SSD 3DTLC (Acon), Capacity: 256 GB | NY000-AS10 | |
| Storage type: SSD 3DTLC (Acon), Capacity: 512 GB | NY000-AS11 | |
| Storage type: SSD 3DTLC (Acon), Capacity: 1 TB | NY000-AS12 | |
| Storage type: SSD 3DTLC (Acon), Capacity: 2 TB | NY000-AS13 | |
| Storage type: CFast MLC, Capacity: 64 GB | NY000-AT00 | |
| Storage type: CFast MLC, Capacity: 128 GB | NY000-AT01 | |
| Storage type: CFast MLC, Capacity: 256 GB | NY000-AT02 | |
| Storage type: CFast 3DTLC (Acon), Capacity: 128 GB | NY000-AT05 | |
| Storage type: CFast 3DTLC (Acon), Capacity: 256 GB | NY000-AT06 | |
| Storage type: CFast 3DTLC (Acon), Capacity: 512 GB | NY000-AT07 | |
| DVI Cables | Cable length: 2 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 2M |
| Cable length: 5 m
Supports DVI-D Minimum bend radius: 36 mm |
NY000-AC00 5M | |
| Industrial Monitor | • LCD touchscreen
• Multi-touch functionality • Supply voltage: 24 VDC • 2 USB Type-A Connectors • Programmable brightness control • Standard and 100 m cable models are available. |
NYM1[]W-C10[][] |
| Power Supply | • Output voltage: 24 VDC
• Push-In Plus terminal blocks |
S8VK-G[][][]24 |
| • Output voltage: 24 VDC
• EtherNet/IP, Modbus TCP-Compatible |
S8VK-X[][][]24A-EIP | |
| • Output voltage: 24 VDC
• Compact |
S8VK-S[][][]24 | |
| • Output voltage: 24 VDC
• Three-phase 200-V Power Supplies |
S8VK-WA[][][]24 | |
| UPS *2 | Output voltage during backup operation: 24 VDC ± 5% | S8BA |
| UPS Communication Cable | Cable length: 2 m
Signals for • Signal output (BL, TR, BU, WB) • Remote ON/OFF input • UPS Stop Signal input (BS) |
S8BW-C02 |
Note: Orders for NY000-AS02 are no longer accepted, as of November 30, 2018.
*1. Select the required type:
NY000-AB00: NYB1E, NYB27-[]1[][][], NYB27-[]2[][][], NYB2E-[]1[][][], NYB2E-[]2[][][], NYB37-[]1[][][],
NYB37-[]2[][][], NYB55-[]1[][][], NYB55-[]2[][][]
NY000-AB02: NYB35-[]1[][][], NYB35-[]2[][][], NYB2C-[]1[][][], NYB65-[]1[][][], NYB65-[]2[][][], NYB13-[]1[][][],
NYB13-[]2[][][]
NY000-AB04: NYB35-[]0, NYB2C-[]0, NYB2A-[]0, NYB65-[]0[][][], NYB13-[]0[][][], NYB3A-[]0[][][]
NY000-AB05: NYB27-[]0, NYB2E-[]0[][][], NYB37-[]0[][][], NYB55-[]0[][][]
*2. Revision number 09 or higher.
The revision number of the UPS can be retrieved from the serial number label on the product and the product packaging.
| Item | Description |
|---|---|
| 1 | Product code |
| 2 | Product period and sequential number |
| 3 | Revision number |
| 4 | RoHS status |
Spare Parts
The following spare parts for the Industrial Box PC are available.
| Product name | Specifications | Model |
|---|---|---|
| Battery | One battery is supplied with the Industrial Box PC. The battery supplies power to
the real-time clock. The battery is located inside the Industrial Box PC. Service life: 5 years at 25°C |
CJ1W-BAT01 * |
| Fan Unit | The Fan Unit is available for the Industrial Box PC that has active cooling.
Service life: 70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity. Shelf life: 6 months This is the storage limitation with no power supplied. |
NY000-AF00 |
| Accessory Kit | Accessory Kit containing all accessories supplied with the Industrial Box PC.
• Power connector • I/O connector • Drive bracket for drive installation • 4 mounting screws for drive installation • PCIe Card support for PCIe Card installation • PCIe Card clip for PCIe Card installation |
NY000-AK00 |
| Power connectors (10 pcs) for Industrial Box PC and Industrial Panel PC | NY000-AK01 |
* Only for models with replaceable battery.
Installed Support Software
| Item | Specifications |
|---|---|
| Industrial PC Support Utility | The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving
problems of the Industrial Box PC. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC Tray Utility | The Industrial PC Tray Utility is a software utility that provides information about the current
state of the Industrial PC, its related devices, and associated software. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC System API | The Industrial PC System API allows programmers to create programs that can retrieve
information or set an indicator status of the Industrial Box PC. The API makes use of the included IPC System Service to manage the hardware. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor Utility | For the optional OMRON Industrial Monitor. The Industrial Monitor Utility provides a user
interface to control settings and display details of connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor
Brightness Utility |
For the optional OMRON Industrial Monitor. The Industrial Monitor Brightness Utility is a
small software utility that allows you to control the brightness of the screen backlight of all connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial Monitor API | For the optional OMRON Industrial Monitor. The Industrial Monitor API allows programmers
to create applications that can control the hardware features and retrieve information from connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
| Industrial PC Rescue Disk
Creator |
The Industrial PC Rescue Disk Creator creates a USB Rescue Disk which can be used to
back-up and restore the Omron IPC Operating System. It is pre-installed on the Industrial Box PC and the Industrial Panel PC. |
Soft-NA
| Product name | Specifications | Number of
icenses |
Media | Model |
|---|---|---|---|---|
| Soft-NA | The Soft-NA is software that displays information on
FA manufacturing sites while providing safety, reliability, and maintainability as an industrial display on which operations can be performed as necessary. |
-
(Media only) |
DVD | NA-RTSM |
| 1 license | USB dongle | NA-RTLD01 | ||
| 3 licenses | NA-RTLD03 | |||
| 10 licenses | NA-RTLD10 |
System Requirements
| Item | Requirement | ||
|---|---|---|---|
| OS | Windows 10 Pro Version 1903
or later 64 bit |
Windows 11 Pro Version 24H2
or later |
|
| Processor | Intel Atom® x5-E3940 equivalent
or higher processor *1 |
Intel Celeron® N4000 equivalent
or higher processor *1 |
|
| RAM | 4 GB or more | ||
| Free space in the hard drive necessary for installation | 1 GB or more | ||
| Optical disk drive | DVD-ROM drive *2 | ||
| Communication port | USB | USB2.0 Type-A x 2 *3 | |
| LAN | Ethernet x 2 *3 | ||
*1. ARM-based processors are not supported.
*2. It is required when installing using NA-RTSM.
*3. Since one port is for project transfer, it is not required unless the corresponding path is used.
Note: Refer to NA-series catalog (Cat. No. V413) for the system configuration of Soft-NA.
