Industrial Automation

Industrial Automation

KM-N2-FLK

Power Monitor

KM-N2-FLK

Global Power Monitor for Mounting Inside Control Panels

(Unit: mm)

Power Monitor

KM-N2-FLK

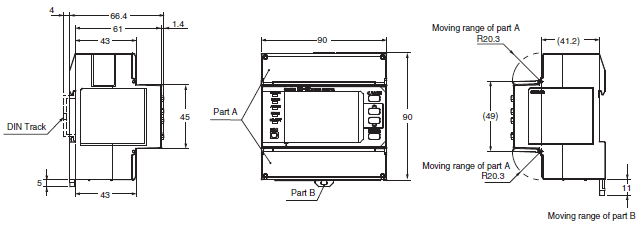

KM-N2-FLK Dimensions 1

KM-NCT-E100A
KM-NCT-E250A
KM-NCT-E500A
(CE marking compliant KM-N2/N3 dedicated products *)

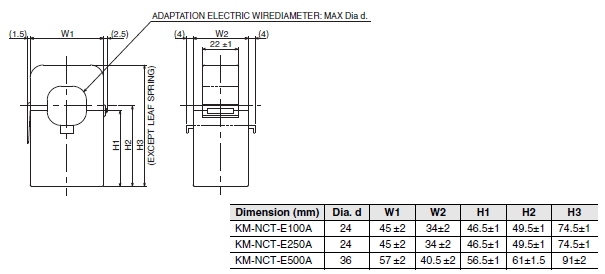

KM-N2-FLK Dimensions 2

* The KM-NCT-E conforms to the standards shown above ONLY when it is used with a power monitor KM-N2-FLK or KM-N3-FLK to which it is attached. Use of the KM-NCT-E without a power monitor does not conform to these standards.
