Industrial Automation

Industrial Automation

K8DT-PH

Phase-sequence Phase-loss Relay

K8DT-PH

Our Value Design Products Increase the Value of Your Control Panels. Protect motors and other equipment from unstable voltages in the power supply system. Protect motors and other equipment by detecting phase sequence and phase loss for three-phase power supplies.

(Unit: mm)

Phase-sequence Phase-loss Relay

K8DT-PH1

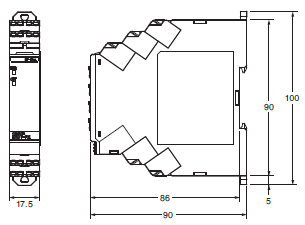

K8DT-PH Dimensions 1

Options (Order Separately)

Front Cover

Y92A-D1A

K8DT-PH Dimensions 3

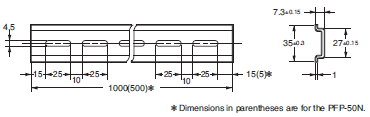

Optional Parts for DIN Track Mounting

DIN Tracks

PFP-100N
PFP-50N

K8DT-PH Dimensions 5
