H3DT-F

Twin Timer

H3DT-F

Our Value Design Products Increase the Value of Your Control Panels. Switch between flicker-OFF or flicker-ON start mode.

last update: April 1, 2016

(Unit: mm)

Timers

H3DT-F

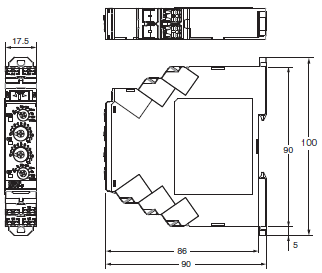

H3DT-F Dimensions 1

Track Mounting Products (Sold Separately)

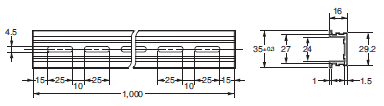

DIN Track
PFP-100N
PFP-50N

H3DT-F Dimensions 2

DIN Track
PFP-100N2

H3DT-F Dimensions 3

End Plate
PFP-M

H3DT-F Dimensions 4

Spacer
PFP-S

H3DT-F Dimensions 5

Note: 1. Order the above products in multiples of 10.
2. The Tracks conform to DIN standards.

Options (Order Separately)

Front Cover
Y92A-D1A

H3DT-F Dimensions 7

last update: April 1, 2016
