MY-GS

Miniature Power Relays

MY-GS

Mechanical Indicators Added as a Standard Feature to Our Best-selling MY General-purpose Relays

Model Number Structure

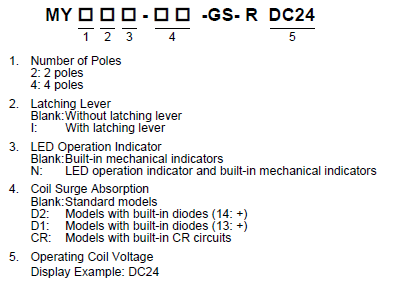

Model Number Legend

MY-GS Lineup 2

List of Models

Miniature Power Relays (MY-GS-R)

Category Number
of poles
Contact
structure
Plug-in (octal pins) terminals
3440_lu_2_1
With operation indicator
With latching lever
Standard models 2 Single MY2-GS-R MY2N-GS-R MY2IN-GS-R
4 MY4-GS-R MY4N-GS-R MY4IN-GS-R
Models with built-in diodes
for coil surge absorption
2 --- MY2N-D2-GS-R MY2IN-D2-GS-R
4 --- MY4N-D2-GS-R MY4IN-D2-GS-R
Models with built-in CR circuits
for coil surge absorption
2 --- MY2N-CR-GS-R MY2IN-CR-GS-R
4 --- MY4N-CR-GS-R MY4IN-CR-GS-R

Ordering Information

Main unit

Standard model without operation indicator

Number of poles Model Rated voltage (V)
2 MY2-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC
4 MY4-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110 VDC

Standard model with operation indicator

Number of poles Model Rated voltage (V)
2 MY2N-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC
4 MY4N-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC

Standard model with operation indicator and latching lever

Number of poles Model Rated voltage (V)
2 MY2IN-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC
4 MY4IN-GS-R 12, 24, 48, 100/110, 110/120, 200/220, 220/240 VAC
6, 12, 24, 48, 100/110, 220 VDC

Models with built-in diodes for coil surge absorption with operation indicator

Number of poles Model Rated voltage (V)
2 MY2N-D2-GS-R 12, 24, 48, 100/110, 220 VDC
4 MY4N-D2-GS-R 12, 24, 48, 100/110, 220 VDC

Models with built-in diodes for coil surge absorption with operation indicator and latching lever

Number of poles Model Rated voltage (V)
2 MY2IN-D2-GS-R 12, 24, 48, 100/110, 220 VDC
4 MY4IN-D2-GS-R 12, 24, 48, 100/110, 220 VDC

Models with built-in CR circuits for coil surge absorption with operation indicator

Number of poles Model Rated voltage (V)
2 MY2N-CR-GS-R 100/110, 110/120, 200/220, 220/240 VAC
4 MY4N-CR-GS-R 100/110, 110/120, 200/220, 220/240 VAC

Models with built-in CR circuits for coil surge absorption with operation indicator and latching lever

Number of poles Model Rated voltage (V)
2 MY2IN-CR-GS-R 100/110, 110/120, 200/220, 220/240 VAC
4 MY4IN-CR-GS-R 100/110, 110/120, 200/220, 220/240 VAC

Common Options (Order Separately)

Ordering Information

Front-mounting Sockets

Number
of Pins
Applicable
Relay Model
Terminal Type Mounting Method Appearance Model Hold-down
Clips
8 MY2-GS-R
MY2N-GS-R
MY2IN-GS-R
MY2N-D2-GS-R
MY2IN-D2-GS-R
MY2N-CR-GS-R
MY2IN-CR-GS-R
Screw terminal
Finger protection
structure *1
(Screw size M3)
DIN Track or screw
mounting
3440_lu_10_1 PYFZ-08-E PYC-A1 *3
Screw terminal
Finger protection
structure *1
(Screw size M3)
DIN Track or screw
mounting
3440_lu_10_3 PYF08A-N PYC-A1 *3
Push-In Plus Terminal
(Integrated Socket with
release lever)
DIN Track or screw
mounting *2
3440_lu_10_4 PYF-08-PU ---
14 MY4-GS-R
MY4N-GS-R
MY4IN-GS-R
MY4N-D2-GS-R
MY4IN-D2-GS-R
MY4N-CR-GS-R
MY4IN-CR-GS-R
Screw terminal
Finger protection
structure *1
(Screw size M3)
DIN Track or screw
mounting
3440_lu_10_5 PYFZ-14-E PYC-A1 *3
Screw terminal
Finger protection
structure *1
(Screw size M3)
DIN Track or screw
mounting
3440_lu_10_7 PYF14A-N PYC-A1 *3
Push-In Plus Terminal
(Integrated Socket with
release lever)
DIN Track or screw
mounting *2
3440_lu_10_8 PYF-14-PU ---

*1. In the finger protection type (PYFZ-[]-E, and PYF[]A-N), the terminal cover is integrated into the Socket.
      Round terminals cannot be used.
      Use forked terminals or ferrules instead.
*2. There are screw mounting holes in the DIN hooks on the PYF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
      with screws.
*3. Model number of the applicable Mounting Bracket. Sold in sets of two.

Back-mounting Sockets

Number of Pins Applicable Relay Model Terminal Type Appearance Model Hold-down Clips
8 PY08-02 PCB terminals 3440_lu_10_1 PY08-02 PYC-P
14 PY14-02 PCB terminals 3440_lu_10_2 PY14-02

Socket accessories
Mounting Bracket

Appearance *1 Model Weight *2 Application
3440_lu_11_1 PYC-A1 Approx. 0.54 g For joining the Socket and Relay
3440_lu_11_2 PYC-P Approx. 1.4 g For joining the Socket and Relay

*1. Describes the appearance when the Relay, Socket, and Mounting Bracket have been combined together.
*2. The PYC-A1 includes two Mounting Brackets in one set. The weight specified above is the weight of one Mounting
      Bracket.
