Industrial Automation

R88M-KE, R88D-KP

G5-series Pulse Train Input Type AC Servomotors/Servo Drives

R88M-KE, R88D-KP

High-performance Servo Optimal for positioning Application.

last update: August 6, 2014

(Unit: mm)

Servor Drive

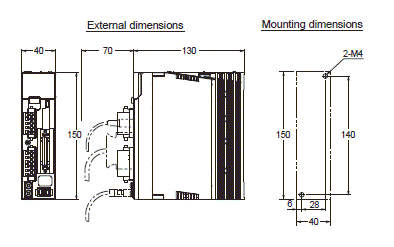

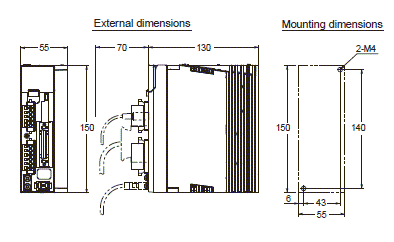

Single-phase/Three-phase 200 VAC R88D-KP01H/-KP02H (100 to 200W)

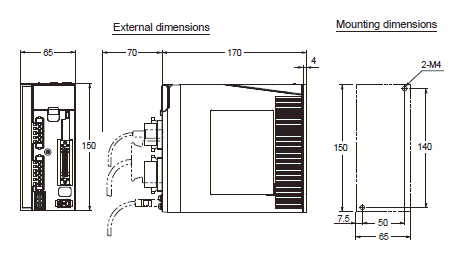

Single-phase/Three-phase 200 VAC R88D-KP04H (400W)

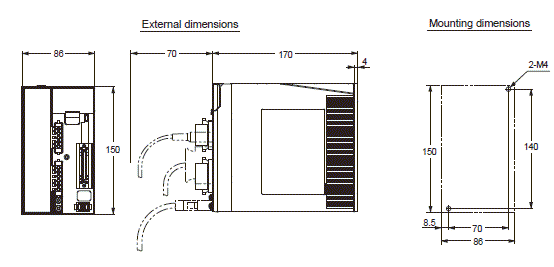

Single-phase/Three-phase 200 VAC R88D-KP08H (750W)

Single-phase/Three-phase 200 VAC R88D-KP10H/-KP15H (900W to 1.5kW)

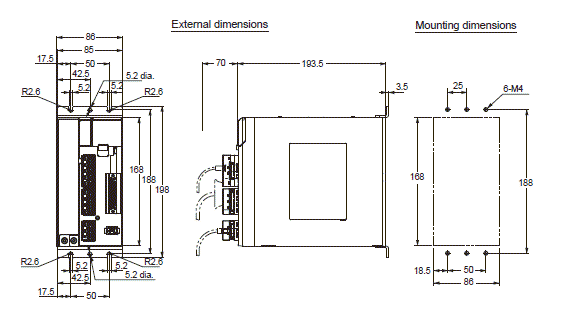

Three-phase 200 VAC R88D-KP20H(2kW)

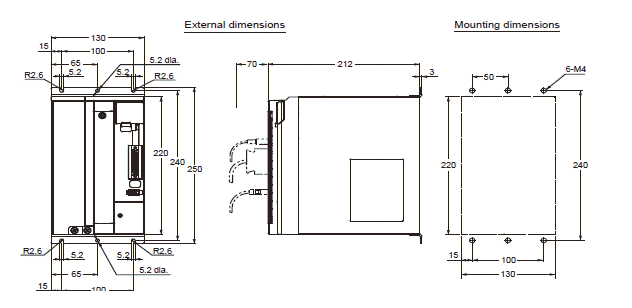

Three-phase 200 VAC R88D-KP30H/-KP50H (3 to 5kW)

Servomotors

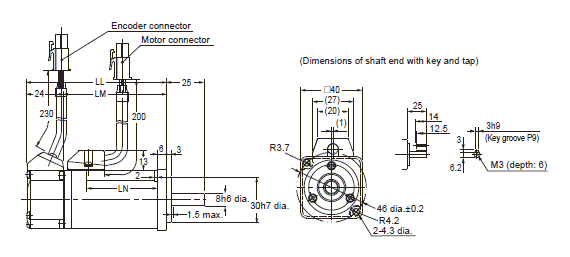

3,000 r/min Servomotors (200 VAC)

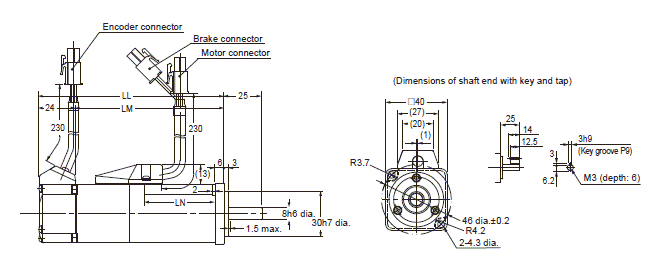

50W/100W

Without brake

• R88M-KE05030H(-S2)

• R88M-KE10030H(-S2)

Model	Dimensions (mm)
Model	LL	LM	LN
R88M-KE05030[]	72	48	26.5
R88M-KE10030[]	92	68	46.5

With brake

• R88M-KE05030H-B(S2)

• R88M-KE10030H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	LN
R88M-KE05030[]-B[]	102	78	26.5
R88M-KE10030[]-B[]	122	98	46.5

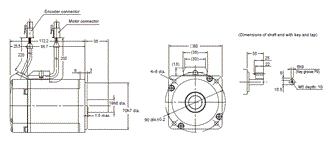

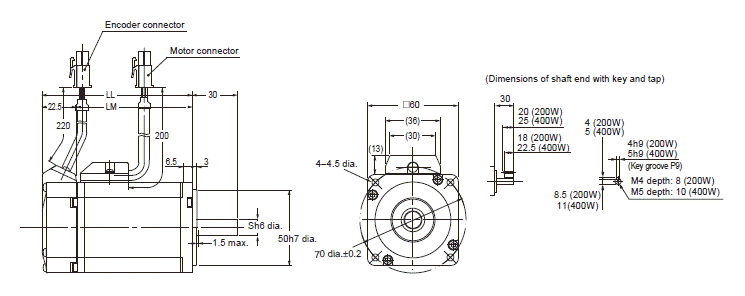

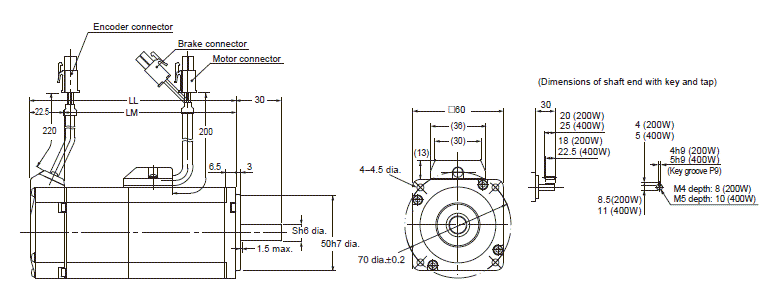

200W/400W

Without brake

• R88M-KE20030H(-S2)

• R88M-KE40030H(-S2)

Model	Dimensions (mm)
Model	LL	LM	LN
R88M-KE20030[]	79.5	57	11
R88M-KE40030[]	99	76.5	14

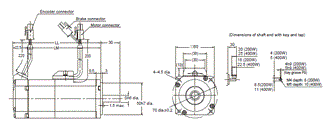

With brake

• R88M-KE20030H-B(S2)

• R88M-KE40030H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	LN
R88M-K20030[]-B[]	116	93.5	11
R88M-K40030[]-B[]	135.5	113	14

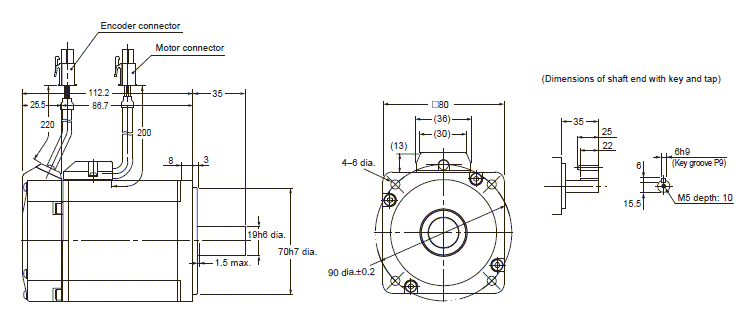

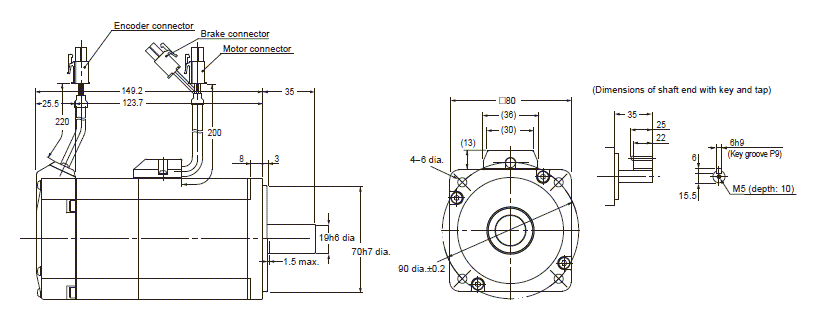

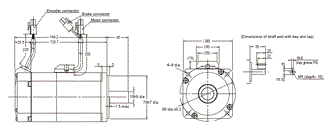

750W

Without brake

• R88M-KE75030H(-S2)

With brake

• R88M-KE75030H-B(S2)

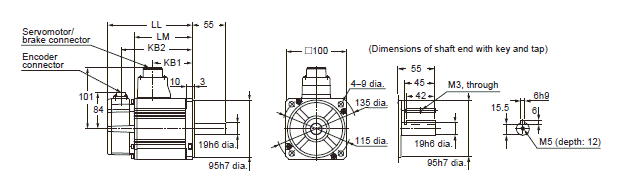

1kW/1.5kW/2kW

Without brake

• R88M-KE1K030H(-S2)

• R88M-KE1K530H(-S2)

• R88M-KE2K030H(-S2)

With brake

• R88M-KE1K030H-B(S2)

• R88M-KE1K530H-B(S2)

• R88M-KE2K030H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	KB1	KB2
R88M-KE1K030[]	142	97	66	122
R88M-KE1K530[]	160.5	115.5	84.5	140.5
R88M-KE2K030[]	179.5	134.5	103.5	159.5
R88M-KE1K030[]-B[]	169	124	66	149
R88M-KE1K530[]-B[]	187.5	142.5	84.5	167.5
R88M-KE2K030[]-B[]	206.5	161.5	103.5	186.5

3kW

Without brake

• R88M-KE3K030H(-S2)

With brake

• R88M-KE3K030H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	LN
R88M-KE3K030[]	191	146	171
R88M-KE3K030[]-B[]	216	171	196

4kW/5kW

Without brake

• R88M-KE4K030H(-S2)

• R88M-KE5K030H(-S2)

With brake

• R88M-KE4K030H-B(S2)

• R88M-KE5K030H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	KB1	KB2
R88M-KE4K030[]	209	164	127	189
R88M-KE5K030[]	244	199	162	224
R88M-KE4K030[]-B[]	237	192	127	217
R88M-KE5K030[]-B[]	272	227	162	252

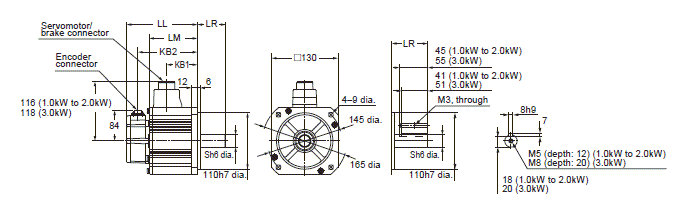

2,000 r/min Servomotors (200 VAC)

1kW/1.5kW/2kW/3kW

Without brake

• R88M-KE1K020H(-S2)

• R88M-KE1K520H(-S2)

• R88M-KE2K020H(-S2)

• R88M-KE3K020H(-S2)

With brake

• R88M-KE1K020H-B(S2)

• R88M-KE1K520H-B(S2)

• R88M-KE2K020H-B(S2)

• R88M-KE3K020H-B(S2)

Model	Dimensions (mm)
Model	LL	LR	LM	S	KB1	KB2
R88M-KE1K020[]	139	55	94	22	60	119
R88M-KE1K520[]	156.5	55	111.5	22	77.5	136.5
R88M-KE2K020[]	174	55	129	22	95	154
R88M-KE3K020[]	209	65	164	24	127	189
R88M-KE1K020[]-B[]	167	55	122	22	60	147
R88M-KE1K520[]-B[]	184.5	55	139.5	22	77.5	164.5
R88M-KE2K020[]-B[]	202	55	157	22	95	182
R88M-KE3K020[]-B[]	237	65	192	24	127	217

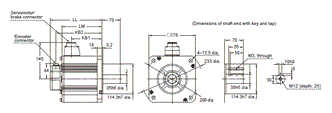

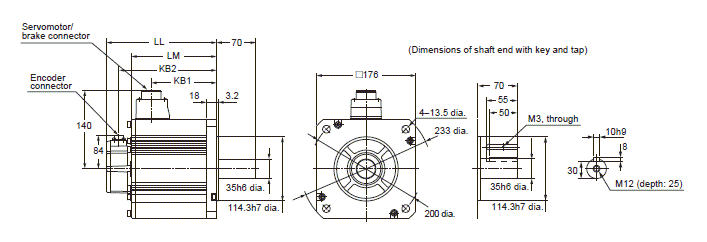

4kW/5kW

Without brake

• R88M-KE4K020H(-S2)

• R88M-KE5K020H(-S2)

With brake

• R88M-KE4K020H-B(S2)

• R88M-KE5K020H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	KB1	KB2
R88M-KE4K020[]	178	133	96	158
R88M-KE5K020[]	197	152	115	177
R88M-KE4K020[]-B[]	207	162	96	187
R88M-KE5K020[]-B[]	226	181	115	206

1,000 r/min Servomotors (200 VAC)

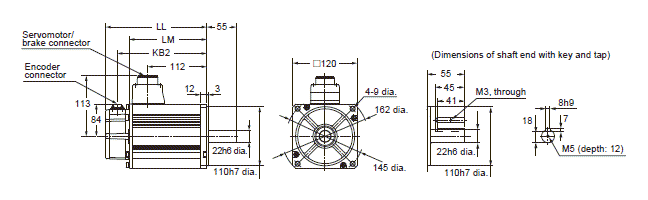

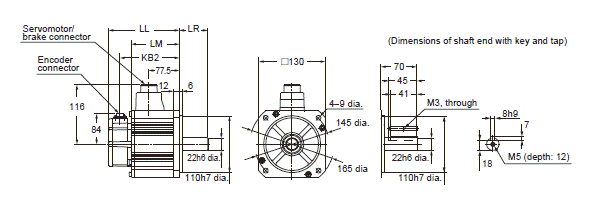

900W

Without brake

• R88M-KE90010H(-S2)

With brake

• R88M-KE90010H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	KB2
R88M-KE90010[]	156.5	111.5	136.5
R88M-KE90010[]-B[]	184.5	139.5	164.5

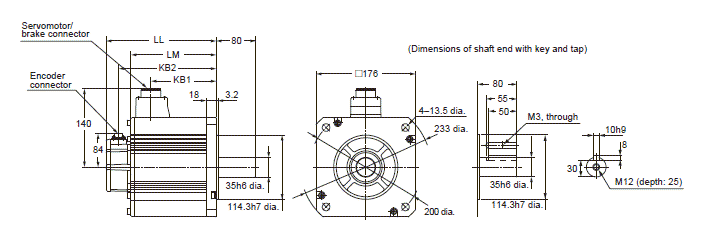

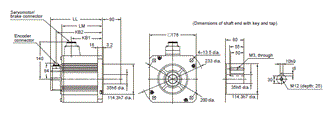

2kW/3kW

Without brake

• R88M-KE2K010H(-S2)

• R88M-KE3K010H(-S2)

With brake

• R88M-KE2K010H-B(S2)

• R88M-KE3K010H-B(S2)

Model	Dimensions (mm)
Model	LL	LM	KB1	KB2
R88M-KE2K010[]	164.5	119.5	82.5	144.5
R88M-KE3K010[]	210.5	165.5	128.5	190.5
R88M-KE2K010[]-B[]	193.5	148.5	82.5	173.5
R88M-KE3K010[]-B[]	239.5	194.5	128.5	219.5

Note: The standard models have a straight shaft. A model with a key and tap is indicated by adding “S2” to the end of the model number. Models with an oil seal are indicated with O at the end of the model number. The motor dimensions do not change.

last update: August 6, 2014
