A3P (Super Luminosity Type)

Lighted Pushbutton Switch (Square) Ultra Bright LED Type

Large Square-bodied Lighted Pushbutton Switches New models added with Ultra LEDs.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: October 15, 2013

(Unit: mm)

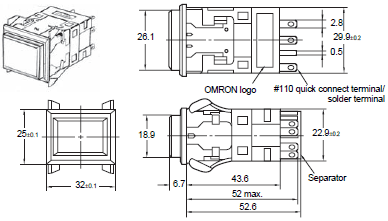

A3PJ (Rectangular) Models

A3P (Super Luminosity Type) Dimensions 1

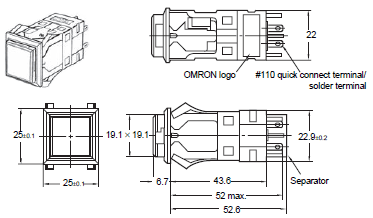

A3PA (Square) Models

A3P (Super Luminosity Type) Dimensions 2

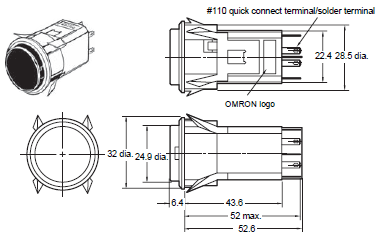

A3PT (Round) Models

A3P (Super Luminosity Type) Dimensions 3

Panel Cutout

(If you use a Switch Guard or Seal Cover, refer to Switch and Guard Mounting Dimensions or Seal Cover Mounting Dimensions in the A3P datasheet.)

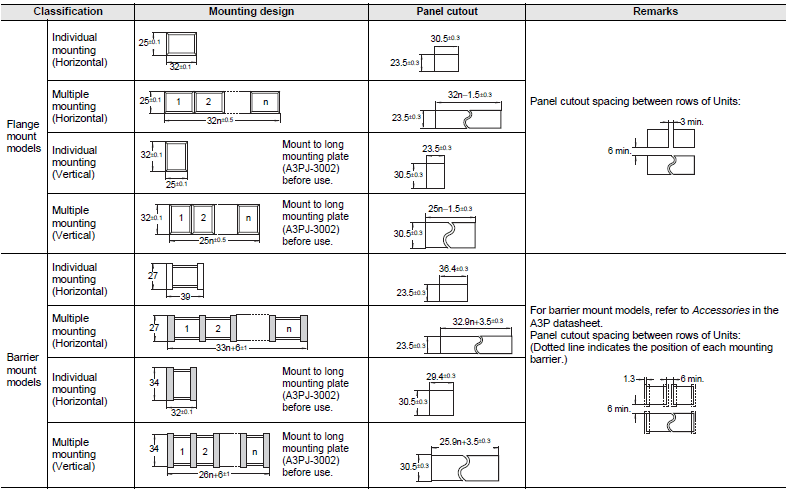

A3PJ (Rectangular) Models

A3P (Super Luminosity Type) Dimensions 5

Note:
1. n: Number of Units
2. Recommended panel thickness: 1 to 5 mm
3. Mount the panel before mounting the Switch Guard.
4. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.

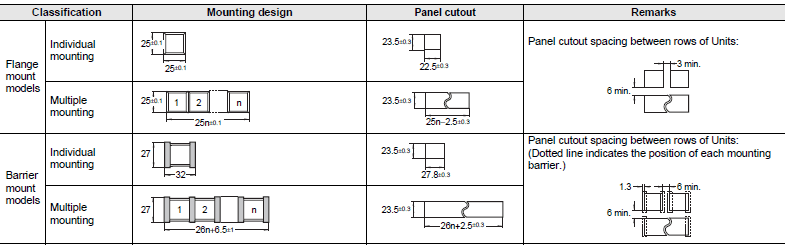

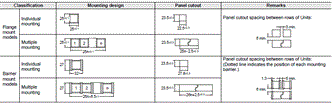

A3PA (Square) Models

A3P (Super Luminosity Type) Dimensions 6

A3PT (Round) Models

A3P (Super Luminosity Type) Dimensions 7

Note:
1. Recommended panel thickness: 1 to 5 mm
2. If the panel is to be finished (e.g., coated), make sure that the panel meets the specified dimensions after the coating.

last update: October 15, 2013
