G3R-I/O

I/O Solid State Relays

G3R-I/O

SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays

last update: November 8, 2021

(Unit: mm)

Relay

G3R-I/O

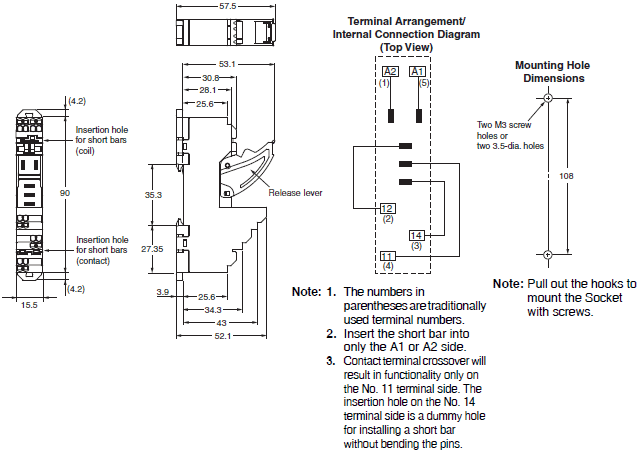

G3R-I/O Dimensions 2

Track/Surface Mounting Sockets

P2RF-05-PU

G3R-I/O Dimensions 3

P2RFZ-05-E

G3R-I/O Dimensions 4

P2RFZ-05

G3R-I/O Dimensions 5

P2RF-05

G3R-I/O Dimensions 6

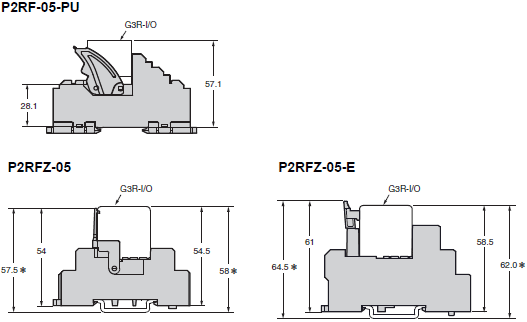

Mounting Height of Relay with Track/Surface Mounting Sockets

G3R-I/O Dimensions 7

* These are values when using the DIN track PFP-[]N.
Heights become higher by approximately 9 mm when using PFP-[]N2.

Back-connecting Sockets

P2R-05P (1-pole)

G3R-I/O Dimensions 9

P2R-057P (1-pole)

G3R-I/O Dimensions 10

P2R-05A (1-pole)

G3R-I/O Dimensions 11

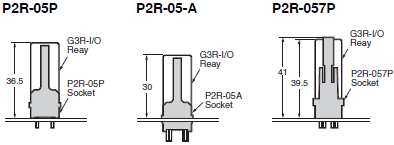

Mounting Height of Relay with Back-connecting Sockets

G3R-I/O Dimensions 12

Mounting Tracks

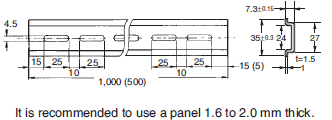

PFP-100N, PFP-50N

G3R-I/O Dimensions 14

PFP-100N2

G3R-I/O Dimensions 15

End Plate

PFP-M

G3R-I/O Dimensions 16

Spacer

PFP-S

G3R-I/O Dimensions 17

Mounting Plate

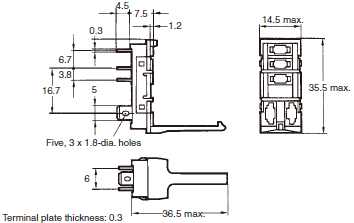

P2R-P

G3R-I/O Dimensions 18
