Industrial Automation
Accessories 61F
Connecting Sockets, Mounting Brackets, DIN Rails
Durable, Easy-to-handle Connecting Sockets and Mounting Brackets
Related Contents
Application Solutions
last update: October 15, 2014
(Unit: mm)
Track-mounted Sockets

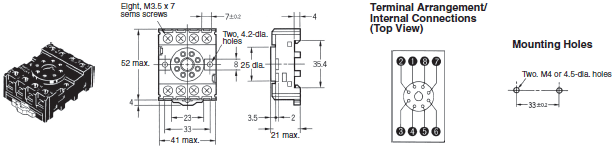

PF083A-E

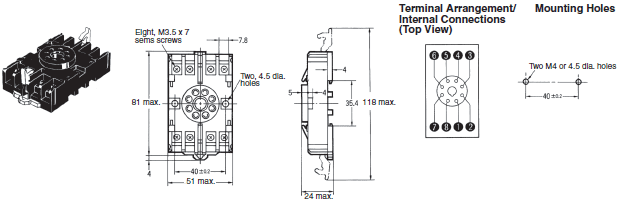

8PFA

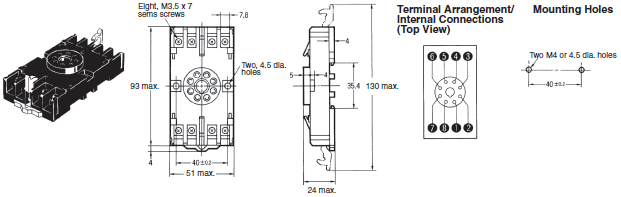

8PFA1

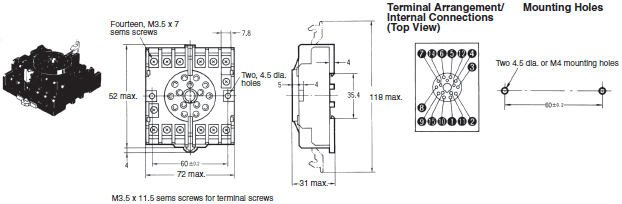

14PFA

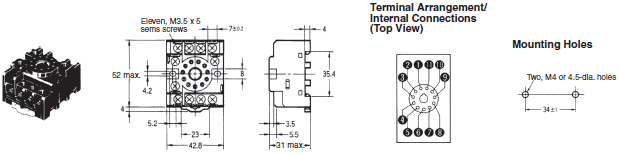

PF113A-E
Back-connecting Sockets

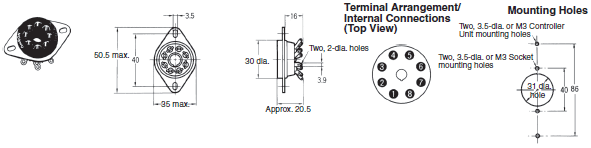

PL08

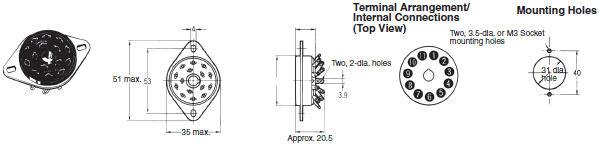

PL11

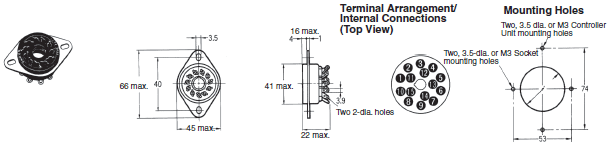

PL15
Mounting Brackets
When the 61F-G1P/-G2P/-IP/-UHS/-HSL is mounted using a Track-mounted Socket, the Switch is held secure by the hooks on the mounting Socket.
61F-GP-N8, 61F-APN2
To mount to the PF083A-E Track-mounted Socket, use the enclosed PFC-N8 Mounting Bracket.
PFC-N8
61F-GP-N, 61F-GPN-BT/-BC
To mount to the PF113A-E Track-mounted Socket, use the enclosed PFC-N8 Mounting Brackets.
PFC-N8
To mount to the PL11 Back-connecting Socket, use the PHC-5 Mounting Brackets.
PHC-5
61F-03B, -04B
To mount to the PF113A-E Track-mounted Socket, use the PFC-A1 Mounting Brackets.
PFC-A1
To mount to the PL11 Back-connecting Socket, use the PLC Mounting Brackets.
PLC
DIN Track Mounting Accessories
DIN Track
PFP-100N
PFP-50N
DIN Track
PFP-100N2
Note: 1. The PFP-100N is 15 mm on both ends, while the PFP50N is 15 mm on one end and 5 mm on the other end.
2. Indicates total DIN Track length.
1 m: PFP-100N
50 cm: PFP-50N
1 m: PFP-100N2
2. Indicates total DIN Track length.
1 m: PFP-100N
50 cm: PFP-50N
1 m: PFP-100N2
End Plate
PFP-M
Spacer
PFP-S
