G9SX-GS

Safety Guard Switching Unit

G9SX-GS

A Safety Measure for Hazardous Operations That Does Not Lower Productivity

(Unit: mm)

Terminal Arrangement

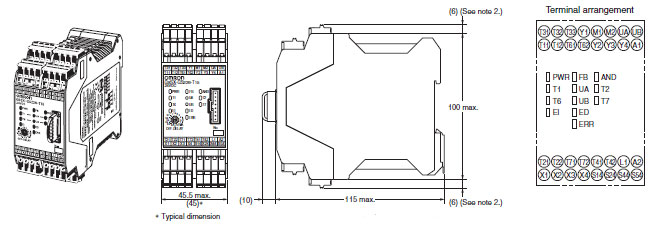

Safety Guard Switching Unit
G9SX-GS226-T15-[]

G9SX-GS Dimensions 2

Note: 1. Above outline drawing is for -RC terminal type.
           2. For -RC terminal type only.

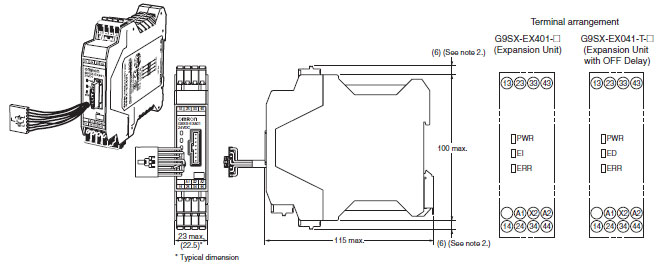

Expansion Unit
G9SX-EX401-[]
Expansion Unit (OFF-delayed Model)
G9SX-EX041-T-[]

G9SX-GS Dimensions 3

Note: 1. Above outline drawing is for -RC terminal type.
           2. For -RC terminal type only.
