A165E
Emergency Stop Switch (16-dia.)
Separate Construction with Minimal Depth
Related Contents
Application Solutions
last update: April 1, 2024
List of Models
| Diameter of
Operation Unit |
Function | Model | Shape | |
|---|---|---|---|---|
| 30-mm models
40-mm models |
Push-Lock,
turn-reset |
A165E | Separate construction |
(30-mm model) |
| A165E-[]-03U | One-piece construction |
(30-mm model) |
||

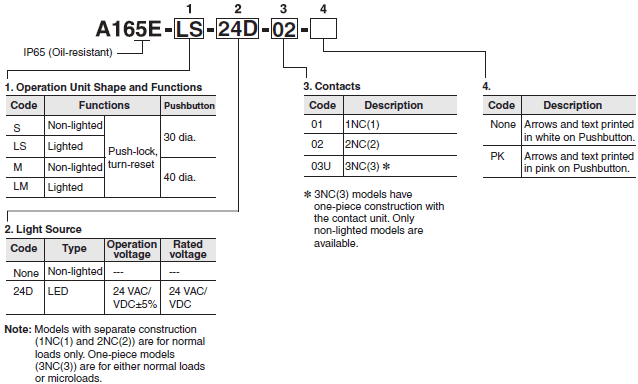

Model Number Legend (Completely Assembled)
Shipped as a set that includes the Operation Unit and light source.
List of Sets
| Illumination | Rated voltage | Pushbutton
color |
Pushbutton
size |
Terminal | Contact
form |
Model |
|---|---|---|---|---|---|---|
| LED | 24 VAC/VDC | Red | 30 dia. | Solder terminal | 1NC(1) | A165E-LS-24D-01 |
| A165E-LS-24D-01-PK | ||||||
| 2NC(2) | A165E-LS-24D-02 | |||||
| A165E-LS-24D-02-PK | ||||||
| Non-lighted | --- | 1NC(1) | A165E-S-01 | |||
| A165E-S-01-PK | ||||||
| 2NC(2) | A165E-S-02 | |||||
| A165E-S-02-PK | ||||||
| LED | 24 VAC/VDC | 40 dia. | 1NC(1) | A165E-LM-24D-01 | ||
| A165E-LM-24D-01-PK | ||||||
| 2NC(2) | A165E-LM-24D-02 | |||||
| A165E-LM-24D-02-PK | ||||||
| Non-lighted | --- | 1NC(1) | A165E-M-01 | |||
| A165E-M-01-PK | ||||||
| 2NC(2) | A165E-M-02 | |||||
| A165E-M-02-PK | ||||||
| Non-lighted | --- | 30 dia. | 3NC(3) | A165E-S-03U | ||
| A165E-S-03U-PK | ||||||
| 40 dia. | A165E-M-03U | |||||
| A165E-M-03U-PK |
List of Sets (in Different Colors)
| Illumination | Pushbutton color * | Pushbutton size | Terminal | Contact form | Model |
|---|---|---|---|---|---|
| Non-lighted | Yellow | 30 dia. | Solder terminal | 1NC(1) | A165E-SY-01 |
| Gray | --- | ||||
| Yellow | 2NC(2) | A165E-SY-02 | |||
| Gray | A165E-SGR-02 | ||||
| Yellow | 3NC(3) | A165E-SY-03U | |||
| Gray | A165E-SGR-03U |
* Models with yellow or gray pushbutton colors cannot be used as emergency switches.
Individual Parts (for Switches with Separate Construction)
Operation Units
| Appearance | Illumination | Model | |
|---|---|---|---|
| 30 dia. |  |
Non-lighted | A165E-S |
| A165E-S-PK | |||
| Lighted | A165E-LS | ||
| A165E-LS-PK | |||
| 40 dia. |  |
Non-lighted | A165E-M |
| Lighted | A165E-LM | ||
Lamps
| Appearance | LED color | Rated voltage | Model | |
|---|---|---|---|---|
 |
Red | Bright | 5 VDC | A16-5DSR |
| 12 VAC/VDC | A16-12DSR | |||
| 24 VAC/VDC | A16-24DSR | |||
Switches
| Appearance | Illumination | Contact form | Model |
|---|---|---|---|
 |
Non-lighted | 1NC(1) | A165E-01 |
| 2NC(2) | A165E-02 | ||
| Lighted | 1NC(1) | A165E-01L | |
| 2NC(2) | A165E-02L |
Switch Units
| Appearance | Illumination | Contact form | Model |
|---|---|---|---|
 |
Lighted | 1NC(1) | A165E-R-24D-01 |
| 2NC(2) | A165E-R-24D-02 |
Accessories (Order Separately)
| Item | Appearance | Type | Model | Precautions |
|---|---|---|---|---|
| Yellow Plate |
 |
Yellow, 45 dia. | A16Z-5070 | Use this as an emergency stop nameplate. |
| Panel Plug |
 |
Round | A16ZT-3003 | Used for covering the panel cutouts for future
panel expansion. Degree of protection: IP40 Color: Black |
| Tightening Tool |
 |
--- | A16Z-3004 | Useful for repetitive mounting. Be careful not to
tighten excessively. |
| Extractor |
 |
A16Z-5080 | Convenient for extracting the Switch and Lamp. | |
