E2E (Small-diameter)
Small-diameter Proximity Sensor
Ultra small size, but surprisingly easy installation!
Related Contents
Application Solutions
last update: May 8, 2017
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors
Pre-wired Models (Shielded)
Mounting Hole Dimensions

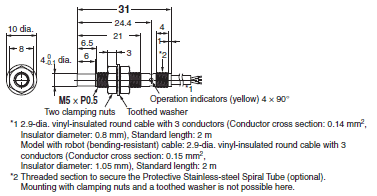

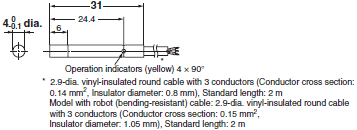

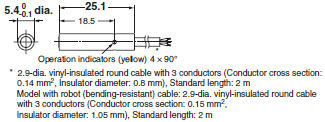

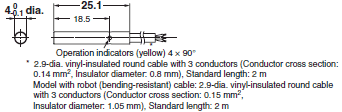

E2E-C03SR8-WC-[][]
E2E-C04S12-WC-[][]
E2E-C05S01-WC-[][]

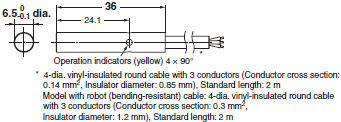

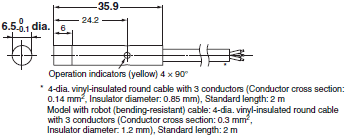

E2E-C06S02-WC-[][]

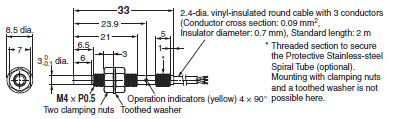

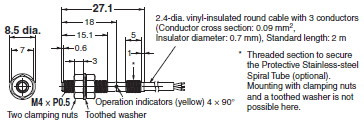

E2E-S04SR8-WC-[][]

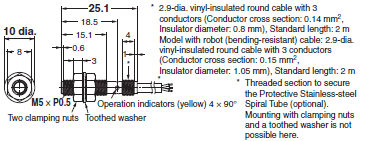

E2E-S05S12-WC-[][]
M8 Pre-wired Connector Models (0.3 m) (Shielded)
E2E-C03SR8-CJ-[][]
E2E-C04S12-CJ-[][]
E2E-C06S02-CJ-[][]

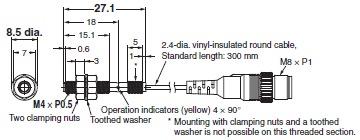

E2E-S04SR8-CJ-[][]

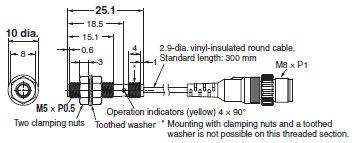

E2E-S05S12-CJ-[][]
M8 Connector Models (Shielded)
E2E-C04S12-MC-[][]
E2E-C06S02-MC-[][]
E2E-S05S12-MC-[][]
Pre-wired Models (Unshielded)
Mounting Hole Dimensions
E2E-C03N02-WC-[][]
E2E-C04N03-WC-[][]
E2E-C06N04-WC-[][]
E2E-S04N02-WC-[][]
E2E-S05N03-WC-[][]
M8 Pre-wired Connector Models (0.3 mm) (Unshielded)
E2E-C03N02-CJ-[][]
E2E-C04N03-CJ-[][]
E2E-C06N04-CJ-[][]

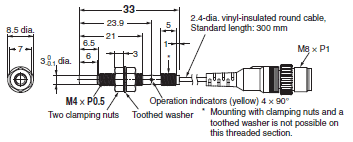

E2E-S04N02-CJ-[][]

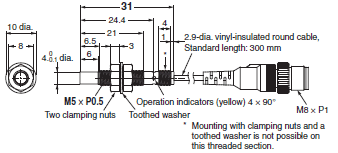

E2E-S05N03-CJ-[][]
M8 Connector Models (Unshielded)
E2E-C04N03-MC-[][]
E2E-C06N04-MC-[][]
E2E-S05N03-MC-[][]
Accessories (Sold Separately)
Mounting Brackets
Y92E-SC03 (3-dia. block)
Material: Iron
Y92E-SC04 (4-dia. block)
Material: Iron
Y92E-SC05 (5.4-dia. block)
Material: Iron
Y92E-SC06 (6.5-dia. block)
Material: Iron
Y92E-SS04 (for M4 screw)
Material: Iron
Y92E-SS05 (for M5 screw)
Material: Iron

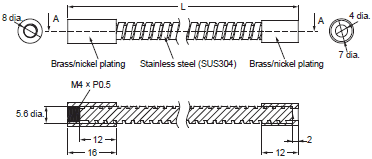

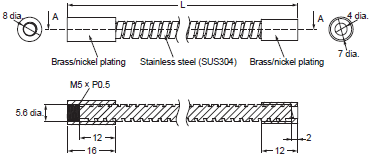

Protective Stainless-steel Spiral Tubes against Wire Breakage
Y92E-STS04-[]
L = 0.5 m (Y92E-STS04-05), 1 m (Y92E-STS04-10)
Y92E-STS05-[]
L = 0.5 m (Y92E-STS05-05), 1 m (Y92E-STS05-10)
Sensor I/O Connectors
XS3F-M32[]-3[][]-R

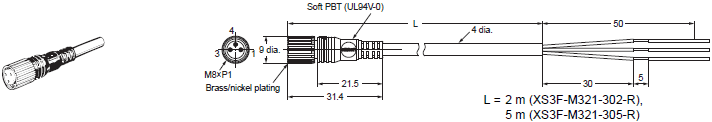

Straight

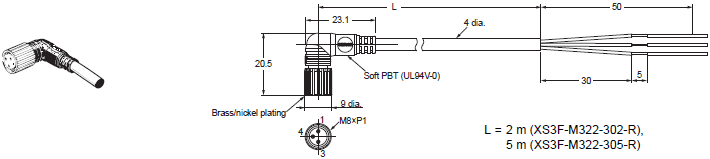

Right-angle
