E2EQ

Spatter-resistant Proximity Sensor

E2EQ

Spatter-resistant Fluororesincoated Proximity Sensor

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Pre-wired Models

Long Sensing-distance Models

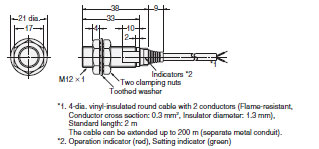

E2EQ-X4X1

E2EQ Dimensions 4

E2EQ-X8X1

E2EQ Dimensions 5

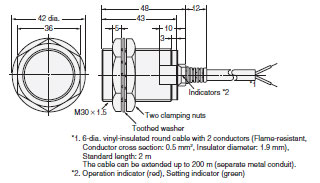

E2EQ-X15X1

E2EQ Dimensions 6

Standard Models

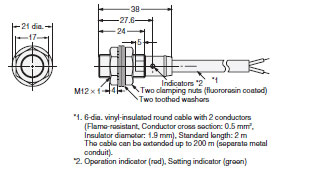

E2EQ-X3D1

E2EQ Dimensions 8

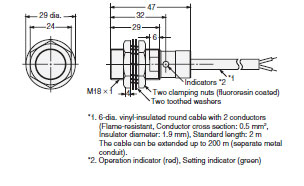

E2EQ-X7D1

E2EQ Dimensions 9

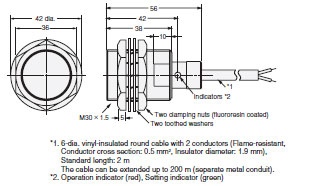

E2EQ-X10D1

E2EQ Dimensions 10

Pre-wired Connector Models

Long Sensing-distance Models

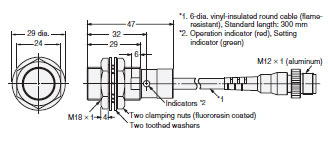

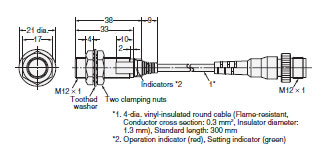

E2EQ-X4X1-M1(T)J

E2EQ Dimensions 13

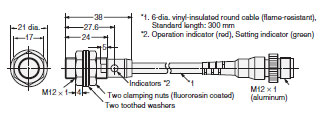

E2EQ-X8X1-M1(T)J

E2EQ Dimensions 14

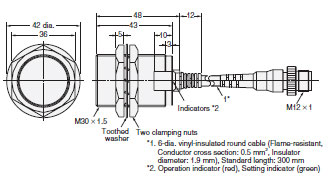

E2EQ-X15X1-M1(T)J

E2EQ Dimensions 15

Standard Models

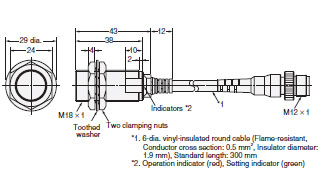

E2EQ-X3D1-M1(T)GJ

E2EQ Dimensions 17

E2EQ-X7D1-M1(T)GJ

E2EQ Dimensions 18

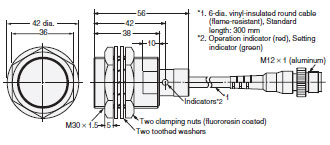

E2EQ-X10D1-M1(T)GJ

E2EQ Dimensions 19

Mounting Hole Dimensions



E2EQ Dimensions 20
