MicroHAWK V430-F / V420-F

Autofocus Multicode Reader

MicroHAWK V430-F / V420-F

Autofocus to read codes at different distances.

MicroHAWK V430-F

Mounting Options

Appearance Type Part Number
3702_lu_1_1 L Bracket Adjustable Angle Mounting Kit V430-AM0
3702_lu_1_2 ¼-20 Camera Mounting Block Kit V430-AM1
3702_lu_1_3 4” (102 mm) Ram Mount Stand V430-AM2
3702_lu_1_4 APG Pan and Tilt Camera Mount V430-AM3
3702_lu_1_5 Nylon Screw and Washer Electrical Isolation Mounting Kit V430-AM4
3702_lu_1_6 MS-4 / MINI to V/F4XX-F Adapter Plate V430-AM5
3702_lu_1_7 Smart Ring Light to V/F4XX-F Mounting Bracket V430-AM6
3702_lu_1_8 QX / Vision HAWK to V/F4XX-F Adapter Plate V430-AM7

Optics Options

Appearance Type Part Number
3702_lu_2_1 Front Window Installation Kit V430-AF0
3702_lu_2_2 Diffuser Installation Kit V430-AF1
3702_lu_2_3 Polarizer Installation Kit V430-AF2
3702_lu_2_4 Right Angle Mirror Installation Kit V430-AF3
3702_lu_2_5 YAG Filter Installation Kit V430-AF4
3702_lu_2_6 ESD-Safe Window Installation Kit V430-AF5
3702_lu_2_7 Red Filter Installation Kit V430-AF6
3702_lu_2_8 Blue Filter Installation Kit V430-AF7

Lighting Options

Appearance Type Part Number
3702_lu_3_1 Red Light Installation Kit V430-ALR
White Light Installation Kit V430-ALW
Blue Light Installation Kit V430-ALB
IR Light Installation Kit V430-ALI

Optics Options

Product Appearance Type Part Number
V430-F Window Kits
3702_lu_4_1
3702_lu_4_2 Front Window Installation Kit V430-AF0R
3702_lu_4_3 Diffuser Installation Kit V430-AF1R
3702_lu_4_4 Polarizer Installation Kit V430-AF2R

Lighting Options

Product Appearance Type Part Number
V430-F Ring Light Kits
3702_lu_5_1
3702_lu_5_2 Red Ring Light Installation Kit V430-ALRR
White Ring Light Installation Kit V430-ALWR
Blue Ring Light Installation Kit V430-ALBR
IR Ring Light Installation Kit V430-ALIR

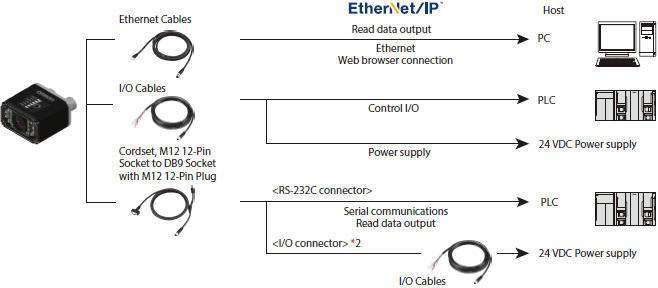

Wiring Options

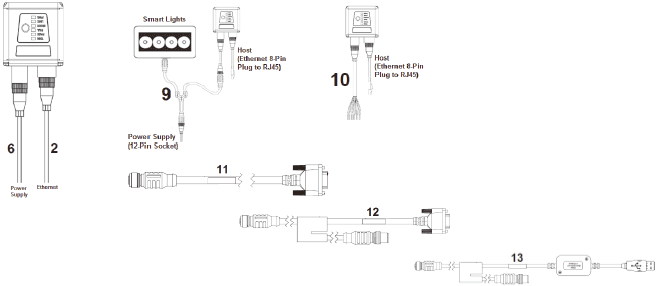

MicroHAWK V430-F / V420-F Lineup 7

Drawing
Reference
Appearance Category Length / Spec Part Number
2 3702_lu_7_1 Ethernet Communication Cables - Straight
Connectors
M12 Plug on Camera to RJ45 Connector
1 Meter V430-WE-1M
3 Meters V430-WE-3M
5 Meters V430-WE-5M
3702_lu_7_2 Ethernet Communication Cables - Right
Angle M12 Connectors*
M12 Plug on Camera to RJ45 Connector
3 Meters - Right
Angle Up*
V430-WELU-3M
3 Meters - Right
Angle Down*
V430-WELD-3M
3 3702_lu_7_3 Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout module for
common IO signals and power.
1 Meter V430-WQ-1M
M12 Socket to M12 Plug, with Power Filter 300 mm V430-WQF-1M
Camera to QX-1 Interconnect Cables
M12 Socket to M12 Plug
QX-1 is used as breakout module for
common IO signals and power.
3 Meters V430-WQ-3M
5 Meters V430-WQ-5M
4 3702_lu_7_4 QX-1 Interconnect Module - Power, Trigger,
Smart Light Control Breakout
98-000103-02
5 3702_lu_7_5 QX-1 Photo Sensor, M12 4-Pin Plug, NPN 2 Meters - Light
ON/Dark ON
99-9000016-01
3702_lu_7_6 QX-1 Field-Wireable M12 4-Pin Plug for Any
Trigger Source or Photo Sensor
Screw Terminals 98-9000239-01
6 3702_lu_7_7 Power Supply, 100-240VAC, +24VDC, M12
12-Pin Socket
1 Meter
US/Euro Plug
97-000012-01
7 3702_lu_7_8 QX-1 M12 to Smart Light Power and Strobe
Control Cables
M12 Plug on QX-1 to 5 Pin Socket on light
3 Meters -
Continuous Power
61-000204-02
3 Meters - Strobe
Control
61-000218-02
8 3702_lu_7_9 Omron Microscan Smart Light Series Integrated Power
and Strobe Control
Module
See Omron Microscan
Smart Light Offering -
Ring, DOAL, Large
Area Lighting

MicroHAWK V430-F / V420-F Lineup 8
MicroHAWK V430-F / V420-F Lineup 9

Alternate Wiring Options

MicroHAWK V430-F / V420-F Lineup 10

Drawing
Reference
Appearance Category Length/
Spec
Part Number
9 3702_lu_11_1 Y Cable, Camera/Power and Smart Light
Power (Continuous On)
1 Meter 61-9000135-01
Y Cable, Camera/Power and Smart Light
Strobe Control
1 Meter 61-9000137-01
10 3702_lu_11_2 M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB
3 Meters V430-W8-3M
M12 to Flying Leads Cable, with Power Filter V430-W8F-3M
M12 to Flying Leads Cable, Straight Power,
IO, RS-232, USB
5 Meters V430-W8-5M
M12 to Flying Leads Cable, with Power Filter V430-W8F-5M
3702_lu_11_3 M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB
3 Meters -
Right Angle
Up
V430-W8LU-3M
M12 to Flying Leads Cable Right Angle, with
Power Filter
V430-W8LUF-3M
M12 to Flying Leads Cable Right Angle
Power, IO, RS232, USB
3 Meters -
Right Angle
Down
V430-W8LD-3M
M12 to Flying Leads Cable Right Angle, with
Power Filter
V430-W8LDF-3M
11 3702_lu_11_4 M12 to RS-232 Breakout 1 Meter V430-WR-1M
3 Meters V430-WR-3M
12 3702_lu_11_5 Camera to QX-1 Interconnect Cables with
RS-232 Breakout
2.7 Meters V430-WQR-3M
13 3702_lu_11_6 Camera to QX-1 Interconnect Cables with
USB Keyboard Wedge Breakout
2.7 Meters V430-WQK-3M

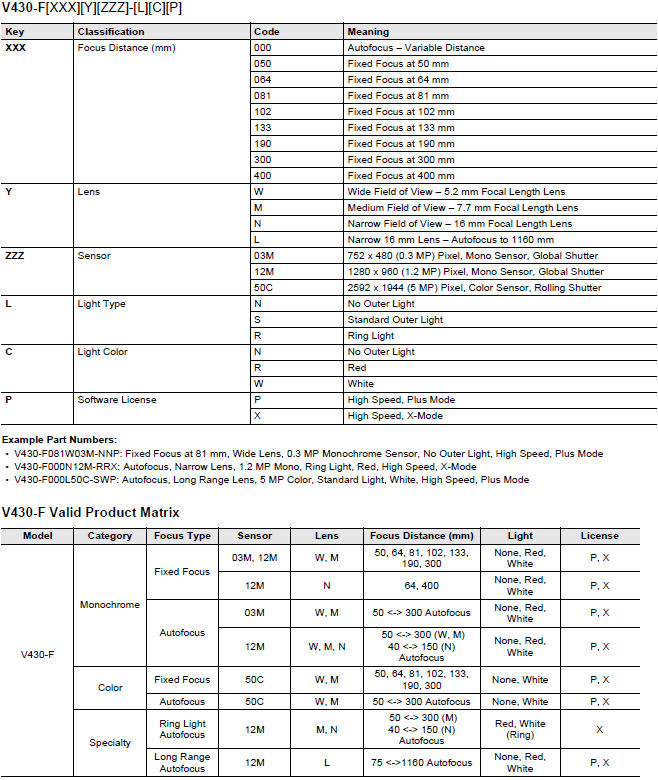

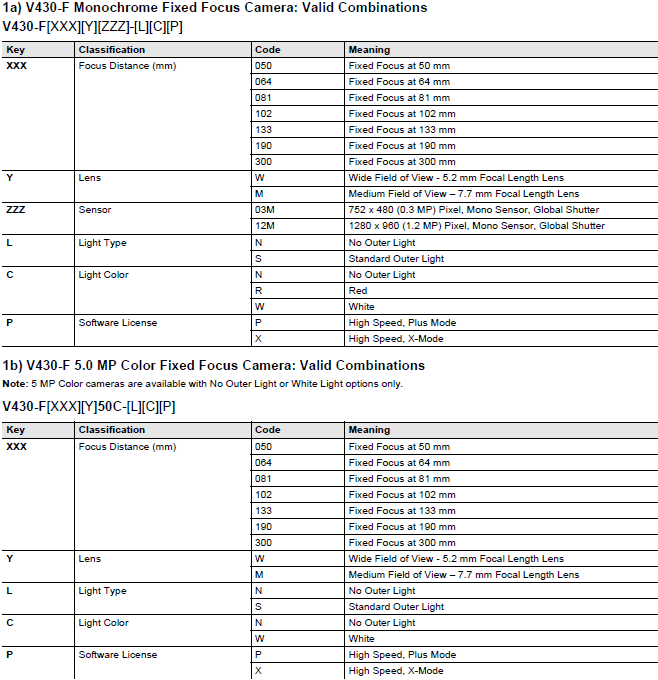

V430-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK V430-F / V420-F Lineup 11

V430-F Ordering Information

Categories:

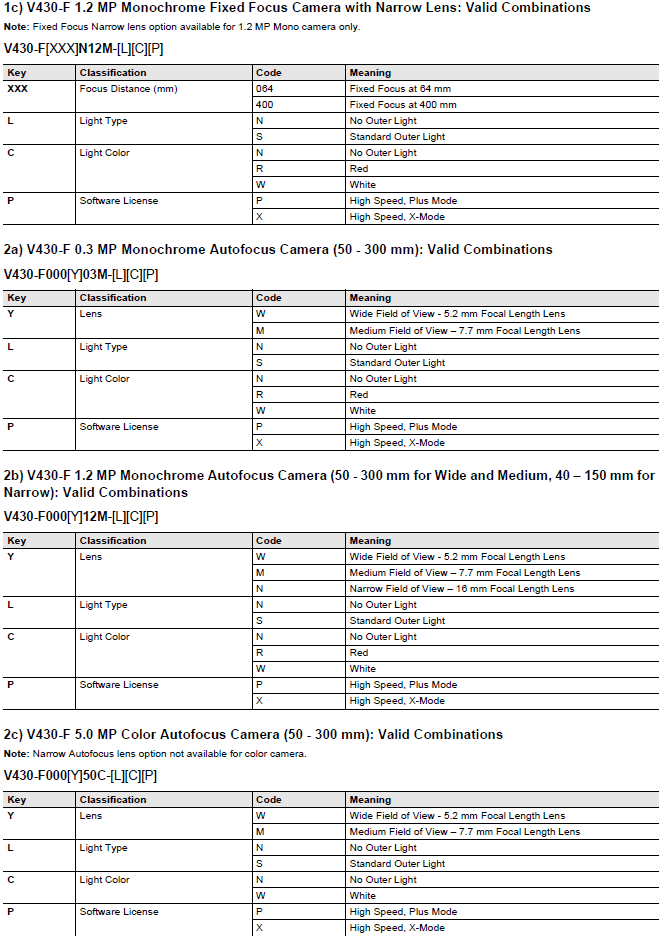

1. Fixed Focus Camera
     a.) V430-F Monochrome Fixed Focus Camera
     b.) V430-F Color Fixed Focus Camera
     c.) V430-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
     a.) V430-F 0.3 MP Monochrome Autofocus Camera (50 - 300 mm)
     b.) V430-F 1.2 MP Monochrome Autofocus Camera (50 - 300 mm for Wide and Medium Lens, 40 - 150 mm for Narrow
          Lens)
     c.) V430-F Color Autofocus Camera (50 - 300 mm)

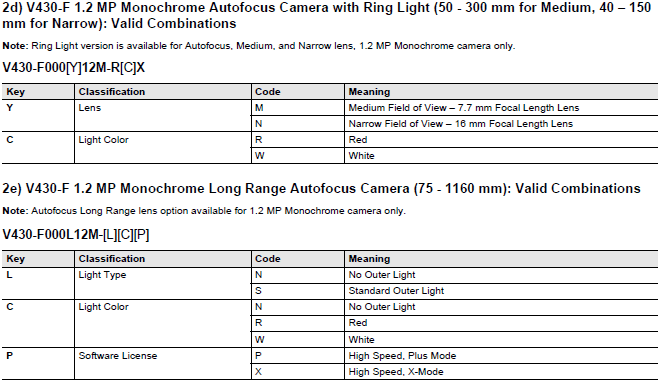

     d.) V430-F 1.2 MP Monochrome Autofocus Camera with Ring Light (50 – 300 mm for Medium Lens, 40 - 150 mm for
          Narrow Lens)
     e.) V430-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)

MicroHAWK V430-F / V420-F Lineup 12
MicroHAWK V430-F / V420-F Lineup 13
MicroHAWK V430-F / V420-F Lineup 14

MicroHAWK V420-F

Mounting Options

Appearance Type Part Number
3702_lu_1_1 L Bracket Adjustable Angle Mounting Kit V430-AM0
3702_lu_1_2 ¼-20 Camera Mounting Block Kit V430-AM1
3702_lu_1_3 4” (102 mm) Ram Mount Stand V430-AM2
3702_lu_1_4 APG Pan and Tilt Camera Mount V430-AM3
3702_lu_1_5 Nylon Screw and Washer Electrical Isolation Mounting Kit V430-AM4
3702_lu_1_6 MS-4 / MINI to V/F4XX-F Adapter Plate V430-AM5
3702_lu_1_7 Smart Ring Light to V/F4XX-F Mounting Bracket V430-AM6
3702_lu_1_8 QX / Vision HAWK to V/F4XX-F Adapter Plate V430-AM7

Optics Options

Appearance Type Part Number
3702_lu_2_1 Front Window Installation Kit V430-AF0
3702_lu_2_2 Diffuser Installation Kit V430-AF1
3702_lu_2_3 Polarizer Installation Kit V430-AF2
3702_lu_2_4 Right Angle Mirror Installation Kit V430-AF3
3702_lu_2_5 YAG Filter Installation Kit V430-AF4
3702_lu_2_6 ESD-Safe Window Installation Kit V430-AF5
3702_lu_2_7 Red Filter Installation Kit V430-AF6
3702_lu_2_8 Blue Filter Installation Kit V430-AF7

Lighting Options

Appearance Type Part Number
3702_lu_3_1 Red Light Installation Kit V430-ALR
White Light Installation Kit V430-ALW
Blue Light Installation Kit V430-ALB
IR Light Installation Kit V430-ALI

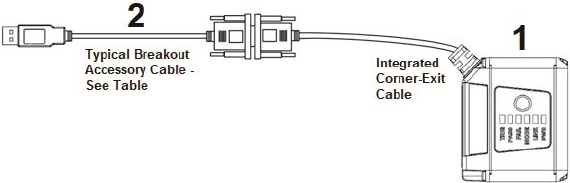

Wiring Options

MicroHAWK V430-F / V420-F Lineup 19

Drawing
Reference
Appearance Category Length/
Spec
Part Number
2 3702_lu_20_1 USB Breakout Cable 1 Meter V420-WUB-1M
3702_lu_20_2 Cable - USB Breakout with External Power
Input
1 Meter V420-WUX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC1
3702_lu_20_3 Cable - RS-232 Breakout (DB-15) and
External Power Input
1 Meter V420-WRX-1M
Power Supply 2 Meters 97-9000006-01
Kit - Cable and Power Supply V420-AC0
3702_lu_20_4 Cable - USB, IO, and Power Breakout 1 Meter V420-WU8X-1M
Power Supply 2 Meters 97-000011-02
Kit - Cable and Power Supply V420-AC2
3702_lu_20_5 Cable - RS-232, USB, IO, and Power
Breakout
1 Meter V420-WRU8X-1M
Power Supply 2 Meters 97-000011-02

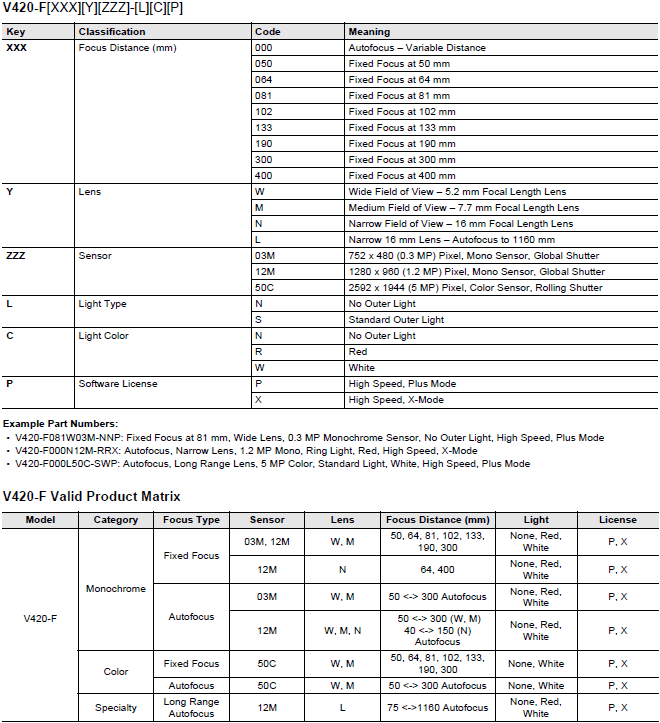

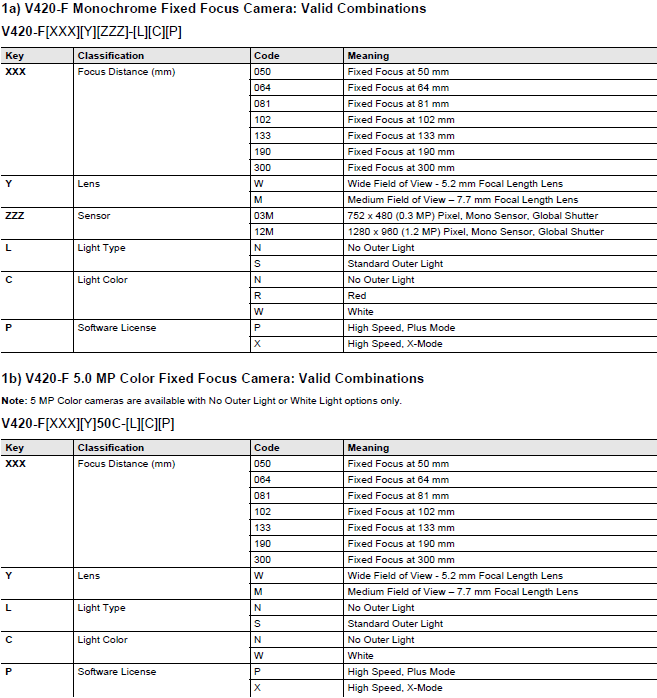

V420-F Part Number Structure

Use this legend when defining product part numbers. Please note that not all combinations of parameters are valid. For instance, color cameras are only available with white lighting, and 400 mm fixed focus is only available with UHD lenses. When ordering, use valid part numbers from the tables in the Ordering Information section only.

MicroHAWK V430-F / V420-F Lineup 20

V420-F Ordering Information

Categories:
1. Fixed Focus Camera
     a.) V420-F Monochrome Fixed Focus Camera
     b.) V420-F Color Fixed Focus Camera
     c.) V420-F 1.2 MP Monochrome Fixed Focus Camera with Narrow Lens
2. Autofocus Camera
     a.) V420-F 0.3 MP Monochrome Autofocus Camera (50 -300 mm)
     b.) V420-F 1.2 MP Monochrome Autofocus Camera (50 – 300 mm for Wide and Medium Lens, 40 – 150 mm for Narrow
          Lens)
     c.) V420-F Color Autofocus Camera (50 - 300 mm)

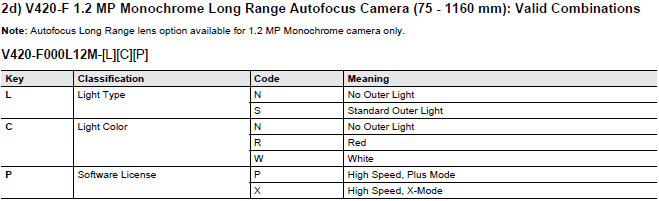

     d.) V420-F 1.2 MP Monochrome Long Range Autofocus Camera (75 - 1160 mm)

MicroHAWK V430-F / V420-F Lineup 21
MicroHAWK V430-F / V420-F Lineup 22
MicroHAWK V430-F / V420-F Lineup 23

Details of the form which isn't in this page see a Data Sheet (Q258-E1), please.
