Industrial Automation

E2E-[]-IL[]

IO-Link Proximity Sensor (Standard Models)

E2E-[]-IL[]

IO-Link Makes Sensor Level Information Visible and Solves the Three Major Issues at Manufacturing Sites! Standard Proximity Sensor.

last update: October 2, 2017

(Unit: mm)

Pre-wired Models

E2E-X3B4-IL[]

*1. 4-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.3 mm², Insulator diameter: 1.3 mm), Standard length: 2 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

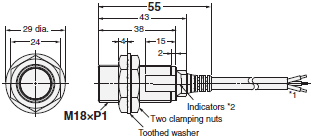

E2E-X7B4-IL[]

*1. 6-dia. vinyl-insulated round cable with 3 conductors
(Conductor cross section: 0.5 mm², Insulator diameter: 1.9 mm), Standard length: 2 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

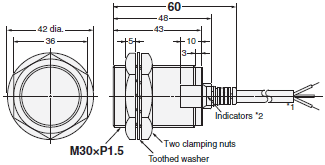

E2E-X10B4-IL[]

Pre-wired Connector Models

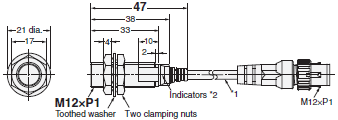

E2E-X3B4-M1TJ-IL[]

*1. 4-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

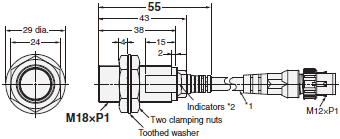

E2E-X7B4-M1TJ-IL[]

*1. 6-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

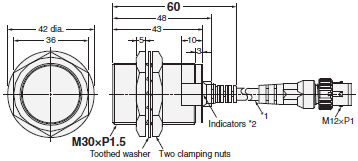

E2E-X10B4-M1TJ-IL[]

*1. 6-dia. vinyl-insulated round cable Standard length: 0.3 m
*2. Operation indicator (orange), stability indicator/communication indicator (green)

Mounting Hole Dimensions
