G2RV-SR

Slim I/O Relay

G2RV-SR

Our Value Design Products Increase the Value of Your Control Panels. Global standard size, low profile slim I/O relay with width 6.2 mm.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Related Contents

last update: November 10, 2022

(Unit: mm)

Slim I/O Relay + socket

Push-In Plus Terminal Block

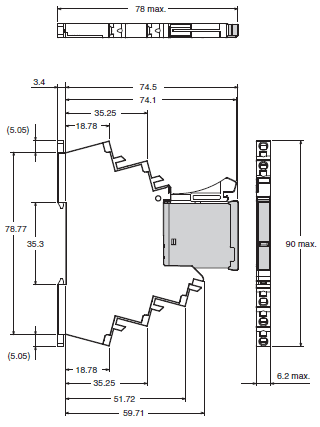

Models without latching lever (without test switch)
G2RV-SR500
G2RV-SR500-AP

G2RV-SR Dimensions 2

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Seet.

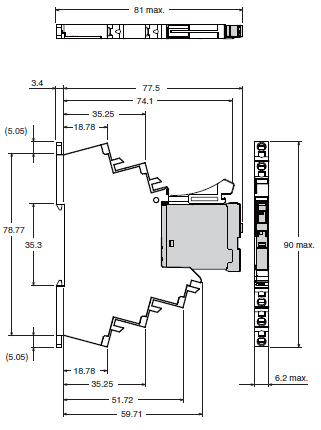

Models with latching lever (with test switch)
G2RV-SR501

G2RV-SR Dimensions 4

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

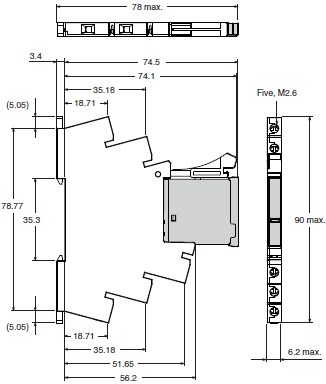

Screw terminal

Models without latching lever (without test switch)
G2RV-SR700
G2RV-SR700-AP

G2RV-SR Dimensions 7

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Models with latching lever (with test switch)
G2RV-SR701

G2RV-SR Dimensions 9

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

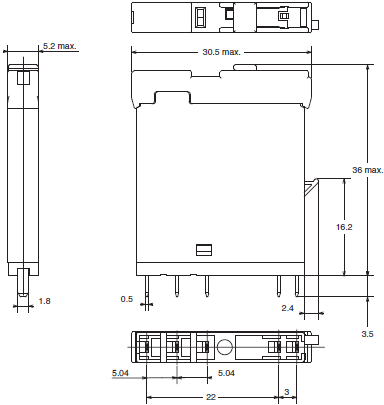

Relay for maintenance

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

G2RV-SR Dimensions 12

Models with latching lever (test switch)
G2RV-1-SI-G

G2RV-SR Dimensions 13

Accessories (order separately)

PLC interface unit

Push-IN
P2RVC-8-I-5(-1)
P2RVC-8-O-5(-1)

G2RV-SR Dimensions 16

Screw
P2RVC-8-I-7-1
P2RVC-8-O-7-1

G2RV-SR Dimensions 17

Except for PLC interface unit

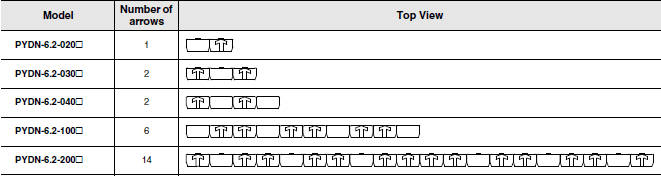

Short Bars
PYDN-6.2-[][] (6.2 mm)

G2RV-SR Dimensions 19
G2RV-SR Dimensions 20

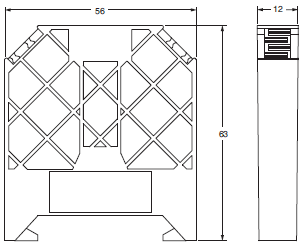

Separate Plate
XW5Z-EP12

G2RV-SR Dimensions 21

last update: November 10, 2022
